Ford E-150 Econoline Vehicle Speed Sensor Guide (1995-2002)
Solve erratic speedometer readings and harsh transmission shifting by understanding and choosing the right Vehicle Speed Sensor for your van.
- A bad VSS on a 1995-2002 E-150 commonly causes an erratic speedometer and harsh transmission shifting.
- The sensor is located on top of the rear differential housing and is an easy DIY replacement.
- Before replacing, check the wiring and connector for damage, as this can mimic sensor failure.
- A faulty VSS will often trigger the Check Engine Light with code P0500 and may also turn on the ABS light.
Is Your E-150 Econoline Acting Up? It Could Be the Vehicle Speed Sensor
If your 1995-2002 Ford E-150 Econoline has an erratic or dead speedometer, problems with cruise control, or the transmission is shifting harshly, a failing Vehicle Speed Sensor (VSS) is a likely culprit. This sensor 🎬 Watch how to test for a failed speed sensor. is a common failure point, but it's a straightforward and affordable part to replace. This guide will walk you through the symptoms, how to choose the right aftermarket part, and what to expect during replacement.
Where is the VSS Located?

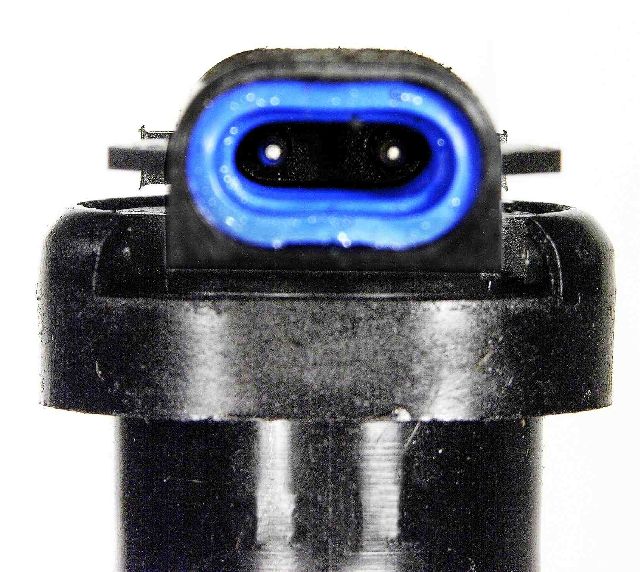

For most 1995-2002 E-150 vans, the main vehicle speed sensor is located on the top of the rear axle differential housing. It's held in by a single bolt and has an electrical connector. Some models may also have secondary speed sensors, like an Output Shaft Speed (OSS) sensor on the transmission, but the one on the differential is the primary sensor responsible for the speedometer reading and common shifting issues.
Known Issues: Recall on Speed Control System
Ford issued Safety Recall 05S28, which was later expanded, for a fire risk associated with the speed control deactivation switch. This switch could leak brake fluid, corrode, and cause a fire, even with the vehicle off. While this is not a recall on the VSS itself, the switch is part of the overall speed control system. The fix involved installing a fused jumper harness. It's crucial to ensure this recall has been performed on your vehicle. You can check with a Ford dealer or on the NHTSA website.
Choosing the Right Aftermarket VSS Brand
You don't need to buy an expensive OEM part from the dealer. Several reputable aftermarket brands offer quality replacements that meet or exceed original specifications. Based on mechanic and owner feedback, here's a breakdown of common brands.
- Premium Aftermarket (OEM Quality): Brands like Delphi and NGK (NTK) are often considered to be on par with original equipment quality. They are known for reliability and precise signal output. If you want the best fit and longest life, these are excellent choices.
- Standard Replacement: Standard Ignition (SMP) and Walker Products are well-regarded brands that offer a solid balance of quality and price. They are a dependable choice for daily driver repairs.
- Budget-Friendly: Brands like Dorman and Holstein offer cost-effective solutions. While Dorman is a massive supplier of a wide range of parts, their quality on electronic components can sometimes be inconsistent according to user forums. However, for a simple and common sensor like this, they are often a perfectly acceptable and affordable option.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $24.03 - $56.37 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Can I replace the VSS myself?
Yes, this is a very DIY-friendly job. The sensor is located on the rear differential and held by one 8mm or 10mm bolt. You'll need to safely raise and support the rear of the van, disconnect the electrical plug, remove the bolt, and pull the old sensor out. It can sometimes be stuck, so a gentle twist with pliers may be needed. The entire process usually takes less than 30 minutes.
🎬 See a step-by-step guide on changing the vehicle speed sensor.Is the ABS sensor the same as the Vehicle Speed Sensor?
On this specific vehicle, the sensor on the rear differential serves as both the VSS for the speedometer/transmission and the rear wheel speed sensor for the Anti-lock Brake System (ABS). A failure will often trigger both a Check Engine Light and an ABS light. Front wheels have their own separate ABS speed sensors.
🎬 Learn how to replace a front wheel speed sensor.What happens if I don't replace a bad VSS?
Driving with a bad VSS can be annoying and potentially unsafe. You'll have no speedometer, which can lead to speeding tickets. More importantly, the harsh and unpredictable transmission shifting can cause premature wear on transmission components. Your cruise control and ABS will also not function.
What tools do I need to replace the VSS?
You'll need basic hand tools: a jack and jack stands, wheel chocks, a socket wrench set (likely with a 10mm socket), and possibly a small pry bar or flathead screwdriver to help remove the old sensor if it's stuck. Applying a little clean motor oil to the O-ring of the new sensor will help it slide into place easily.
Helpful Videos
Technical Specifications
OEM Part Numbers: F7UZ9E731AA F85Z9E731AB DY1123
Mounts on rear differential housing. Typically secured with one 10mm bolt.
