1995-2002 Mazda Millenia Serpentine & Accessory Drive Belt Guide
Understand the unique belt systems for your Millenia's 2.5L or 2.3L Miller Cycle engine.
- The 2.5L V6 and 2.3L Miller Cycle V6 use different multi-belt systems; verify your engine before buying parts.
- A complete belt failure will immediately disable your car by stopping the alternator and water pump.
- For a reliable repair, replace the belt tensioners and idler pulleys along with the belts, especially on high-mileage vehicles.
- Quality aftermarket brands like Gates and Continental are excellent choices for the Millenia.
Understanding Your Millenia's Drive Belt System
The 1995-2002 Mazda Millenia is a unique car, and its engine belt system is no exception. Unlike many cars with a single serpentine belt, the Millenia uses a more complex multi-belt system that differs between its two available engines. It is critical to identify your engine before ordering parts.
- 2.5L V6 (KL-DE Engine): This engine uses two separate accessory drive belts. One belt typically drives the alternator and A/C compressor, while a second belt drives the power steering pump and water pump. To replace the inner belt (power steering/water pump), the outer belt must be removed first.
- 2.3L Miller Cycle V6 (KJ-ZEM Engine): This supercharged engine also uses a two-belt system. One belt is a serpentine belt that drives the power steering, supercharger, and water pump. A separate V-belt drives the alternator and A/C compressor.
Because these belts are made of rubber, they wear out over time from heat, friction, and flexing. Regular inspection is key to preventing a sudden failure that can leave you stranded.
Signs of a Failing Serpentine or Accessory Belt
When a drive belt is failing, it will give you clear warning signs. Don't ignore them, as a complete break will cause your car to stop running almost immediately.
Key Symptoms of a Bad Belt
- Squealing or Chirping Noises: This is the most common symptom, especially when starting the engine, turning the steering wheel, or running the A/C. It means the belt is slipping.
- Visible Cracks, Glazing, or Fraying: Look at the ribbed side of the belt. If you see multiple cracks, a shiny or glazed surface, or pieces of rubber missing, it's time for a replacement.
- Accessory Problems: Dimming headlights (failing alternator), difficulty steering (failing power steering), or a rapidly rising engine temperature (failing water pump) are all serious signs the belt is failing or has already broken.
Choosing the Right Aftermarket Belt
For a vehicle of this age, a high-quality aftermarket belt from a reputable brand is an excellent choice and often meets or exceeds the quality of the original part from the 1990s. Brands like Gates, Continental, and Dayco are well-regarded choices.
| Brand Tier | Brands | Description | Best For |
|---|---|---|---|
| Tier 1: Premium Quality | Gates, Continental | These brands are often original equipment (OEM) suppliers for many car manufacturers and are known for their durability and precise fit. They use high-quality EPDM rubber compounds that resist heat and cracking. | Millenia owners who want the best possible reliability and longevity, especially for the complex 2.3L Miller Cycle engine. |
| Tier 2: Quality Aftermarket | Dayco | Dayco is a well-known aftermarket brand that produces reliable and affordable belts. They are a solid choice for daily driving and offer a great balance of price and performance. | The 2.5L V6 owner looking for a dependable, budget-friendly replacement for routine maintenance. |
Pro Tip: Replace the Tensioners and Pulleys
The belt tensioners and idler pulleys are just as important as the belts themselves. The 2.5L engine uses manual tensioners that can be difficult to adjust correctly, while the 2.3L uses an automatic tensioner. If you're replacing a high-mileage belt, it is highly recommended to replace the tensioners and any idler pulleys at the same time. A worn pulley bearing can seize, destroying a brand-new belt instantly.
Frequently Asked Questions (FAQ)
Are there any recalls for the Mazda Millenia serpentine belt?
No, there are no specific recalls on the serpentine or accessory drive belts for the 1995-2002 Mazda Millenia. A recall was issued for a timing belt tensioner spring on some models, but this is a different part inside the engine.
How often should I replace the belts on my Millenia?
As a general rule, serpentine and accessory belts should be inspected at every oil change and replaced every 60,000 to 90,000 miles, or sooner if you see signs of wear like cracking or fraying. Given the age of the vehicle, if you don't know when the belts were last changed, it's safest to replace them.
Is this a difficult DIY job?
For the Mazda Millenia, this job is moderately difficult. The 2.5L engine uses manual tensioners which require careful adjustment to avoid squealing or putting too much stress on accessories. Access is tight, and the job often requires working from both the top of the engine bay and from underneath the car by removing the passenger-side wheel and splash shields.
Do I need special tools?
You will need a standard set of metric sockets and wrenches. For the 2.3L engine's automatic tensioner, a long-handled wrench or serpentine belt tool is needed to release the tension. For the 2.5L engine's manual tensioners, you will need wrenches (commonly 10mm and 17mm) to loosen the pulley and adjuster bolts.
Technical Specifications

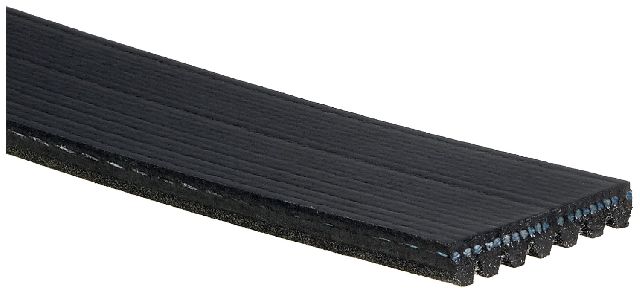

OEM Part Numbers: KJ02-15-907
The 1995-2002 Mazda Millenia uses a multi-belt system, not a single serpentine belt. The 2.5L V6 (KL-DE) uses two separate accessory drive belts with manual tensioners. The 2.3L supercharged V6 (KJ-ZEM) uses a serpentine belt for the supercharger/power steering/water pump and a separate belt for the A/C/alternator, utilizing an automatic tensioner for the main system.
