Pontiac Sunfire Engine Camshaft Position Sensor: A 1995-2002 Guide
If your Sunfire is stalling or won't start, the camshaft position sensor is a likely culprit.
- A failing camshaft sensor can cause dangerous stalling, a no-start condition, or a rough running engine.
- For this critical sensor, choose a high-quality aftermarket brand like Delphi or Standard Ignition over cheaper, generic options.
- The sensor's location and replacement difficulty vary significantly between the 2.2L and 2.4L engines.
- There are no active recalls for this specific part on the 1995-2002 Pontiac Sunfire.
Is Your Sunfire Running Rough? Check the Camshaft Sensor
A failing camshaft position sensor in a 1995-2002 Pontiac Sunfire can cause a range of frustrating problems. These issues often start small but can lead to your car leaving you stranded. Because this sensor is essential for engine timing, symptoms usually get worse over time. Ignoring them can lead to stalling in traffic, which is a serious safety risk.
Common Symptoms of Failure
When this sensor starts to go bad, your car will let you know. The most common signs include:
- Check Engine Light: This is often the first warning. You'll likely see codes such as P0340, P0341, or others in that series.
- Engine Stalling: The engine may shut off unexpectedly while you're driving or idling at a stoplight. This can be intermittent and sometimes happens more often when the engine is warm.
- Hard Starting or No Start: Your engine might crank but take a long time to start, or it may not start at all.
- Rough Idle: The car may shake, sputter, or vibrate when you're stopped.
- Poor Acceleration: The car feels sluggish and lacks power when you press the gas pedal.
- Reduced Fuel Economy: You may notice you're filling up the gas tank more often because the engine isn't running efficiently.
Engine Differences Matter
The 1995-2002 Sunfire came with different engines, mainly the 2.2L OHV and the 2.4L Twin Cam. The location and accessibility of the camshaft position sensor are very different between them. On the 2.2L engine, the sensor is located on the back of the engine block, near the oil filter, and can be very difficult to reach. On the 2.4L engine, it is typically on the cylinder head and is much easier to access. Know which engine you have before starting this repair.
Choosing the Right Aftermarket Part: Brand Quality Matters
When it comes to critical engine sensors, not all aftermarket brands are created equal. For a part like this that can cause your car to stall, it's not the place to cut corners. Owner experiences and mechanic recommendations strongly suggest avoiding generic, no-name sensors.
Brand Tiers for Your Sunfire
- Top Tier (OEM-Quality): Brands like Delphi and Standard Ignition (SMP) are highly recommended. Delphi was an original equipment supplier for GM, so their parts are made to factory specifications. Standard Ignition has a long reputation for producing reliable, well-tested sensors that perform like the original.

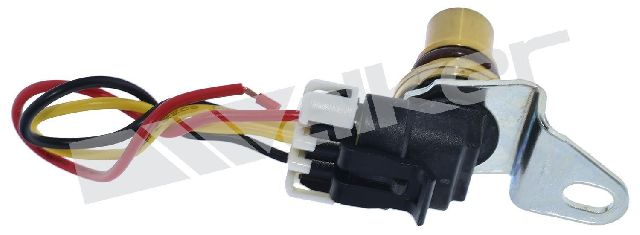

- Mid-Tier (Standard Aftermarket): Dorman is a common brand that offers a more budget-friendly option. However, reviews and mechanic feedback are often mixed, with some reporting success and others experiencing early failures or fitment issues. Brands like Walker Products also fall into this category as established aftermarket manufacturers.
- Economy Tier: These are the cheapest, often unbranded sensors found online. For a critical part like a camshaft sensor, these are best avoided. They have a high rate of being dead-on-arrival or failing within a short period, putting you right back where you started.
Pro Tip: Spending a little more on a quality sensor from a brand like Delphi or Standard Ignition is a good investment. It can save you from the headache of replacing the part again and the danger of your engine stalling unexpectedly.
Cost to Replace the Camshaft Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $22 - $114 |
| Shop Labor | $75 - $150 |
| Total Estimated Cost (Installed) | $97 - $264 |
Costs are estimates and can vary based on your location, vehicle, and the repair shop. Labor costs can be higher for the 2.2L engine due to the difficult location of the sensor.
Frequently Asked Questions (FAQ)
Can I drive my Sunfire with a bad camshaft position sensor?
It is not recommended. The risk of the engine stalling while driving, especially in traffic or at high speeds, is a significant safety hazard. It's best to get the part replaced as soon as possible.
Is this a difficult part to replace myself?
It depends on your engine. For the 2.4L Twin Cam, it's a relatively easy job for a DIYer with basic tools. For the 2.2L OHV engine, the sensor is in a very tight spot on the back of the engine, making it much more difficult. If you have the 2.2L engine and are not an experienced mechanic, you may want to leave this job to a professional.
Were there any recalls for this part?
No, there have been no specific recalls issued by the NHTSA for the engine camshaft position sensor on the 1995-2002 Pontiac Sunfire.
What do the trouble codes (P0340, P0341) mean?
These codes indicate that the engine computer (ECM) has detected a problem with the camshaft position sensor circuit. P0340 means there's a general malfunction in the circuit, while P0341 indicates the signal from the sensor is out of the expected range or not performing correctly. This could be the sensor itself, the wiring, or the connector.
Technical Specifications
OEM Part Numbers: 10456145

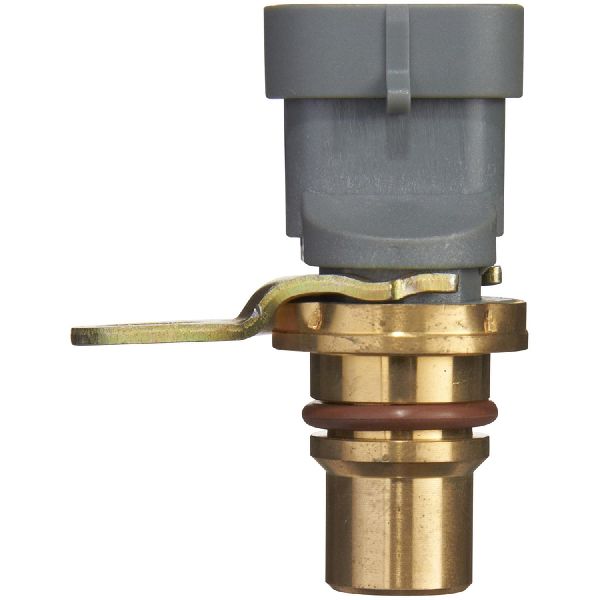

This is a 3-pin Hall Effect sensor that reads the position of the camshaft. The connector shape is typically oval.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
