Throttle Position Sensor (TPS) Guide for 1995-2003 Chevrolet Camaro
Solve common hesitation, stalling, and erratic shifting issues in your V6 or LS1 Camaro.
- A bad TPS commonly causes hesitation, stalling, and erratic automatic transmission shifting.
- For best results, choose a quality brand like ACDelco or Delphi, as they are often the original equipment manufacturer.
- Replacement is a very simple DIY job that takes less than 30 minutes with basic tools.
- No recalls have been issued by the NHTSA for the TPS on the 1995-2003 Camaro.
Is Your Camaro Stalling or Hesitating? It Could Be the TPS.
A failing Throttle Position Sensor on a 1995-2003 Camaro can cause many frustrating problems. Because the TPS gives the main computer critical information for fuel and transmission control, the symptoms can sometimes be confused with other issues. Owners often report sudden hesitation when accelerating, a rough or surging idle, and unexpected stalling. For cars with an automatic transmission, a bad TPS can lead to harsh or delayed shifts and may stop the torque converter from locking up at highway speeds. In some cases, the car might go into a 'limp mode' with very low power, and the Check Engine Light will almost certainly turn on.
🎬 Watch how to identify common symptoms and test for failure.Don't Ignore the Signs
While you can often still drive with a failing TPS, symptoms like stalling and unpredictable acceleration can be dangerous. It's best to diagnose and replace the sensor as soon as these problems appear to avoid being stranded or causing extra stress on your transmission.
Choosing the Right Aftermarket TPS for Your Camaro
When it's time to replace the TPS on your Camaro, you'll find several aftermarket brands available. They generally fall into three quality tiers. Choosing the right one depends on your budget and how you use your car.
Tier 1: OEM or Equivalent Brands
These brands are known to be original equipment manufacturers for GM or produce parts that meet or exceed GM's specifications. For a critical sensor like the TPS, sticking with these names is a smart investment for reliability and peace of mind.
- ACDelco: Often the original GM part, ACDelco offers both a 'GM Original Equipment' line and a 'Professional' aftermarket line. Both are excellent choices and the go-to for most owners who want factory performance.
- Delphi: Delphi was once part of GM and is a major OEM supplier. Their sensors are widely considered to be of the same quality as ACDelco and are a top-tier choice.
Tier 2: Quality Aftermarket Brands
These companies are well-known in the aftermarket and produce reliable parts that offer a good balance of quality and price. They are a solid choice for daily drivers and budget-conscious enthusiasts.
- Standard Motor Products (Standard Ignition): A long-standing, reputable brand that makes quality sensors.
- NGK/NTK: While famous for spark plugs, NGK's sensor line (NTK) is also well-regarded.
- Walker Products: A reliable manufacturer of fuel and engine management components.
Tier 3: Budget-Friendly Brands
These brands focus on providing the lowest-cost option. While they can work, forum discussions and mechanic reviews often point to a higher chance of early failure or out-of-the-box issues with budget sensors. They might be suitable for a temporary fix or if budget is the absolute primary concern.
- Dorman: Known for making a huge variety of parts, but quality can be inconsistent. Some mechanics prefer used OEM parts over new Dorman sensors.
- Replacement / True Tech / Global Parts: These are often house brands or re-boxed parts that prioritize low cost.
Pro Tip: For the 1995-1997 LT1 engines, especially if you have an aftermarket throttle body, you may need to slightly elongate the mounting holes on the new TPS to rotate it and achieve the correct idle voltage (around 0.5V-0.67V). This adjustment is critical for proper idle and performance.
Cost to Replace a Camaro Throttle Position Sensor
The cost for a new TPS is very reasonable, and since it's an easy DIY job for most owners, you can save a lot on labor.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket TPS | $24 - $98 |
| Shop Labor | $50 - $100 |
| DIY Replacement | Free (requires basic tools) |
Frequently Asked Questions (FAQ)
Do I need to calibrate or 'relearn' the new TPS?
Yes, a relearn procedure is recommended. After installing the new sensor, you may need to perform a simple process like turning the ignition on (without starting the engine) for a few seconds, then off, to allow the ECM to learn the new sensor's closed-throttle voltage. For some earlier models, manual adjustment may be needed to set the idle voltage correctly.
Can I just clean my old Throttle Position Sensor?
No, cleaning is not effective. The TPS is a sealed electronic sensor. Failure happens inside when the electrical contacts wear out, creating 'dead spots' in the voltage reading. Replacement is the only fix.
🎬 Learn more about TPS failure signs and typical repair costs.Where is the TPS located on my 1995-2003 Camaro?

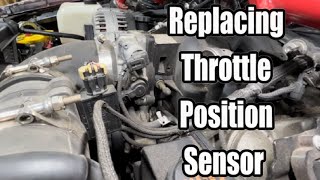

The TPS is located on the side of the throttle body, which is at the front of the intake manifold where the large air intake hose connects. It's a small, black plastic sensor held on by two Torx or Phillips screws.
Are there any recalls for the TPS on my Camaro?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls for the throttle position sensor on the 1995-2003 Chevrolet Camaro. Recalls for TPS issues on other GM vehicles do not apply to this generation of Camaro.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17111787 17069534
A 3-wire variable resistor sensor that mounts to the side of the throttle body. It translates the rotation of the throttle blade into a voltage signal for the ECM. Idle voltage is typically around 0.5V and wide-open throttle voltage is around 4.5V.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
