Ford Ranger A/C Clutch Cycle Switch Guide (1995-2003)
If your Ranger's A/C is blowing warm or the compressor won't kick on, the clutch cycle switch is a common and easy-to-fix culprit.
- A bad A/C clutch cycle switch is a very common reason for the A/C to fail on a 1995-2003 Ranger.
- Symptoms are usually a non-working compressor or a compressor that clicks on and off rapidly.
- This is an easy and cheap DIY repair; the switch is on a Schrader valve, so no refrigerant evacuation is needed.
- Before replacing, test the switch by jumping the connector; if the compressor runs, the switch is bad.
Symptoms of a Bad A/C Clutch Cycle Switch
When the A/C clutch cycle switch fails on a Ranger, the symptoms are usually straightforward. Because this switch is the gatekeeper for compressor operation, a failure here directly impacts your A/C's ability to blow cold air. Keep an eye out for these common signs:
- A/C Compressor Won't Turn On: This is the most common symptom. You'll turn on the A/C, the light on the dash will illuminate, but the compressor clutch never engages. The internal contacts of the switch can wear out, preventing power from ever reaching the clutch.
- Compressor Cycles On and Off Too Quickly: Known as "short cycling," you might hear the A/C clutch clicking on and off every few seconds. This can sometimes point to a faulty switch, though it is more often a sign of low refrigerant. The switch is what's responsible for the cycling, and if it's defective, it may have incorrect pressure trigger points.
- A/C Blows Cold, Then Warm: The switch might work intermittently, allowing the compressor to run for a bit before it cuts out unexpectedly. This can be caused by a failing switch or even an excessive air gap in the compressor clutch itself, which is a known issue on older Fords.
Choosing the Right Aftermarket Part
For a simple electrical switch like this, you don't always need to pay the premium for a dealership part. Aftermarket brands offer reliable quality, often for a fraction of the price. Here's a breakdown of your options:
| Brand Tier | Brands | Quality & Cost Assessment |
|---|---|---|
| OEM | Motorcraft | Motorcraft is Ford's official parts brand and the original equipment manufacturer (OEM). It's the benchmark for quality and fit, but also the most expensive option. For a critical, hard-to-replace part, OEM is often the safest bet. However, for an easily accessible switch like this, the extra cost may not be necessary. |
| Premium Aftermarket | Four Seasons | Four Seasons is a well-regarded aftermarket brand for A/C components. Forum discussions suggest that for simple parts like switches, their quality is often on par with OEM, sometimes even being made by the same supplier with just a different sticker. They offer a good balance of quality and value. |
| Standard Aftermarket | Global Parts Distributors (GPD) | GPD is a budget-friendly option. While many users have success with these parts, especially for common repairs, some reviews mention a higher chance of out-of-box failure compared to premium brands. For a part this inexpensive and easy to replace, it can be a calculated risk to save money. | 🎬 Learn more about GPD's manufacturing and quality standards.
Pro Tip: Before you replace the switch, consider jumping the connector with a small wire. Unplug the two-wire connector from the switch and use a paperclip or short piece of wire to connect the two terminals in the plug. If the A/C compressor kicks on and stays on, you've confirmed the switch is the problem. Do not run the system like this for more than a few seconds, as you are bypassing the safety feature.
🎬 Watch a quick demonstration of jumping the switch connector.Is This a DIY Job?
Yes, for most owners with basic tools, this is one of the easiest A/C repairs you can do. The switch is located on the A/C accumulator (a silver can-like component) on the passenger side of the engine bay. It simply unscrews. The system does not need to be evacuated because the switch is mounted on a Schrader valve, similar to a tire valve stem. You might hear a tiny hiss of refrigerant as you unscrew it, but it will seal itself off. The entire job takes less than 15 minutes.
Known Issues, Recalls, or TSBs
Searches for the 1995-2003 Ford Ranger did not reveal any specific recalls or Technical Service Bulletins (TSBs) from the NHTSA or in major forums directly related to the A/C clutch cycle switch itself. However, a common related issue on these trucks is an increased air gap on the A/C compressor clutch, which can mimic the symptoms of a bad switch. If a new switch doesn't solve the problem, this should be your next area of investigation.
🎬 See how to adjust the compressor clutch air gap.Frequently Asked Questions (FAQ)
Do I need to empty the refrigerant to change this switch?
No. On the 1995-2003 Ford Ranger, the A/C clutch cycle switch is mounted on a Schrader valve. This means you can unscrew the old switch and screw on the new one without losing your system's refrigerant charge.
My A/C compressor is clicking on and off very fast. Is it the switch?
It could be, but it's more likely that your system is low on refrigerant. This rapid cycling is the switch doing its job, turning the compressor off at very low pressure and back on as it equalizes, only to shut off again. Before replacing the switch for this symptom, have your system's pressure checked.
What's the difference between the clutch cycle switch and the high-pressure switch?
The clutch cycle switch (a low-pressure switch) is on the accumulator and protects the compressor from low refrigerant levels. The high-pressure switch is on the high-pressure side of the system and protects it from dangerously high pressures, which could cause lines to burst. They work together to keep the system operating in a safe pressure range.
Is there a difference between parts for a 4-cylinder vs. a V6 Ranger?
For this specific part, the A/C clutch cycle switch is generally the same across the different engine options for the 1995-2003 model years. However, it is always best practice to verify the fitment for your specific year and engine before purchasing.
Helpful Videos
Technical Specifications

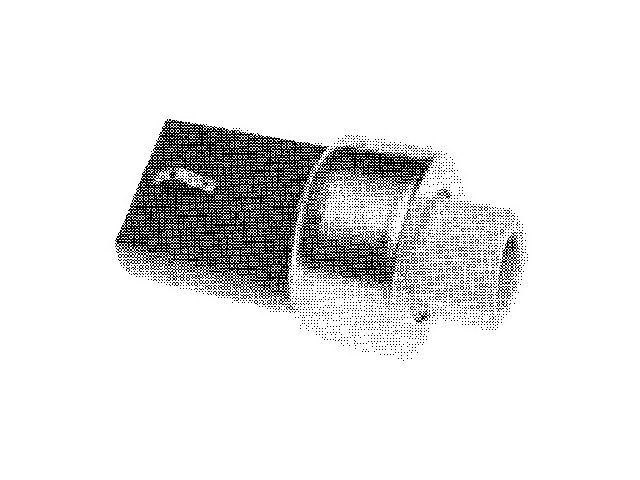

OEM Part Numbers: YH552
Connector Gender: Female, Terminal Type: 2-Blade, Refrigerant Compatibility: R134a
