Ford Windstar Engine Oil Pressure Switch Guide for 1995-2003 Models
Understanding the oil pressure warning light on your Windstar and how to choose the right replacement switch.
- Never ignore an oil pressure light; immediately check your oil level and stop the engine to prevent catastrophic damage.
- On the 3.8L Windstar, the switch is extremely difficult to replace, making labor the primary cost of the repair.
- A flickering oil light at idle can indicate serious internal engine wear, not just a bad sensor.
- Invest in a quality aftermarket brand like Standard Ignition or Hella to avoid paying for the high labor cost a second time.
Is Your Windstar's Oil Light On? What It Means
The most common sign of a problem with your oil pressure switch is the behavior of the oil warning light on your dashboard. You might see it stay on all the time, flicker randomly, or come on 🎬 Watch: 7 reasons why your oil light blinks at idle. only when the engine is warm and idling at a stop sign. You could also see an incorrect reading on the oil pressure gauge, if your van has one. In some cases, the switch itself can fail and leak oil. You might notice an oil drip on the ground coming from the passenger side of the engine. A faulty switch can also trigger the Check Engine Light with codes like P0522.
Warning: A Bad Switch vs. Low Oil Pressure
An oil light does not always mean the switch is bad. It could be doing its job and warning you of actual low oil pressure. This is a critical situation that can destroy your engine. On high-mileage Windstars, an oil light that flickers at idle but goes away when you accelerate is a classic symptom of worn engine bearings, which is a very serious engine problem. Always check your oil level first. If the level is good, you should have a mechanic test the actual oil pressure with a mechanical gauge 🎬 See how a professional mechanic tests actual engine oil pressure. before assuming the switch is the only problem.
Choosing the Right Aftermarket Oil Pressure Switch
For the 1995-2003 Ford Windstar, the oil pressure switch is very difficult to access and replace, especially on the 3.8L V6 engine. The labor cost will be much higher than the cost of the part itself. Because of this, it is highly recommended to choose a quality part to avoid doing the job twice. Aftermarket brands can be grouped into tiers based on reputation and quality.
- Top Tier (Recommended): Brands like Standard Ignition (SMP) and Hella have a strong reputation for producing quality electronic components that meet or exceed OEM standards. They focus on durability and accurate readings, which is what you want for a critical sensor in a hard-to-reach location.
- Mid Tier: Facet is another established brand that produces a wide range of sensors. They are generally considered a reliable choice and a good balance between price and quality.
- Economy Tier: Brands like Global Parts and Rostra Powertrain are often more budget-friendly. While they can be a good value, for a part with high labor costs for replacement, spending a little more for a top-tier brand is a smart investment for peace of mind.
Replacement Cost for a 1995-2003 Ford Windstar
The cost to replace the oil pressure switch is dominated by labor due to its poor accessibility. The part itself is inexpensive.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Switch | $7.35 - $40.64 |
| New OEM Switch | $25 - $50 |
| Shop Labor | $250 - $450 |
| Total Estimated Cost | $260 - $500 |
Pro Tip: The location of the switch on the 3.8L V6 is behind several other engine components, including the alternator bracket and a coolant pipe. This is why labor estimates are around 2-3 hours. When getting a quote, make sure the shop is aware of the specific location on your Windstar engine.
Frequently Asked Questions
Is the oil light on my Windstar always a bad switch?
No, and it's dangerous to assume it is. The light's purpose is to warn of low oil pressure. Always check your oil level first. If the level is correct, the problem could be a failing oil pump, clogged oil passages, or worn engine bearings, especially on an older vehicle. A professional diagnosis is recommended.
Where is the oil pressure switch located on a 1995-2003 Windstar?

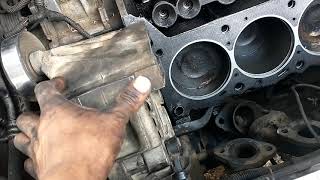

On the common 3.8L V6 engine, the switch is in a very difficult spot. It is on the passenger side of the engine block, below the alternator and behind its mounting bracket, near the oil filter housing. 🎬 Watch: See the exact location of the sensor on a Windstar. Access requires removing several other parts, making it a challenging job.
Can I drive my Windstar with the oil pressure light on?
No. You should pull over and shut off the engine as soon as it is safe to do so. Driving with low oil pressure, even for a short time, can cause severe and permanent engine damage, leading to thousands of dollars in repairs.
Why is the repair so expensive if the part is cheap?
The cost comes from the labor required to access the switch. A mechanic may need 2-3 hours to remove the serpentine belt, alternator bracket, and other components to reach the old switch and install the new one. This is why choosing a quality brand is important to avoid repeat repairs.
Helpful Videos
Technical Specifications

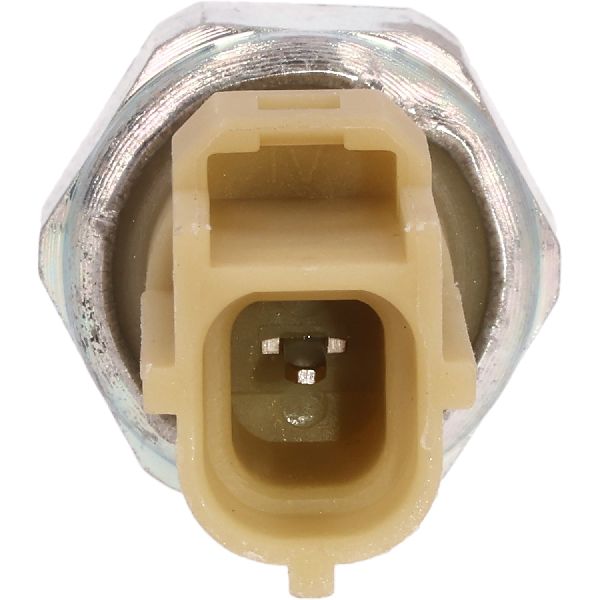

OEM Part Numbers: GC3Z-9278-B 1U5Z-9278-DA 6U5Z-9278-D F8AZ-9278-DA
The oil pressure switch for the Ford Windstar is a normally closed switch. It opens to turn the warning light off when sufficient oil pressure is built up after the engine starts.
