Ford Windstar Vehicle Speed Sensor: A Guide for 1995-2003 Models
Solve your Windstar's erratic speedometer and shifting problems by understanding the Vehicle Speed Sensor.
- First, rule out a faulty instrument cluster, a common issue on Windstars that mimics VSS failure.
- The primary VSS (Output Shaft Sensor) is extremely difficult to access, making replacement a challenging job.
- Symptoms include an erratic speedometer, harsh shifting, and non-working cruise control.
- Ensure you are buying the correct sensor (Input vs. Output), as there are two on the transmission.
Is it the Speed Sensor or the Instrument Cluster?
STOP! Before you buy a new speed sensor, read this. The 1995-2003 Ford Windstar is known for having problems with the instrument cluster itself. Bad solder joints on the cluster's circuit board can cause the exact same symptoms as a bad speed sensor, like a dead or bouncing speedometer and transmission issues. If you replace the sensor and the problem doesn't go away, the instrument cluster is the likely culprit and may need to be repaired or replaced.

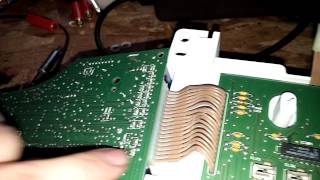

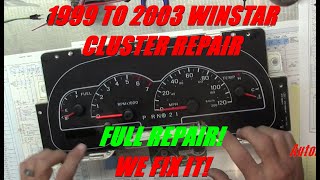

🎬 Watch: How to repair bad solder joints on the cluster.Symptoms of a Failing Vehicle Speed Sensor
When the VSS on your Windstar starts to fail, it can cause a number of noticeable problems. The most common sign is a speedometer that acts strangely, jumps around, or stops working completely. You may also experience serious transmission issues, such as harsh, delayed, or erratic shifting. Other common symptoms include:
- Cruise control that won't turn on or shuts off by itself.
- The Check Engine Light illuminating on your dashboard.
- The anti-lock brake (ABS) or traction control warning light may come on.
- A diagnostic scan may show trouble code P0500, which points directly to a VSS malfunction. 🎬 See this video for a deep dive into fixing P0500 codes.
Choosing the Right Aftermarket Speed Sensor
When replacing the VSS, you have a choice between OEM (Motorcraft) and several aftermarket brands. Since this is a difficult part to access, choosing a quality replacement is important to avoid doing the job twice.
Tier 1: OEM and Premium Aftermarket
- Motorcraft: This is the original Ford part. It offers the best guarantee of fit, function, and long life, but it is also the most expensive option.
- Delphi / Standard Ignition (SMP): These brands are well-respected in the industry and are known for producing high-quality parts that meet or exceed OEM specifications. They are an excellent choice for a reliable, long-lasting repair.
Tier 2: Quality Mid-Range Aftermarket
- Dorman: Dorman is a popular brand that often provides good value. They are known for making a wide range of replacement parts and are a common choice in repair shops.
- Holstein: This brand offers a solid balance of quality and price, making it a dependable option for most owners.
Tier 3: Economy Brands
- Walker Products / True Tech: These brands are typically the most affordable. They can be a good choice for a budget-conscious repair, but may not offer the same long-term durability as premium brands.
Ford Windstar Speed Sensor Replacement Cost
The cost to replace the VSS depends on whether you do it yourself or hire a professional. This job is considered difficult due to the sensor's location on the transmission.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $30 - $75 |
| New OEM (Motorcraft) Part | $85 - $220 |
| Shop Labor | $150 - $250 |
| Total Professional Replacement | $180 - $470 |
Pro Tip: Your Windstar has two speed sensors on the transmission: an Input/Turbine Speed Sensor (TSS) and an Output Speed Sensor (OSS). The OSS is the one that controls the speedometer. Make sure you are ordering the correct sensor for the problem you are having.
Frequently Asked Questions
Where is the Vehicle Speed Sensor located on a 1995-2003 Ford Windstar?
The main Vehicle Speed Sensor (Output Shaft Sensor) is located on the top/rear of the transmission (transaxle). It is in a very tight spot and is difficult to see and reach. Mechanics often access it from underneath the vehicle after removing the exhaust Y-pipe and heat shield, or by working blind from the top of the engine bay after removing the air filter box.
🎬 Watch: A walkthrough of the transmission speed sensor replacement.Can I replace the Windstar's speed sensor myself?
This is a difficult job for a DIY mechanic. While possible, it requires patience, flexibility, and the right tools to work in a very tight space. One owner reported it took them six hours. Due to the high difficulty, many owners choose to have a professional mechanic perform the replacement.
Will a bad speed sensor cause my Windstar to not start?
No, a bad vehicle speed sensor will not typically prevent your van from starting. However, a faulty instrument cluster, which can cause similar symptoms, might be related to a no-start condition if the security system data is affected.
What is the difference between the Input (TSS) and Output (OSS) speed sensors?
The Input Speed Sensor (TSS) measures the speed of the transmission's input shaft, which helps the computer control shift quality. The Output Speed Sensor (OSS) measures the speed of the output shaft, which is used to determine the vehicle's actual speed for the speedometer and cruise control. A bad OSS is what typically causes a faulty speedometer reading.
Helpful Videos
Technical Specifications
OEM Part Numbers: YF1Z-7H103-AA XF2Z-7H103-AA E9LZ-9E731-A

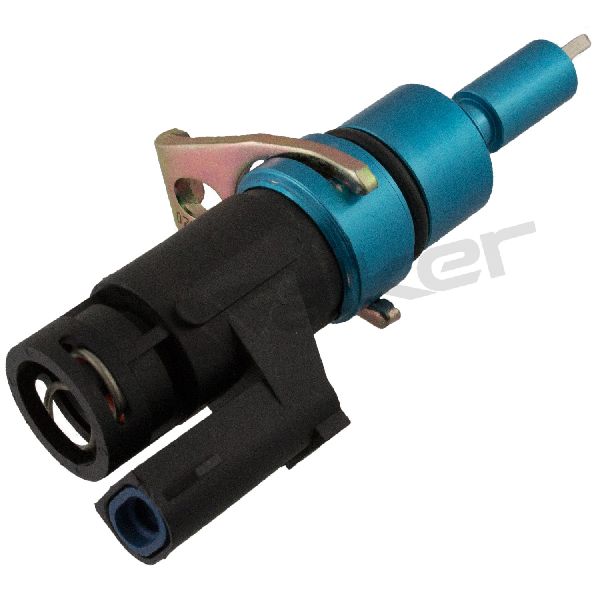

The primary Vehicle Speed Sensor for the speedometer is the Output Shaft Speed (OSS) sensor, located on the transmission housing. It is a magnetic sensor that generates a signal based on the rotation of a toothed wheel on the output shaft.
