Kia Sportage 1995-2003 Engine Crankshaft Position Sensor Guide
Solve stalling and no-start problems by understanding how to choose the right crankshaft position sensor for your first-generation Sportage.
- A bad crankshaft sensor is a top cause for no-start, stalling, and rough running issues on a 1995-2003 Sportage.
- Symptoms often worsen as the engine gets hot and may disappear after it cools down.
- The most common trouble code is P0335.
- For reliability, choose a premium aftermarket brand like Beck Arnley or Delphi over the cheapest options.
Is Your Sportage Stalling or Not Starting?
If your 1995-2003 Kia Sportage is suddenly stalling, having trouble starting, or the engine is running rough, a failing crankshaft position sensor is a very common cause. This sensor is essential for engine operation, and when it starts to go bad, it can cause a range of frustrating issues. Because this part is so critical, the engine may not run at all if it fails completely.
Common Failure Symptoms
A bad crankshaft sensor usually gives some warning signs before it fails completely. Here’s what to look for:
- Check Engine Light: The most common sign is a check engine light with the code P0335 stored in the computer.
- Engine Won't Start: The engine will crank over but won't fire up. This happens because the computer doesn't know the crankshaft is spinning and won't activate the spark plugs or fuel injectors.
- Intermittent Stalling: The engine may run fine and then suddenly shut off while driving. This often gets worse as the engine warms up.
- Rough Idle and Misfires: Your Sportage may shake or vibrate at idle because the engine timing is incorrect.
- Poor Acceleration: The vehicle may feel sluggish and lack power because the computer can't time the engine events correctly.
Heat-Related Failures
Crankshaft sensor problems on the first-generation Sportage often appear when the engine is hot and disappear when it cools down. If your car stalls and then restarts after sitting for 30 minutes, the crankshaft sensor is a likely suspect.
Choosing the Right Aftermarket Sensor
When replacing a critical sensor like this, quality matters. While an OEM sensor from a Kia dealer is always a good choice, a high-quality aftermarket part can offer similar performance for less money. The brands available for your Sportage fall into different quality tiers.
| Brand Tier | Brands | Honest Assessment |
|---|---|---|

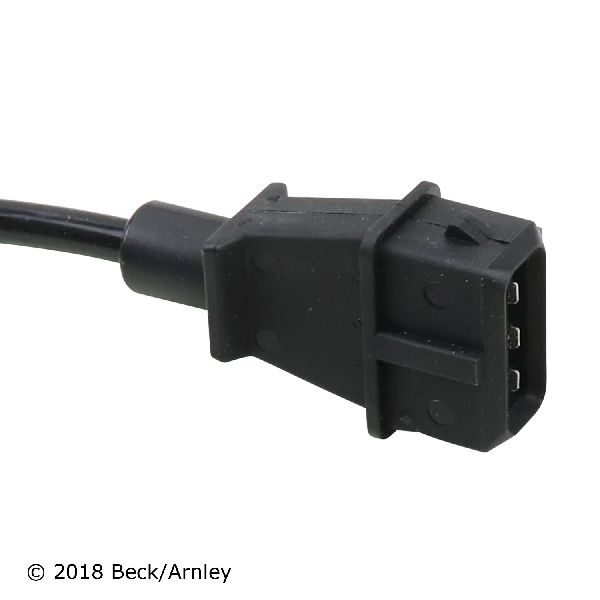

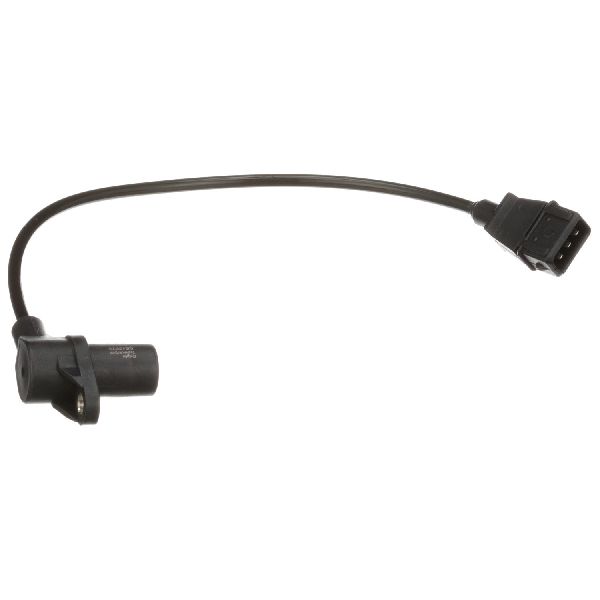

| Premium Aftermarket | Beck Arnley, Delphi | These brands are well-regarded for engine management parts. They often source their components from the same manufacturers that supply Kia (OEM suppliers). Choosing one of these brands is your best bet for a reliable, long-lasting repair without paying dealer prices. |

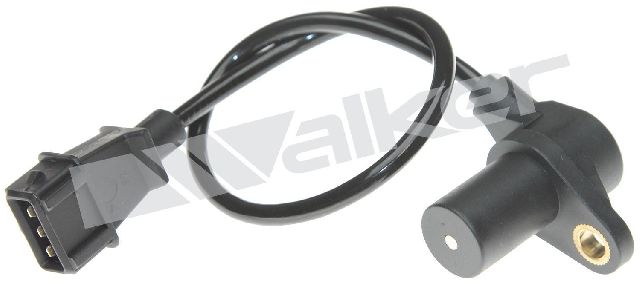

| Standard Aftermarket | Standard Ignition (SMP), Walker Products | These are solid mid-tier options. Standard Motor Products has been making ignition components for a long time and generally produces reliable parts. They can be a good balance between cost and quality. |

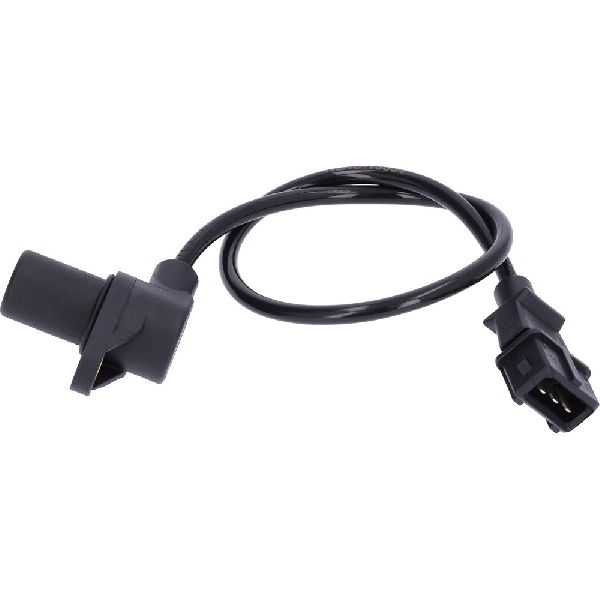

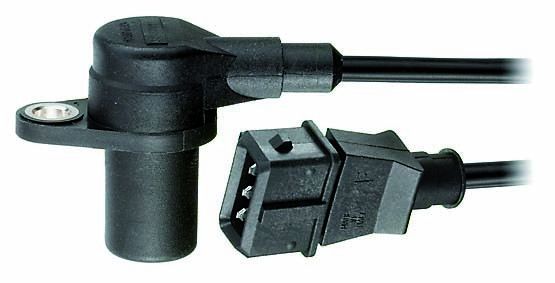

| Economy Aftermarket | Facet, Global Parts (and other low-cost brands) | While the low price is tempting, economy sensors have a higher risk of being defective out of the box or failing prematurely. For a part that can leave you stranded, it's often worth spending a little more for a better-quality brand. |
OEM vs. Aftermarket: The Verdict
For a critical sensor like the crankshaft position sensor, avoiding the cheapest option is wise. An unreliable sensor can mimic the same problems you're trying to fix, leading to frustrating and expensive misdiagnosis. A premium aftermarket brand like Beck Arnley or Delphi offers a smart balance of quality and value for your Sportage.
Known Issues, Recalls, or TSBs
For the 1995-2003 Kia Sportage, there are no active recalls or common Technical Service Bulletins (TSBs) from the NHTSA specifically for the crankshaft position sensor. Problems with this part are typically due to normal wear and tear on a vehicle of this age.
Frequently Asked Questions (FAQ)
Where is the crankshaft position sensor located on a 1995-2003 Kia Sportage?
On the 2.0L engine used in the first-generation Sportage, the crankshaft position sensor is located on the back of the engine block, near where the engine meets the transmission. It is held in place by a single 10mm bolt. Access can be tight, and it's often easiest to reach from underneath the vehicle.
Can I replace this sensor myself?
Yes, this is a DIY-feasible job for someone with basic mechanical skills. You will need to safely raise the vehicle for access from below. The main challenge is reaching the sensor's bolt due to its location. The job involves disconnecting the battery, unplugging the electrical connector, removing one 10mm bolt, and swapping the sensor. Estimated time is about 1 to 1.5 hours.
Do I need a special tool to replace this sensor?
No special tools are required. A basic socket set with a 10mm socket and possibly an extension will be needed to remove the bolt. A flathead screwdriver might be helpful for releasing the clip on the electrical connector.
Does the new sensor need to be programmed?
No. On this generation of Kia Sportage, the crankshaft position sensor does not require any special programming or "relearn" procedure. Once installed, you can clear the check engine light code with a scanner, and it should work immediately.
Helpful Videos
Technical Specifications
OEM Part Numbers: 0K08A-18891 0K013-1813X 0K04G-18891 0K934-18891
This is a two-wire magnetic sensor that generates its own signal as the crankshaft spins. It is held in by a single bolt and sealed with an O-ring.
