Acura TL Engine Oil Pressure Switch Guide for 1995-2004 Models
Fixing that common oil leak or flickering dashboard light on your first or second-generation Acura TL.
- The most common failure is an oil leak directly from the switch itself, not an electrical fault.
- Always verify your oil level with the dipstick before assuming the switch is bad.
- For V6 models (1999-2004), be sure you are replacing the main engine oil pressure switch, not the VTEC pressure switch.
- A high-quality aftermarket switch from a brand like Standard Ignition or Beck Arnley is a reliable and cost-effective repair.
Is Your Acura TL Oil Light On or Leaking Oil?
If you own a 1995-2004 Acura TL, 🎬 Watch: Step-by-step oil pressure sensor replacement on a 2000 TL two of the most common issues you might face are a flickering oil pressure light or a mysterious oil leak. Often, the cause is a failing engine oil pressure switch. This is a very common failure point on Honda and Acura engines from this era. The internal seals of the switch wear out, causing oil to leak directly through the sensor itself. It can also fail electrically, causing the oil light to illuminate incorrectly even when the oil level is full.
Warning: Check Your Oil Level First!
If your oil pressure light comes on, your first step should always be to pull over safely and check your engine oil level using the dipstick. If the oil level is low, top it off. If the light stays on or you hear any knocking or ticking sounds from the engine, do not drive the car. Driving with low oil pressure can cause catastrophic engine failure within minutes.
Choosing the Right Aftermarket Oil Pressure Switch
You don't need to buy an expensive OEM switch from the dealer to fix this common problem. High-quality aftermarket brands offer excellent reliability and value. However, not all aftermarket parts are created equal. For a part this critical, it's best to avoid the cheapest options, which may have questionable durability.
Brand Quality Tiers
- Premium Aftermarket (Standard Ignition, Beck Arnley): These brands are highly respected by professional mechanics. Standard Ignition (SMP) is known for its quality manufacturing, and Beck Arnley often sources parts from the original OEM suppliers. Choosing one of these brands provides confidence that you are getting a part that is as good as, or sometimes better than, the original.
- Standard Aftermarket (Facet): Facet is an established brand that generally provides a good balance of quality and price. They are a reliable choice for a daily driver.
- Economy Aftermarket (URO Parts, Global Parts): While the low price is tempting, brands like URO Parts have a mixed reputation for electrical components. While they might be suitable for less critical parts, for a sensor that monitors your engine's lifeblood, it's often worth spending a few extra dollars for a more trusted brand.
Cost to Replace an Acura TL Oil Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New OEM | $45 - $75 |
| New Aftermarket | $10 - $56 |
| Shop Labor | $78 - $115 |
Frequently Asked Questions (FAQ)
Is this the same as the VTEC oil pressure switch?
No. On the 1999-2004 TL with the J-series V6 engine, 🎬 Watch: How to replace the switch on a J-series V6 there are at least two oil pressure switches. The main engine oil pressure switch (the focus of this guide) operates the warning light on the dash. There is a separate VTEC oil pressure switch located on the VTEC solenoid assembly that helps control the variable valve timing system. They are different parts and are not interchangeable.
How hard is it to replace the oil pressure switch?
For most DIY mechanics, this is a relatively easy job. The switch is typically located on the engine block, often near the oil filter. Access can be tight, but it can usually be done by jacking up the car and accessing it from underneath or through the passenger-side wheel well. 🎬 See this walkthrough for accessing and replacing the switch You will need a special deep socket (usually 24mm) or an oil pressure switch socket. A small amount of oil will leak out when you remove the old switch, so have a rag ready.
What happens if I ignore a leaking switch?
A small leak can quickly turn into a big one. The switch is under full oil pressure when the engine is running. A complete failure can pump a significant amount of oil out of your engine in a short time, leading to low oil levels and potential engine damage. It's best to replace a leaking switch as soon as you notice it.
Why is my oil light still on after replacing the switch?
If you've replaced the switch and the oil level is correct, there could be other issues. The wiring or connector to the switch could be damaged, or there could be a clog in the oil passages. In a worst-case scenario, the oil pump itself may be failing, and you have a real low-pressure situation. If the problem persists, it should be diagnosed by a professional mechanic immediately.

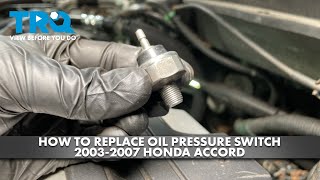

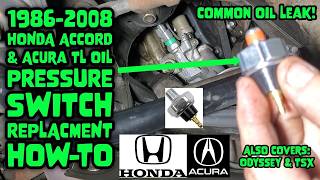

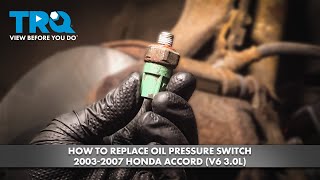

Helpful Videos
Technical Specifications
OEM Part Numbers: 37240-P2F-A01 37240-PT0-014 37240-PT0-023 37240-PT0-004
Connector Type: 1-Pin Blade. Thread Size: Varies by year, typically 1/8" NPT. Wrench Size: Typically 24mm.
