Audi S6 (1995-2004) Engine Coolant Thermostat: A Complete Guide
Understanding the critical differences in thermostat replacement for your C4 or C5 Audi S6.
- For the 1999-2004 S6 V8, the thermostat is behind the timing belt and should ONLY be replaced during a full timing belt service.
- Choose an OEM-equivalent thermostat brand like Calorstat, Behr, or Wahler. The high labor cost makes using a budget part a huge risk.
- A thermostat stuck closed will cause rapid overheating and can destroy your engine; pull over immediately.
- A thermostat stuck open will cause a slow warm-up, poor heat, and can trigger a P0128 check engine light.
A Tale of Two S6 Models: C4 vs. C5
Before buying a thermostat for a 1995-2004 Audi S6, you must identify your vehicle's generation. The replacement job differs dramatically between them.
- 1995 S6 (C4 chassis): This model uses an inline-five engine. The thermostat is relatively accessible and can be replaced by a skilled DIY mechanic without major disassembly. The job is straightforward compared to its successor.
- 1999-2004 S6 (C5 chassis): This model features a 4.2L V8 engine. The thermostat is located behind the timing belt. This makes replacement an extremely labor-intensive and expensive job.
Critical Information for C5 S6 V8 Owners
Due to its location, the thermostat on the 4.2L V8 is almost always replaced during a full timing belt service. Attempting to replace only the thermostat is not cost-effective, as the labor to access it is the same as a timing belt job. If your thermostat fails, you should replace the timing belt, water pump, tensioners, and idler pulleys at the same time.
Symptoms of a Failing Thermostat
A bad thermostat can fail in two ways: stuck open or stuck closed.
- Stuck Open: Your engine will be slow to warm up, especially in cold weather. You may notice the temperature gauge dropping towards cold when driving at highway speeds and poor performance from your cabin heater. This can also trigger a P0128 check engine light for "Cooling System Performance".
- Stuck Closed: This is a much more serious condition. The thermostat blocks coolant from reaching the radiator, causing the engine to overheat rapidly. You will see the temperature gauge spike into the red. You must stop the engine immediately to prevent severe damage like a warped cylinder head or blown head gasket.
- Erratic Gauge: The temperature gauge may fluctuate wildly between normal and hot, which can also indicate a faulty thermostat.
Choosing the Right Aftermarket Thermostat
For a critical part like this, especially on the V8 where labor costs are so high, quality is paramount. You do not want to repeat this job because of a cheap, faulty part.

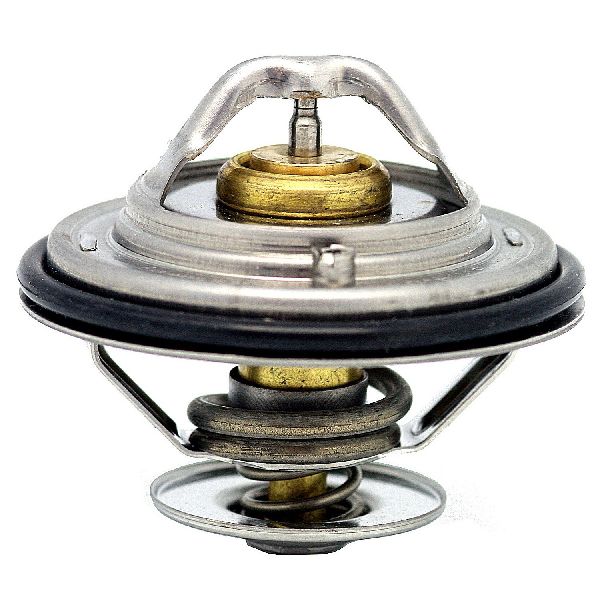

- Tier 1: OEM-Equivalent Brands (Calorstat, CRP): Brands like Calorstat by Vernet, Wahler, and Behr are often the original equipment manufacturers for Audi. They are engineered to the exact specifications for temperature and reliability. CRP often re-packages these OEM parts. Choosing one of these is the safest bet for longevity and performance.

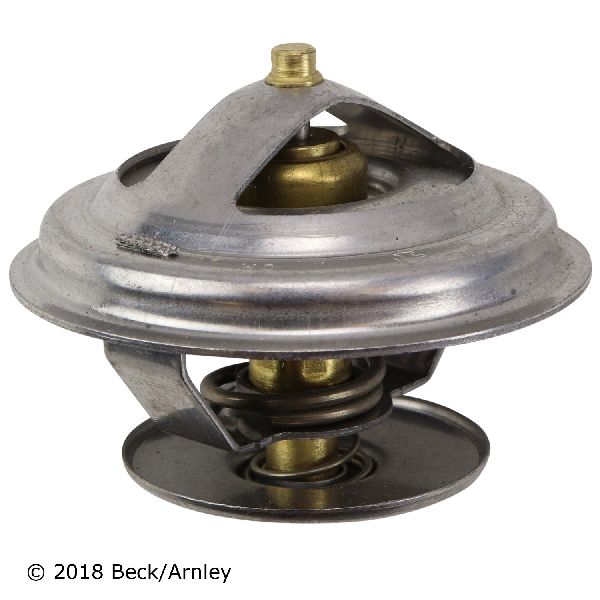

- Tier 2: Reputable Aftermarket (Gates, Beck Arnley): Gates is a well-known name in cooling systems. Their thermostats are a reliable choice, though some mechanics note they can open slightly differently than OEM. Beck Arnley specializes in re-packaging quality parts for import vehicles and is generally a solid option.
- Tier 3: Budget-Focused (Motorad): Motorad is widely available but has mixed reviews in enthusiast communities. While it may function, it's often considered a lower-quality option. Given the extreme labor involved in a C5 S6 replacement, saving a few dollars on a budget thermostat is not recommended.
Pro Tip: Replace the Housing and Seal
The plastic thermostat housings on these Audis can become brittle over time and are prone to cracking. Always replace the thermostat housing and the rubber O-ring seal when you replace the thermostat to prevent future leaks.
Cost of Replacing an Audi S6 Thermostat
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Thermostat | $19.93 - $74.13 |
| New OEM Thermostat | $50 - $110 |
| Shop Labor (C4 I-5) | $150 - $300 |
| Shop Labor (C5 V8) | $900 - $1600+ (Typically part of a full timing belt service) |
Frequently Asked Questions
Why is the C5 S6 V8 thermostat replacement so expensive?
The thermostat is physically located behind the engine's timing belt. To access it, a mechanic must remove the front bumper, put the vehicle in a "service position," and remove the timing belt and its components. The labor involved is extensive, typically 8+ hours.
What else should I replace with the thermostat on my V8?
Because the labor is the main expense, you should always replace other wear items in that area. This includes the timing belt, water pump (with a metal impeller if possible), timing belt tensioner, and all idler pulleys. This is considered a complete timing belt service.
Is a thermostat stuck open really a problem?
Yes. While not as immediately destructive as being stuck closed, a stuck-open thermostat prevents your engine from reaching its proper operating temperature. This leads to increased engine wear, poor fuel economy, higher emissions, and ineffective cabin heating.
Can I trust an aftermarket thermostat in my Audi?
Yes, if you choose a high-quality brand. An OEM-equivalent brand like Calorstat, Behr, or Wahler is highly recommended. For a job as difficult as the V8 thermostat, it is not worth the risk to use a budget part. The part cost is a tiny fraction of the total job cost.
Technical Specifications
OEM Part Numbers: 077121113B 077121113D 079121115BD
Standard opening temperatures are typically 87°C or 92°C. Ensure the replacement part matches the specification for your vehicle's engine. The thermostat must be installed with the vent valve in the correct orientation to allow air to bleed from the system.
