Your Guide to the 1995-2004 Chevrolet S10 Wiper Motor
Having wiper problems on your S10? Here's what you need to know before you buy a new motor.
- A faulty pulse board is the most common cause of wiper issues on the S10, and it was the subject of a factory recall.
- Symptoms include wipers stopping mid-windshield, working only on high speed, or not working at all.
- Replacing the entire motor assembly is often the best repair, as new units include a new pulse board.
- Aftermarket motors from brands like Cardone, WAI Global, and Replacement are cost-effective solutions for this truck.
Is Your S10 Wiper Motor Failing?
A bad wiper motor isn't just an annoyance; it's a serious safety issue. On the 1995-2004 S10, the symptoms of a failing motor are usually very clear. You might notice your wipers moving much slower than they used to, or they may only work on one speed (usually high). Another very common sign is when the wipers stop in the middle of the windshield instead of returning to their 'parked' position at the bottom. In some cases, they might not turn on at all, or they may work intermittently.
A Common S10 Wiper Problem: The Pulse Board
A very frequent point of failure on these trucks isn't the motor itself, but the attached electronic circuit board, also known as the pulse board or wiper control module. Cracked solder joints on this board were so common that GM issued recalls for this exact issue on 1996-1997 S10 models. The symptoms are often the same as a bad motor: intermittent operation, wipers that won't turn off, or wipers that stop working entirely. 🎬 Watch this video to see how to fix common board failures. Many new aftermarket wiper motors come with a new pulse board already installed.
Choosing the Right Aftermarket Wiper Motor
For an older truck like the S10, an aftermarket wiper motor is a smart, cost-effective choice. The original equipment (OEM) part offers no significant advantage in longevity for this component, and aftermarket options provide the same performance for less money. When shopping, you'll see a few brand names.
- Cardone: A well-known brand that offers both new and remanufactured parts. They are generally considered a reliable mid-tier option that balances quality and cost.
- WAI Global: Another major aftermarket manufacturer specializing in electrical parts. They produce new motors designed to meet original specifications and are a common choice in repair shops. Some user reviews suggest that quality can be inconsistent, with some parts failing prematurely.
- Replacement: This is often a 'white-label' or house brand. These parts offer the most budget-friendly price point and are built to original specifications, making them a good value for restoring proper function to your wipers.
Pro Tip: Before ordering, check if your old motor has a 2-pin or 3-pin electrical connector, as this can vary. Also, many owners find that simply replacing the pulse board fixes their problem. However, since many new motors include a new board and the motor itself can fail, replacing the entire assembly is often the most reliable long-term repair.
Cost of Replacing an S10 Wiper Motor
Here is a general breakdown of what you can expect to pay for a new wiper motor for your 1995-2004 Chevrolet S10. Labor at a professional shop typically costs between $100 and $250.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Motor | $73 - $99 |
| Remanufactured Motor | $50 - $80 |
| Shop Labor | $100 - $250 |
Frequently Asked Questions
Why did my wipers stop in the middle of the windshield?
This is a classic symptom of a failed 'park' switch, which is located inside the wiper motor assembly. When this switch fails, the motor doesn't get the signal to continue running until the wipers are at the bottom of the windshield. Replacing the motor assembly will fix this.
Can I just replace the pulse board instead of the whole motor?
Yes, the pulse board can be purchased and replaced separately. This is a very common repair and can be done in about 10-15 minutes without removing the entire motor. 🎬 See how to quickly swap out a failing pulse board. However, if the motor itself is old or showing signs of weakness (like slow operation), replacing the complete assembly is a more thorough repair.
Was there a recall for the wiper motor on my S10?
Yes, GM issued recalls for the wiper motor circuit board on 1995, 1996, and 1997 S10 models due to cracked solder joints that could cause the wipers to fail. The recall involved replacing the circuit board and cover. While this recall is long expired, it highlights how common this specific failure is.
Is replacing the wiper motor a difficult job?
For a DIYer with basic tools, this job is very manageable. It involves removing the plastic cowl at the base of the windshield, taking off the wiper arms, unplugging the motor, and unbolting it from the firewall. 🎬 Watch this step-by-step guide to replacing your S10 wiper motor. The most important part of reinstallation is making sure the wiper arms are placed back in their correct parked position.
Helpful Videos
Technical Specifications

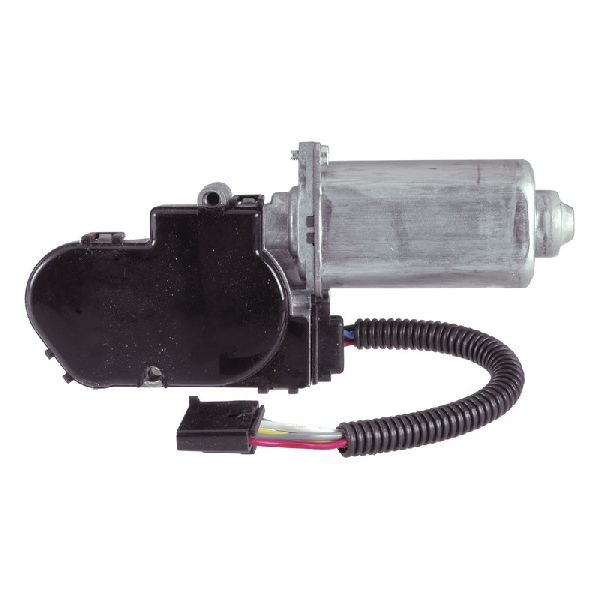

OEM Part Numbers: 15036008
Fits 1995-2004 Chevrolet S10. Includes motor and pulse board module. Check for specific electrical connector pin count before purchase.
