Toyota Avalon Fuel Injector Guide for 1995-2004 Models
Everything you need to know about replacing the fuel injectors on your first or second-generation Avalon.
- Replacing injectors on the 1995-2004 Avalon is a difficult job due to the V6 engine layout, requiring removal of the intake manifold.
- It is strongly recommended to replace all six injectors at once to avoid repeating the costly labor.
- Aftermarket brands offer significant cost savings over OEM, but economy/reman brands carry a higher risk of premature failure.
- There are no known recalls or TSBs for fuel injector failure on this specific vehicle, meaning failures are typically due to age and wear.
Is Your Avalon's Engine Running Rough? It Could Be a Fuel Injector.
The fuel injectors on the Toyota 1MZ-FE V6 engine are known to be reliable, often lasting well over 100,000 miles. However, with age and mileage, they can begin to fail. When an injector gets clogged or stops working correctly, it can cause a range of noticeable engine problems. Ignoring these symptoms can lead to worse fuel mileage, failed emissions tests, and even damage to other engine components.
Common Symptoms of a Failing Fuel Injector
- Rough Idle or Stalling: The engine may shake or vibrate when stopped, and in severe cases, it may stall.
- Engine Misfires: You might feel a hesitation or stumble during acceleration as one cylinder fails to fire correctly. This will often trigger a Check Engine Light.
- Poor Fuel Economy: If an injector is stuck open or leaking, it will dump too much fuel into the engine, causing you to fill up more often.
- Hard Starting: The engine may take longer to crank before it starts, or it might not start at all.
- Fuel Smell: A leaking injector body or seal can create a dangerous raw fuel smell around the engine bay.
Check Engine Light Codes
A failing fuel injector will almost always turn on the Check Engine Light. Common codes include P0300 (random misfire) or P0301-P0306 to indicate a misfire in a specific cylinder. 🎬 Watch: Diagnosing and replacing a specific cylinder fuel injector You may also see codes P0200 (injector circuit malfunction) or P0201-P0206 for a specific injector's electrical fault.
Choosing the Right Aftermarket Fuel Injector
When shopping for new injectors for your Avalon, you'll find a wide price range. This reflects different levels of quality and reliability. Since replacing the rear three injectors on this V6 engine is labor-intensive, choosing a quality part is important to avoid doing the job twice.
Brand Quality Tiers

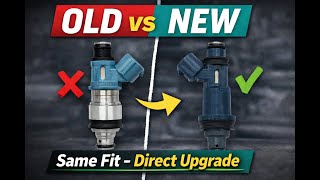

- Premium Aftermarket (e.g., Standard Ignition): Brands like Standard Motor Products (SMP) aim to produce parts that match original equipment (OE) performance. While generally reliable, aftermarket electrical parts can sometimes have quality control issues, with occasional reports of parts being faulty out of the box. They represent a good balance of cost and quality for most owners. 🎬 See why newer injector designs are better for your 1MZ-FE

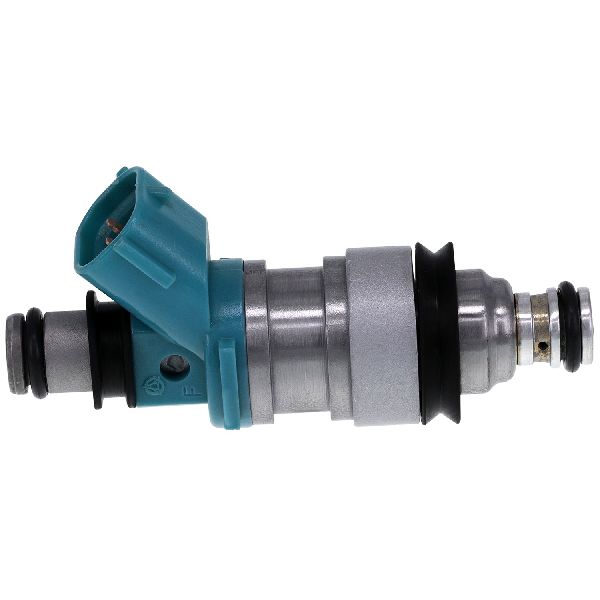

- Economy / Remanufactured (e.g., GBR Fuel Injection): These are the most affordable options. However, they can be a gamble. Some owners use them without issue, but there are documented cases of remanufactured injectors from brands like GB failing shortly after installation, sometimes being stuck open right out of the box. A stuck-open injector can wash oil from cylinder walls and cause serious engine damage. This option carries a higher risk.
- OEM (Original Equipment Manufacturer): Toyota's original injectors (made by Denso) are the most reliable choice but also the most expensive. A single new OEM injector can cost more than a full set of aftermarket ones.
Pro Tip: Replace as a Set
If one fuel injector has failed due to age or high mileage, the others are likely not far behind. Because replacing the rear injectors requires significant labor to remove the intake manifold, it is highly recommended to replace all six injectors at the same time. This saves you from having to repeat the difficult repair in the near future.
🎬 Watch this step-by-step guide to replacing your fuel injectorsCost of Replacing Toyota Avalon Fuel Injectors
The cost can vary significantly based on who does the work and the parts you choose. The high labor cost is due to the need to remove the upper intake manifold to access the rear bank of injectors.
| Part/Service | Estimated Cost |
|---|---|
| Shop Labor | $315 - $462 |
| New Aftermarket Injectors (Set of 6) | $336 - $1425 |
| New OEM Injectors (Set of 6) | $1400 - $1800+ |
| Total Professional Job (Aftermarket Parts) | $650 - $1900+ |
| Total Professional Job (OEM Parts) | $1700 - $2300+ |
Frequently Asked Questions
Were there any recalls for the 1995-2004 Avalon fuel injectors?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or widespread technical service bulletins (TSBs) specifically for fuel injector failure on the 1995-2004 Toyota Avalon. Recalls for other model years or different fuel system components like the fuel pump do exist, but they do not apply to the injectors on these models.
Can I replace just one fuel injector?
While you can replace just the one failed injector, it is not recommended. The injectors in your car have all seen the same amount of use. If one has failed, others may fail soon after. Given the high labor cost to access the rear injectors, replacing all six at once is the most cost-effective and reliable repair.
Is this a good DIY job?
For an experienced DIY mechanic, this is a manageable but time-consuming job, estimated at around 6 hours. However, for a beginner, it is not recommended. The process requires removing the upper intake manifold, dealing with the fuel system safely, and carefully handling many hoses and electrical connectors that can become brittle with age.
Do I need special tools?
You will need a good set of metric sockets and wrenches, pliers, and potentially a fuel line disconnect tool. It is also critical to relieve the fuel system pressure before starting to prevent fuel from spraying, which is a major fire hazard. Always wear safety glasses and have a fire extinguisher nearby.
Helpful Videos
Technical Specifications
OEM Part Numbers: 23209-20020 23250-20010 23209-20010
Engine: 3.0L 1MZ-FE V6. Quantity Required: 6. Type: Multi-port Fuel Injection.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
