Engine Oil Cooler Guide for the 1995-2005 Audi A6 (C5)
Learn to spot the signs of a failing engine oil cooler and choose the right replacement for your Audi A6.
- The most critical failure symptom is oil mixing with coolant, which requires immediate attention to prevent engine destruction.
- For 4.2L V8 engines, it is essential to replace the failure-prone plastic coolant pipe with an upgraded metal version during the job.
- Replacement is straightforward on V6 engines but extremely difficult and labor-intensive on the 4.2L V8.
- Choosing a quality aftermarket brand like Febi or Nissens can offer similar performance to OEM parts at a lower cost.
Is Your Audi A6 Engine Oil Cooler Failing?
The engine oil cooler on the C5 generation Audi A6 (1998-2005) is a known source of fluid leaks. As these cars age, the seals and gaskets that keep the oil and coolant separated become hard and brittle from constant exposure to heat. This can lead to simple external leaks or much more serious internal failures.
Special Note for 4.2L V8 Owners
If your A6 has the 4.2L V8 engine, you must pay close attention. These engines have a plastic coolant pipe connected to the oil cooler that is notorious for failing. It becomes brittle and can shatter, causing a sudden and massive coolant leak. This part is often called the "death pipe" by owners. 🎬 Watch this guide on tools and tips for V8 pipe replacement. When replacing the oil cooler on a V8, it is critical to upgrade this plastic pipe to a metal (billet aluminum) version to prevent future failure. Be aware that replacing the cooler and this pipe on the V8 is a very difficult job, often taking 10 or more hours due to its location deep in the engine bay.
Symptoms of a Bad Engine Oil Cooler
Spotting the signs of a failing oil cooler early can save you from catastrophic engine damage. Here’s what to look for:
- Oil and Coolant Mixing: This is the most severe symptom. A breach inside the cooler allows high-pressure engine oil to force its way into the cooling system. You will find a thick, sludgy, milky-brown substance in your coolant expansion tank, often called a "milkshake." This contamination ruins the cooling system's effectiveness and compromises the oil's ability to lubricate.
- External Leaks: You might see puddles of brown/black engine oil or pink/purple coolant on the ground under the front of your car. The oil cooler housing itself may appear wet or grimy from slow seepage.
- Engine Overheating: A significant coolant leak or an internal clog in the cooler can cause your engine to run hotter than normal or overheat completely.
- Warning Lights: Low oil levels or pressure from a leak can trigger the oil pressure warning light on your dashboard. Overheating can also trigger the engine temperature light.
Choosing the Right Aftermarket Oil Cooler
When replacing your oil cooler, you have several aftermarket options. Not all brands are created equal, and choosing the right one depends on your budget and quality expectations.
OEM-Quality Brands:
- Febi: Febi Bilstein is a well-regarded German company that often supplies parts directly to automakers. While they sometimes re-box parts from other manufacturers, their quality is generally considered reliable for European vehicles.
- Nissens: Based in Denmark, Nissens is a specialist in engine cooling and climate control parts. They are known for making quality radiators and coolers and are considered an OE-level manufacturer by many mechanics.
- Vemo: Vemo is another German brand that produces a wide range of automotive electronics and components. Their 'Q+' line signifies OEM quality, and they are a trusted name in the European aftermarket.
Value-Oriented Brands:

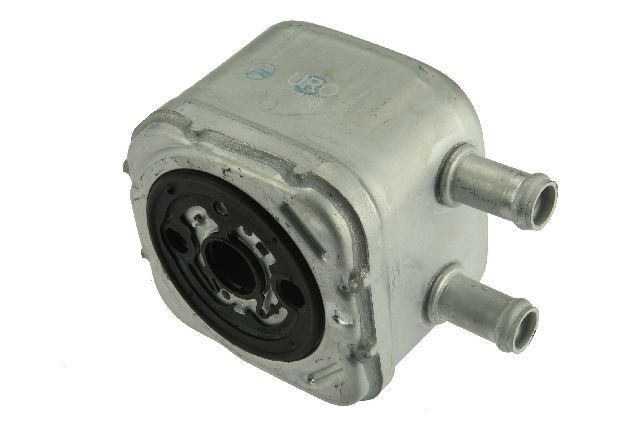

- URO Parts: URO Parts is known for providing budget-friendly alternatives. While their quality has improved over the years, they are still generally considered a lower-tier option compared to brands like Febi or Nissens. They can be a viable choice for non-critical repairs or if budget is the primary concern.

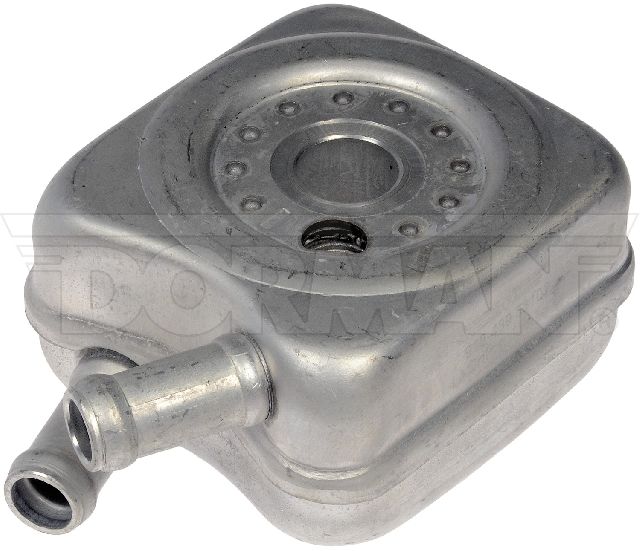

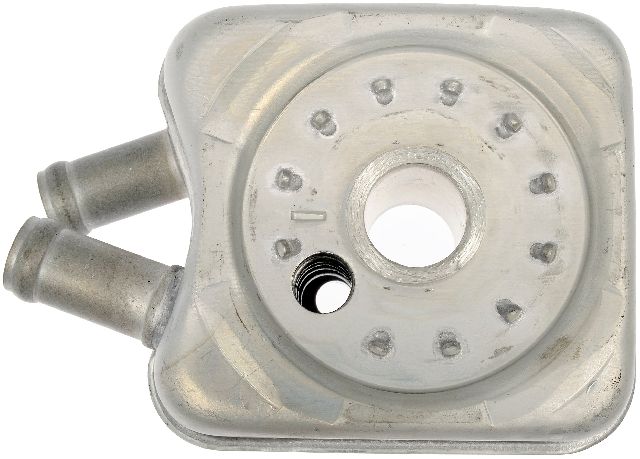

- Dorman: Dorman is a popular aftermarket brand in the US that often engineers "OE FIX" solutions to common problems. For some vehicles, they offer upgraded all-aluminum oil cooler housings to replace failure-prone plastic originals. 🎬 See what is included in the Dorman OE FIX housing kit. While generally seen as a value brand, their quality can be good, but some users recommend using OEM gaskets with Dorman parts for best results. 🎬 Learn the truth about Dorman aluminum coolers and seal quality.
| Tier | Brands | General Assessment |
|---|---|---|
| Tier 1 (OEM Quality) | Febi, Nissens, Vemo (Q+) | Excellent fit and durability, often from original equipment suppliers. Recommended for peace of mind. |
| Tier 2 (Standard Aftermarket) | Dorman, Vemo (Standard) | Good value and widely available. Quality is generally reliable for most applications. |
| Tier 3 (Budget) | URO Parts | Most affordable option. Can be a gamble on fit and longevity, but may suffice for older vehicles or immediate repairs. |
Frequently Asked Questions (FAQ)
Can I just replace the gasket instead of the whole oil cooler?
If your only problem is a minor external leak from the main seal between the cooler and the engine block, you can often just replace the gasket. However, if you have any signs of oil and coolant mixing, the entire oil cooler unit must be replaced because it has failed internally. Given the age of these vehicles, replacing the complete unit is often the safer bet.
Why is the replacement so much harder on the 4.2L V8?
On the V6 engines (like the 2.7T and 2.8L), the oil cooler is relatively accessible. On the 4.2L V8, the cooler is buried deep in the engine bay, behind an engine mount and the alternator. This requires extensive disassembly, making the labor time and cost significantly higher.
What other parts should I replace at the same time?
When replacing the oil cooler, it's wise to replace all associated seals and O-rings. On the 4.2L V8, you absolutely must replace the plastic coolant pipe with a metal one. Since you'll be draining the coolant and oil, it's a perfect time for an oil change with a new filter and a coolant flush.
Are there any recalls for the Audi A6 oil cooler?
Searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any specific recalls for the engine oil cooler on the 1995-2005 Audi A6. Recalls found were for different model years or different components.
Helpful Videos
Technical Specifications
OEM Part Numbers: 028117021E 077117021Q 028117021L 028117021K
The engine oil cooler for the Audi A6 C5 is a water-to-oil heat exchanger. It uses engine coolant to regulate the temperature of the engine oil. The design varies slightly between V6 and V8 engines.
