Audi A6 (1995-2005) Engine Water Pump Replacement Guide
Everything an owner needs to know about the engine water pump on the C5 generation Audi A6.
- The water pump is driven by the timing belt and MUST be replaced at the same time as the belt, typically every 60,000-90,000 miles.
- Failure to replace the water pump with the timing belt can lead to catastrophic engine failure if the pump seizes.
- Choose high-quality aftermarket brands like Graf, Saleri, Hepu, or a complete Gates timing kit for reliability.
- This is not a simple DIY job; it requires special tools and significant expertise. Professional installation is strongly recommended.
Understanding the Water Pump in Your 1995-2005 Audi A6
For Audi A6 models from this era, especially those with the popular 2.7T, 2.8L, and 4.2L engines, the water pump is a critical component with a finite lifespan. It is driven by the timing belt, which means it is buried deep in the front of the engine. Because of this location, replacing the water pump is a labor-intensive job. For this reason, it is almost always replaced at the same time as the timing belt, typically every 60,000 to 90,000 miles. A failing water pump bearing can damage the timing belt, and a failed timing belt will cause catastrophic engine damage.
Signs of a Failing Water Pump
A failing water pump usually gives warning signs. Ignoring them can lead to a breakdown and a much more expensive repair. Be aware of the following symptoms:
🎬 Watch this guide to diagnosing a failing water pump.- Coolant Leaks: This is the most common sign. You might see puddles of green, pink, or orange fluid under the front-center of your engine. The leak often comes from a small 'weep hole' designed to show when the internal seals are failing.
- Engine Overheating: If your temperature gauge starts climbing into the red, the water pump may not be circulating coolant effectively. Do not continue to drive an overheating car.
- Whining or Grinding Noises: A high-pitched whining sound from the front of the engine that changes with engine speed can indicate a failing bearing inside the water pump.
- Low Coolant Warning Light: A persistent low coolant light, even after topping it off, points to a leak somewhere in the system, with the water pump being a common culprit.
A Critical Connection: The Timing Belt
On most 1995-2005 A6 engines, the water pump is driven by the timing belt. A seized water pump can shred the timing belt, leading to bent valves and destroyed pistons. Because the labor to access the water pump is the same as the labor for the timing belt, it is absolutely essential to replace them together. Never replace just the timing belt without also replacing the water pump.
Choosing the Right Aftermarket Water Pump
While an OEM (Original Equipment Manufacturer) water pump is available from the dealer, the aftermarket offers a wide range of quality options, often at a better price. For a part this critical, it's important to choose a reputable brand. Here’s a breakdown of common aftermarket brands:
- Premium Aftermarket (OEM Supplier Quality): Brands like Graf, Saleri, and Hepu are often original equipment suppliers to German automakers. They are known for high-quality castings and reliable bearings. Many owners in forums prefer these brands, particularly those with metal impellers for perceived durability over older plastic designs.
- Trusted Aftermarket Brands: Gates is a well-known brand, especially for their comprehensive timing belt kits that include a water pump. While the components may be sourced globally, Gates has a solid reputation. Beck/Arnley sources parts from various manufacturers to match OE specifications and is generally considered a reliable choice. GMB is another established brand with a reputation for quality.
- Budget-Friendly Options: Brands like URO Parts, US Motor Works, and Airtex offer more affordable alternatives. While URO has improved over the years with its 'URO Premium' line, its standard parts have a mixed reputation in owner forums, with some reporting early failures. For a labor-intensive job like this, saving a few dollars on the part itself is often not worth the risk of a premature failure.
Pro Tip: Metal vs. Composite Impeller
Early Audi water pumps sometimes used plastic impellers that could become brittle and fail. Aftermarket replacements often feature either a more robust composite material or a stamped/cast metal impeller. While some prefer metal for its perceived strength, a well-designed modern composite impeller is also very reliable and can be lighter, putting less stress on the bearing. Brands like Graf, Hepu, and Saleri are trusted with either design.
Known Issues, Recalls, and TSBs
While searches for the 1995-2005 A6 did not show specific water pump recalls on the NHTSA website, later model Audis have had recalls for electric auxiliary coolant pumps. There are no widespread recalls or Technical Service Bulletins (TSBs) for the main, belt-driven water pump on the C5-generation A6. However, there was a TSB related to relocating the electric after-run coolant pump on the 2.7T engine to a cooler location to prevent heat-related failure.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $57 - $135 |
| New OEM Water Pump | $150 - $250+ |
| Shop Labor (Includes Timing Belt Service) | $800 - $1500+ |
Frequently Asked Questions (FAQ)
Should I buy a timing belt kit that includes the water pump?
Yes, absolutely. This is the most cost-effective and reliable way to do the job. Kits from reputable brands like Gates or INA ensure all the related wear-and-tear components (belt, tensioners, idlers, water pump) are replaced at once with parts designed to work together.
Can I replace just the water pump myself?
This job is considered difficult and requires special tools to lock the engine's camshafts and crankshaft in place. Incorrect timing can destroy the engine. Due to the complexity, it is not recommended for a DIY mechanic without significant experience and the correct tools.
🎬 See the complex process of an Audi water pump replacement.How do I know which brand to trust?
Stick with brands that are known OEM suppliers or have a long-standing positive reputation in the European car community. Graf, Saleri, and Hepu are excellent choices. A complete timing belt kit from Gates is also a very common and reliable repair method.
What coolant should I use after replacing the pump?
Using the correct coolant is critical. Your Audi A6 requires a specific type of coolant (typically G12 or a compatible equivalent). Using the wrong type or mixing coolants can cause corrosion and premature failure of the new water pump and other cooling system components.
Helpful Videos
Technical Specifications
OEM Part Numbers: 078121004CX 078121006 078121006X

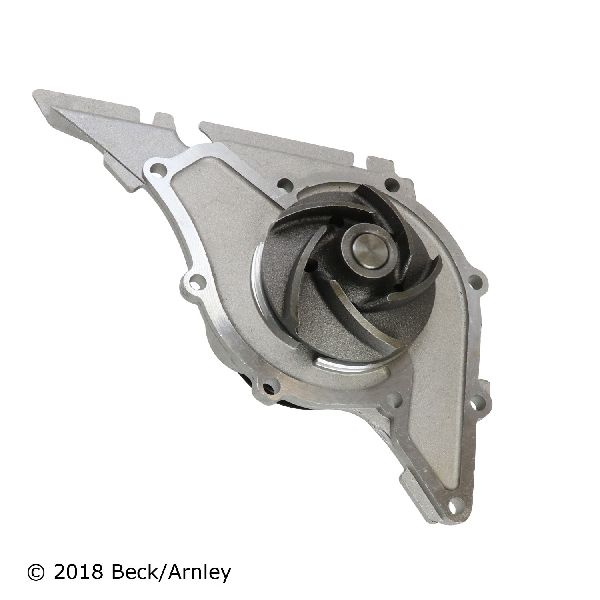

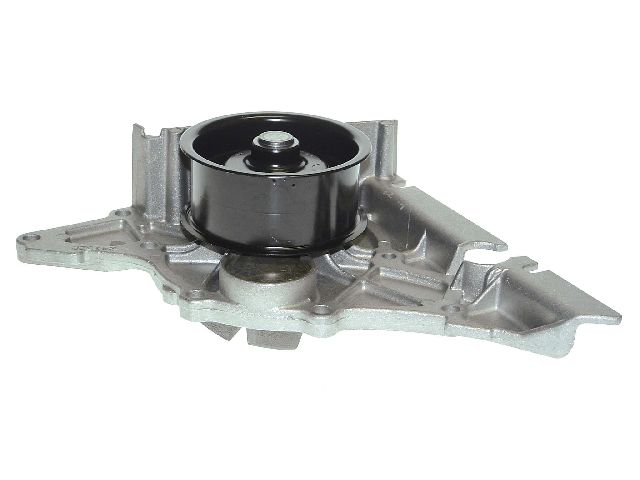

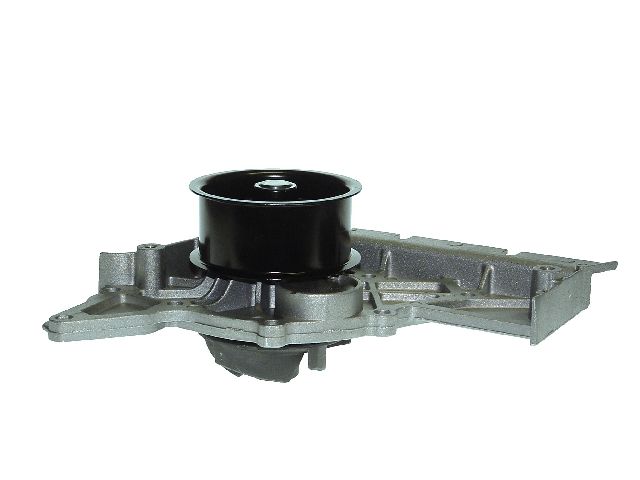

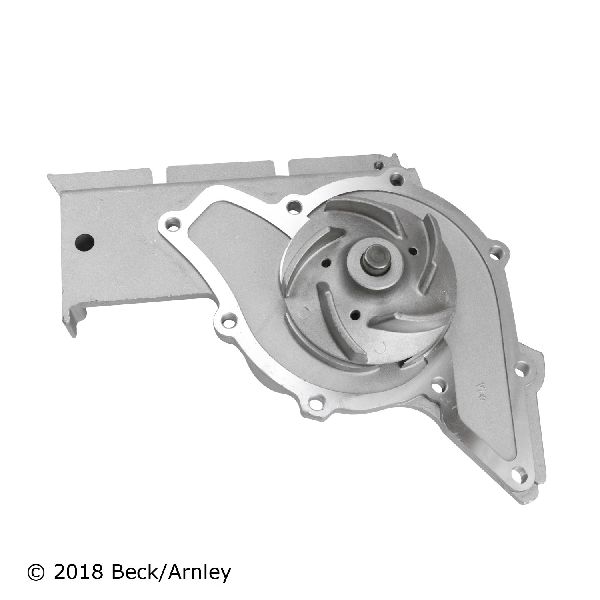

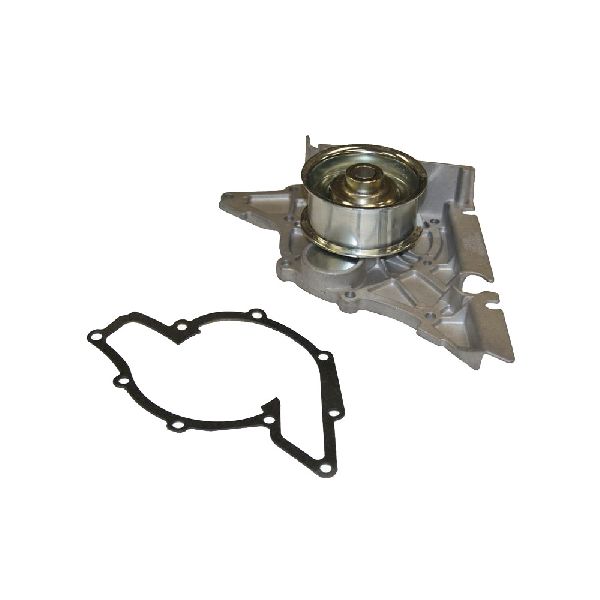

The water pump on the 1995-2005 Audi A6 is a mechanical, belt-driven pump. For most V6 and V8 engines in this chassis, it is driven by the timing belt. It typically features a cast aluminum housing and either a metal or composite impeller.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
