Guide to the 1995-2005 Audi A6 (C5) Ignition Switch
Experiencing starting problems or weird electrical issues? Your ignition switch might be the culprit.
- A failing ignition switch causes a wide range of electrical issues, not just starting problems.
- Before replacing the switch, rule out a weak battery and check for water damage under the driver's carpet, a known A6 issue.
- You are replacing only the electrical switch, not the key cylinder. You will use your existing keys.
- Aftermarket brands like Vemo, Standard, and URO Parts are reliable, cost-effective alternatives to the OEM part.
Is Your Audi A6 Ignition Switch Failing?
A faulty ignition switch in the 1995-2005 (C5) Audi A6 is a common issue that can cause confusing electrical problems. Because the symptoms can seem random, it's often misdiagnosed. Before assuming the switch is bad, always check that your battery is fully charged and the terminals are clean, as a weak battery can cause similar issues.
Top 5 Failure Symptoms
- Car Won't Start or Crank: You turn the key, the dashboard lights up, but nothing happens. You may hear a click from a relay, but the starter motor doesn't engage. This happens when the switch fails to send power to the starter.
- Starts and Immediately Stalls: The engine fires up when you're cranking it but dies as soon as you release the key to the "On" position. This indicates the switch is failing to power the fuel or ignition systems once the engine is running.
- Intermittent Electrical Problems: Your radio, power windows, or dashboard lights may flicker or stop working randomly. This can happen if the switch's internal contacts are worn and losing connection.
- Stalling While Driving: In more serious cases, the switch can lose connection while you're on the road, cutting power to the engine and causing it to stall. This is a significant safety risk.
- Key Feels 'Off' or Gets Stuck: While often related to the mechanical lock cylinder, difficulty turning the key or having it not spring back correctly from the 'start' position can also be a sign of a failing electrical switch behind it.
Water Damage Can Cause Similar Issues
The C5 Audi A6 is known for potential water leaks from clogged sunroof drains or under the battery tray. This water can collect under the driver's side carpet and damage the Convenience Control Module (CCM), causing very similar electrical problems like non-working windows and interior lights. Before replacing the ignition switch, check for dampness or a musty smell in the driver's footwell.
Choosing the Right Aftermarket Ignition Switch
When replacing the ignition switch, you don't necessarily need to pay for a genuine Audi part. Several aftermarket brands offer quality replacements at a much lower cost. Here's a breakdown of what to expect.
| Brand Tier | Brands | What to Expect |
|---|---|---|
| Premium Aftermarket | Vemo, Standard Ignition | These brands are known for producing parts that often meet or exceed OEM specifications. Vemo is a German brand with a reputation for quality in European car parts. Standard Motor Products (Standard Ignition) is a well-regarded manufacturer. Expect a good fit and long service life, making them a reliable choice. |
| Quality Aftermarket | URO Parts, Dorman | URO Parts specializes in European vehicle parts and often provides a good balance of quality and price. Dorman is a popular aftermarket brand that produces a huge range of parts; their quality can be inconsistent, but they are generally a cost-effective solution that fits correctly. For a part like an ignition switch, these brands are a viable option for a daily driver. |
| Economy | Replacement | This is typically a generic or house brand. While the most affordable, the long-term durability may not match that of premium brands. These are best for a budget-focused repair, but be aware that you may be replacing it again sooner than you would with a higher-tier part. |
Pro Tip: It's Just the Electrical Switch
Remember, you are replacing the electrical switch, not the lock cylinder your key goes into. You will continue to use your original keys. The switch is held in by two small screws and unplugs from the wiring harness. No key programming is required for this repair.
Frequently Asked Questions (FAQ)
Is it hard to replace the A6 ignition switch myself?
It's a moderately difficult job that a DIYer can handle. The main challenge is accessing the switch. The official procedure requires removing the airbag and steering wheel. However, many owners have successfully replaced it by only removing the steering column covers, which is much simpler. You will need small screwdrivers and patience, as the screws holding the switch are small and can be hard to reach.
Are there any recalls for the 1995-2005 Audi A6 ignition switch?
Searches on the NHTSA database did not show any specific recalls for the ignition switch itself on the 1995-2005 Audi A6. There was a recall investigation in 2004 for wiring problems in the dashboard area that could cause fires on 1998-2004 models, but this was not directly tied to the switch. One owner reported an issue with their key turning too far, which could be related.
What's the difference between the ignition switch and the lock cylinder?
The lock cylinder is the mechanical tumbler that you insert your key into. The ignition switch is the electronic part behind it that actually sends power to the car's systems. They are separate parts on the C5 A6. If your key is physically hard to turn or getting stuck, the problem might be the lock cylinder, but if you have electrical issues, the switch is the more likely culprit.
Could a bad starter or alternator be the problem instead?
Yes. A no-crank situation could be a bad starter, and widespread electrical issues or a dead battery could point to a failing alternator. However, if your accessories (radio, windows) work intermittently and the car sometimes starts and sometimes doesn't, the ignition switch is a very strong possibility. It's important to diagnose the issue correctly to avoid replacing the wrong parts.
Technical Specifications
OEM Part Numbers: 4B0905849 4A0905849B

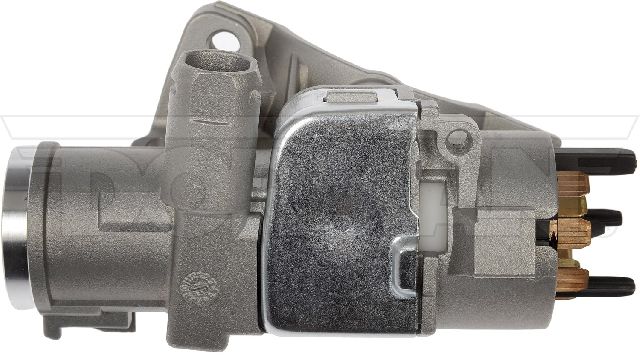

This is the electrical switch portion only, located on the back of the ignition lock housing. It typically has an 8-pin connector.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
