A Complete Guide to the Engine Timing Set for the 1995-2005 Buick Regal
Keep your Regal's durable 3.8L V6 engine running smoothly and reliably for miles to come.
- The 3.8L V6 is a non-interference engine, so a broken chain is unlikely to destroy the engine but will leave you stranded.
- The most common symptom is a rattling noise on startup, indicating a worn plastic tensioner.
- Always replace the complete timing set (chain, sprockets, tensioner, guides) and the water pump at the same time to save on future labor.
- This is not a common failure; the original parts are very durable and often last over 150,000 miles.
Is Your Buick Regal's Timing Set Failing?
The GM 3.8L V6 engine in the 1995-2005 Buick Regal is famous for its long life, and its timing chain system is no exception. Many owners see well over 150,000 miles on the original parts. However, no part lasts forever. The most common failure isn't the metal chain itself, but the plastic tensioner or damper that keeps the chain tight. When these parts wear out or break, the chain becomes loose, which can lead to noise and performance problems.
Good News: The 3.8L is a Non-Interference Engine
The Buick 3.8L V6 is a non-interference engine. This means that if the timing chain were to break completely, the pistons would not hit and damage the valves. While a broken chain will leave you stranded, it is very unlikely to cause the catastrophic internal engine damage that can occur in many other modern engines.
Signs of a Worn Timing Set
- Rattling Noise on Startup: This is the most common sign. You may hear a brief, loud rattling or scraping sound for a few seconds when you first start the engine. This noise comes from the loose timing chain slapping against the inside of the timing cover 🎬 See how a failing harmonic balancer can mimic engine knocking. before oil pressure builds up to tighten the tensioner.
- Persistent Engine Noise: If the wear is severe, the rattling or whirring noise may not go away as the engine warms up.
- Check Engine Light: A significantly stretched chain can affect engine timing enough to trigger a Check Engine Light. You might see code P0016 (Crankshaft Position - Camshaft Position Correlation), which usually points to advanced wear.
- Engine Performance Issues: In the late stages of failure, you might notice a rough idle, engine hesitation, or a general lack of power as the camshaft and crankshaft are no longer perfectly in sync.
Choosing the Right Aftermarket Timing Set
For a vehicle of this age, a high-quality aftermarket timing set offers the best balance of performance and value. The original parts have proven durable, but you can get similar quality from a reputable aftermarket brand for less money. Always buy a complete kit that includes the chain, sprockets, tensioner, and damper. Replacing just the chain is a mistake, as worn sprocket teeth will cause a new chain to wear out very quickly.
Brand Quality Tiers

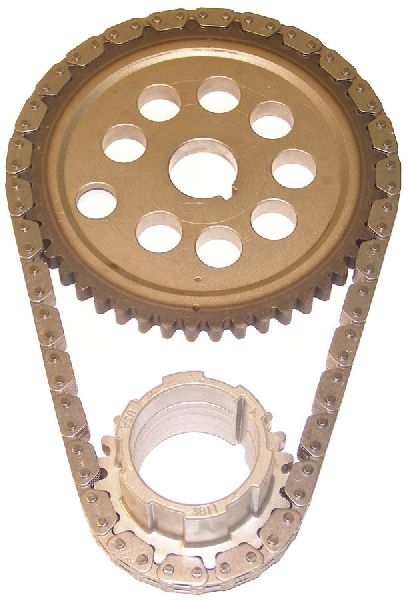

- Tier 1 (High Quality): Brands like Cloyes and Melling are well-regarded in the industry for timing components. They are known for meeting or exceeding original factory performance requirements and are a reliable choice for a complete and lasting repair.
- Tier 2 (Standard Quality): Brands like INA are often OEM suppliers and provide good quality parts.
- Tier 3 (Economy): Budget-friendly brands like Skyward can be an option, but for a labor-intensive job like this, investing in a higher-quality kit is strongly recommended to ensure longevity.
A Note on Camshaft Sprockets
Some mechanics specifically recommend using a genuine GM camshaft sprocket. The concern is that some aftermarket steel sprockets can become magnetized by the nearby camshaft position sensor, potentially causing a 'cam sync' error code. The original GM sprocket is aluminum to prevent this issue. When choosing a kit, be aware of this potential issue and consider using an OEM cam sprocket if you have concerns.
Estimated Replacement Costs
The cost to replace the timing set can vary based on your location and the parts you choose. The majority of the cost is labor due to the number of components that must be removed to access the timing cover.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $55 - $185 |
| New OEM Timing Set | $150 - $250 |
| Shop Labor | $600 - $1,200 |
| Total Professional Job | $750 - $1,450 |
What Else Should I Replace?
Since the job requires removing the water pump to get the timing cover off, it is highly recommended to replace the water pump at the same time. This will save you from paying for the same labor all over again in the near future. It is also a good time to replace the front crankshaft seal.
Frequently Asked Questions (FAQ)
Is the 3.8L V6 timing chain a common problem?
No, it is not considered a common problem. The engine is well-known for its durability, and the timing components often last over 150,000 miles. Failures typically happen at high mileage and are usually due to the plastic tensioner wearing out, not the chain itself.
Are there any recalls for the timing chain?
No, there have been no safety recalls issued by the NHTSA for the timing chain on the 1995-2005 Buick Regal. There was a well-known recall for oil leaks from the valve cover gasket causing a fire risk on 1997-2003 models, but this issue is unrelated to the timing chain components.
Can I do this job myself (DIY)?

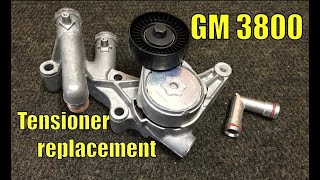

This job is recommended for experienced DIY mechanics. It requires significant disassembly of the front of the engine, including the serpentine belt, 🎬 Learn how to properly replace the accessory belt tensioner. engine mounts, and harmonic balancer, which requires a special puller tool. An error during installation can cause performance issues. For most beginners, it is best left to a professional.

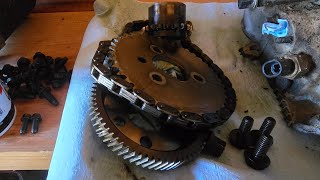

🎬 Watch this full walkthrough of a 3800 timing chain replacement.My mechanic found metal shavings in the oil. Is that from the timing chain?
It's possible. If the chain has been slapping against the aluminum timing cover, or if the sprockets are heavily worn, it can create metal shavings. However, metal shavings can also indicate more serious internal engine problems, so a thorough diagnosis is needed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 24503066

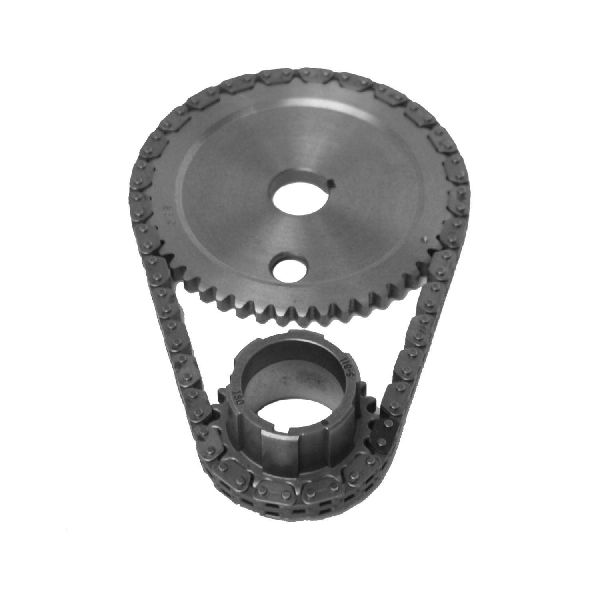

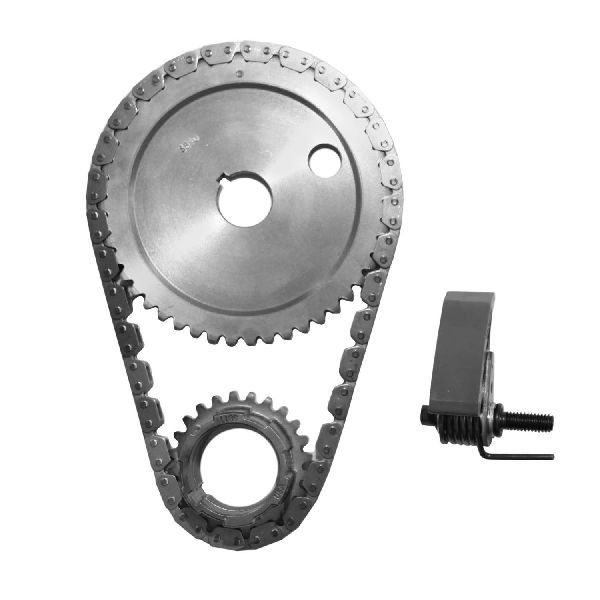

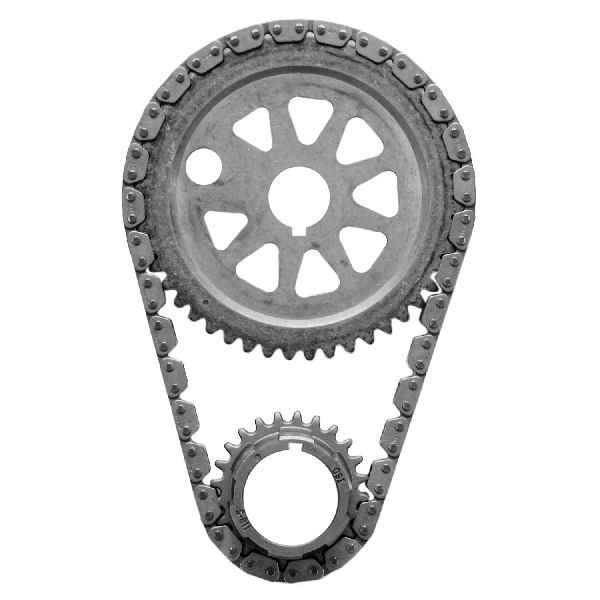

The timing system for the GM 3.8L V6 (3800 Series II) engine consists of a single timing chain, a camshaft sprocket, a crankshaft sprocket, a hydraulically-assisted tensioner, and a damper. The camshaft sprocket is made of aluminum from the factory.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
