Chevrolet Astro Windshield Washer Pump Guide (1995-2005)
A complete guide to diagnosing and replacing the front or rear windshield washer pump on your Astro van.
- The 1995-2005 Astro has two separate washer pumps (front and rear) on the same reservoir; ensure you order the correct one.
- Diagnose before buying: If you hear the pump motor run, the problem is likely a clog, not a failed pump.
- Replacement is a simple, fast DIY job that requires basic tools and costs significantly less than a shop repair.
- Quality aftermarket brands like Trico and ACDelco offer reliable, cost-effective replacements.
Is Your Windshield Washer Pump Failing?
A broken windshield washer pump is more than an annoyance; it can be a safety hazard in bad weather. If your 1995-2005 Chevrolet Astro's washers aren't working, the pump is a likely suspect. Here are the common signs of failure.
Symptoms of a Bad Washer Pump
- No Sound, No Fluid: When you activate the washer switch, you should hear a faint humming or whirring sound from the pump motor under the hood. If you hear nothing and no fluid comes out, the pump has likely failed electrically or isn't getting power. First, check the fuse before replacing the pump.
- Sound, But No Fluid: If you can hear the pump motor running but no fluid sprays on the glass, the problem could be an empty reservoir, clogged spray nozzles, clogged lines, or a blockage in the pump's filter. It could also mean the hose has disconnected from the pump.
- Weak or Uneven Spray: If the fluid just dribbles out or doesn't reach the whole windshield, the pump may be getting weak and failing to create enough pressure. This can also be caused by partially clogged nozzles.
- Leaking Fluid: If you notice washer fluid pooling under the front of your van, the reservoir tank may be cracked, or the pump's rubber grommet seal has failed. Older GM pumps can also develop leaks from internal O-rings.
Important: Your Astro Has Two Pumps
Remember, your Astro uses two separate pumps: one for the front windshield and one for the rear window. When ordering a replacement, you must specify which pump you need. The bottom-most pump on the reservoir is typically for the front windshield.
Choosing the Right Aftermarket Pump: ACDelco vs. Trico
For a vehicle like the 1995-2005 Astro, you don't need to pay dealership prices for a quality replacement. Both ACDelco and Trico offer reliable aftermarket options that provide excellent value.

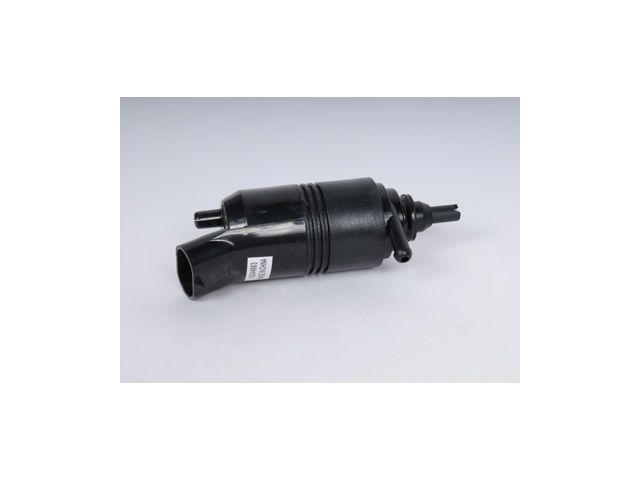

ACDelco Pumps
ACDelco is GM's official parts brand, and their aftermarket pumps are designed to be direct replacements for the original factory part. Choosing ACDelco ensures the same performance and durability you'd expect from General Motors. While many original parts were made in the USA, be aware that many modern ACDelco replacement parts are manufactured globally.

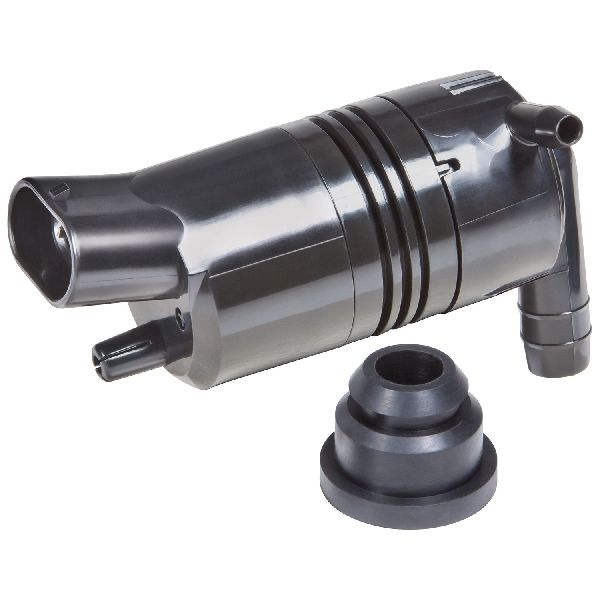

Trico Pumps
Trico is a well-respected brand, famous for wiper blades, that also produces high-quality washer system components. Their pumps are designed to meet or exceed OEM specifications, ensuring a perfect fit and easy installation. They are often a more budget-friendly choice than ACDelco while still offering dependable performance, making them an excellent value for this repair.
Mechanic's Pro-Tip
Before you buy a new pump, have a friend activate the washer switch while you listen near the washer fluid tank (located in the engine bay, combined with the coolant overflow). If you hear a humming sound, the pump is getting power and the issue is likely a clog, not a failed motor. You can try cleaning the spray nozzles with a small pin to see if that solves the problem.
Replacement Cost
Replacing a washer pump on the Astro is a very DIY-friendly job that can be done in under an hour. If you choose to have a shop do it, expect to pay for about 30-60 minutes of labor.
| Item | Typical Cost |
|---|---|
| New Aftermarket Pump (ACDelco, Trico) | $20 - $68 |
| Shop Labor | $61 - $90 |
| Total Professional Replacement | $97 - $221 |
Frequently Asked Questions
Is the front and rear washer pump the same part?
No. While they look similar and mount to the same reservoir, the Chevrolet Astro uses two distinct pumps for the front and rear systems. You must order the specific pump (front or rear) that you are replacing.
How do I know if it's the pump or just a clog?
Listen for the pump motor. If you hear it humming when you activate the switch, the pump is likely working. In this case, the problem is probably a clog in the lines or nozzles, or the fluid is frozen. If you hear nothing, the pump motor is likely dead or the fuse is blown.
How difficult is it to replace the washer pump myself?
This is a very easy repair for a DIYer. It typically involves removing the air intake box for access, unplugging the electrical connector, pulling off the hose, and pulling the old pump out of its rubber grommet on the reservoir. The new pump presses right back in. The entire job usually takes less than an hour with basic tools.
Where is the washer pump located on my Astro?
The two washer pumps are press-fit into the side of the combination coolant overflow and washer fluid reservoir. This tank is located in the engine compartment, typically on the driver's side.
Technical Specifications
OEM Part Numbers: 22127652 22127653 89025062 89001122 19244681
Vehicle uses two separate pumps for front and rear washers. Pumps are press-fit into a shared coolant/washer fluid reservoir.
