A Comprehensive Guide to the Starter Motor for the 1995-2005 Chevrolet Cavalier
If your Cavalier clicks but won't start, this guide will help you diagnose the problem and find the right replacement starter.
- Always test the battery and clean the cable connections before assuming the starter is bad; this solves the issue for many Cavalier owners.
- A quality new aftermarket starter from a brand like ACDelco or an MPA-sourced store brand offers the best combination of quality and value for this vehicle.
- Replacing the starter is a straightforward DIY job for those with basic tools, requiring access from under the vehicle.
- Symptoms like a single click, slow crank, or intermittent starting are classic signs of a failing starter on the Cavalier.
Is Your Cavalier's Starter Failing?
A no-start condition is the most common reason to suspect a bad starter. However, on the 1995-2005 Chevrolet Cavalier, several other issues can mimic a failed starter. Before spending money on a new part, it's crucial to rule out these simpler problems.
Check Your Battery and Cables First!
A weak or dead battery is the number one cause of a no-start or a 'clicking' sound. Likewise, the side-post battery terminals on Cavaliers are known to develop corrosion that can be hard to see but will prevent the high current needed to turn the starter. Always clean your battery terminals and have your battery load-tested before replacing the starter. Many owners have replaced a starter only to find the real issue was a bad battery connection.
Symptoms of a Failing Starter on a Cavalier
- Single, Loud Click, But No Crank: You turn the key and hear one solid 'click' from the engine bay, but the engine doesn't turn over. This usually means the starter solenoid is engaging, but the motor itself is failing to spin.
- Slow, Labored Cranking: The engine turns over much slower than usual, as if the battery is weak. A failing starter can draw excessive current, causing this symptom.
- Intermittent Starting: The car starts fine one day but refuses to crank the next. This can be caused by worn brushes or 'dead spots' inside the starter motor. Sometimes, tapping the starter with a wrench can temporarily get it to work, which is a strong sign the starter is the culprit.
- Grinding or Whirring Noise: A loud grinding sound when you try to start the engine can indicate a damaged starter gear or flywheel teeth. A high-pitched whirring sound means the starter motor is spinning but not engaging the engine.
- Smoke from the Starter: If you see or smell smoke coming from the starter area, it's a sign of a severe electrical short and the starter needs immediate replacement.
Choosing the Right Aftermarket Starter
For a vehicle like the 1995-2005 Cavalier, a new aftermarket starter is a cost-effective and reliable choice. The original equipment starters were not known for major flaws, but after two decades, any original part is living on borrowed time. Aftermarket brands often incorporate modern improvements in materials and design.
Brand Quality: ACDelco vs. MPA
- ACDelco: As GM's official parts brand, ACDelco is a trusted name. Their 'Gold' (formerly 'Professional') line of parts are high-quality aftermarket options designed to meet or exceed original specifications. They are a solid, reliable choice for your Cavalier.
- MPA (Motor Parts of America): MPA is a leading manufacturer of aftermarket starters and alternators. While you may not see the MPA name on the box, they supply many major auto parts store brands like Duralast and Carquest. These starters are known for their reliability and often come with a limited lifetime warranty, making them an excellent value.
Pro Tip: For this vehicle, there is no significant quality gap that justifies paying a premium for a dealer-sourced OEM part. A new or remanufactured starter from a reputable aftermarket brand like ACDelco or an MPA-sourced store brand will provide excellent service and value.
Cost of Replacing a Cavalier Starter
The cost can be broken down into parts and labor. Doing the job yourself can save a significant amount of money.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter (ACDelco, MPA, etc.) | $99 - $233 |
| Shop Labor (1.0 - 1.5 hours) | $120 - $250 |
| Total Professional Replacement | $219 - $483 |
Frequently Asked Questions (FAQ)
Is replacing the starter on a 1995-2005 Cavalier a DIY job?
Yes, for most home mechanics with a decent set of tools, this is a very manageable job. Access is from underneath the car, so you will need a jack and jack stands for safety. The starter is held on by two bolts and a few electrical connections. The entire process should take 1-2 hours.
Where is the starter located on the Cavalier?
On most engines (2.2L OHV, 2.2L Ecotec), the starter is located on the bottom of the engine, at the point where the engine connects to the transmission. You will need to lift the front of the vehicle to access it. On some 2.4L Twin Cam models, the starter may be located on top of the transmission, making it accessible from the engine bay.
Are there any recalls for the starter on this Cavalier?
No, there are no specific recalls issued by the NHTSA for the starter motor itself on the 1995-2005 Chevrolet Cavalier. There was a recall for the ignition switch on 1995-1997 models, which is part of the starting system, but it did not involve the starter motor directly.
Do I need to use shims when installing the new starter?
Sometimes. A shim is a thin metal spacer used to adjust the distance between the starter gear and the flywheel. Some older GM vehicles required them. While not always necessary for the Cavalier, if your old starter had shims, you must reinstall them with the new starter in the same configuration. If the new starter makes a loud grinding or whining noise, it may need to be shimmed.

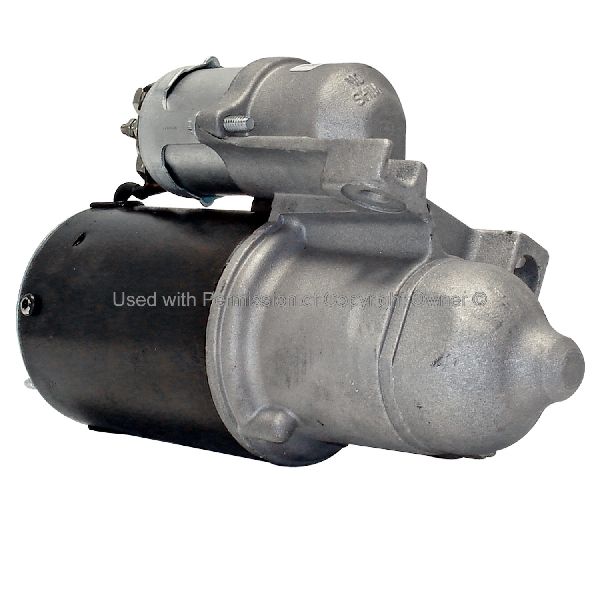

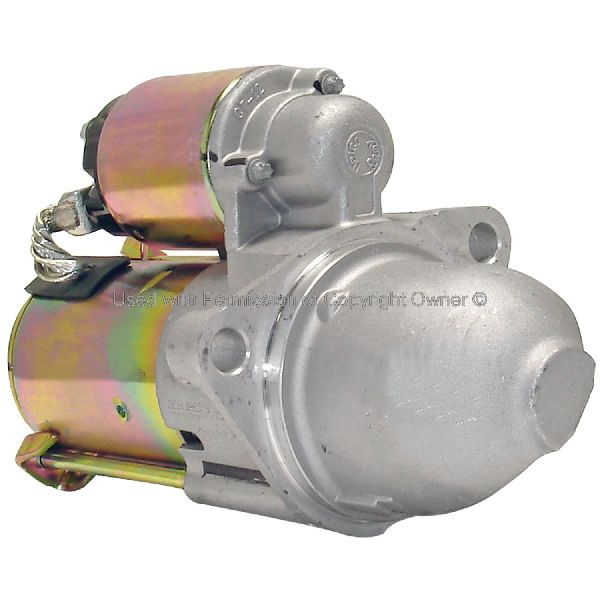

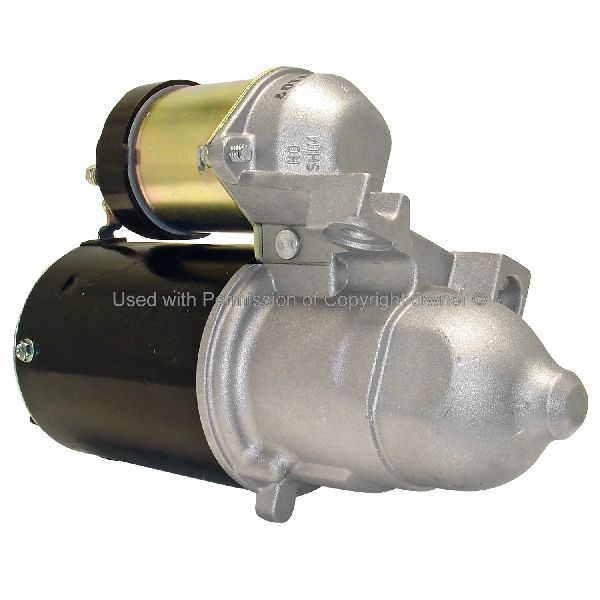

Technical Specifications
OEM Part Numbers: 10465553 10465551 19136242 9000977 9000959
The starter for the 1995-2005 Cavalier is a 12-volt, direct-drive motor. It mounts to the engine block or transmission bellhousing with two 15mm bolts. Electrical connections consist of a large post for the positive battery cable and a smaller post for the ignition switch signal wire.
