Chevrolet S10 Camshaft Position Sensor: 1995-2005 Problems and Replacement
Fix stalling, rough idling, and no-start conditions on your S10 by understanding this critical engine sensor.
- On 4.3L V6 engines, the sensor is inside the distributor; inspect the distributor gear for wear during replacement.
- On 2.2L 4-cylinder engines, the sensor is a simple, single-bolt replacement on the back of the engine.
- A failing sensor can cause serious issues like stalling, hard starts, and poor acceleration.
- For best results, choose OEM-grade brands like ACDelco or Delphi to avoid premature failure.
Understanding the S10 Camshaft Position Sensor
The camshaft position sensor, or CMP, is a small but essential electronic device that reads the rotation of your engine's camshaft. The 1995-2005 Chevrolet S10 was available with two main engines, the 2.2L 4-cylinder and the 4.3L V6, and the sensor's location and design differ significantly between them.
- For the 4.3L V6 engine: The camshaft position sensor is located inside the distributor, at the back of the engine. It is often replaced as part of the entire distributor assembly, especially if the distributor gear is worn.
- For the 2.2L 4-cylinder engine: The sensor is a more conventional, standalone part. It is typically found on the back of the cylinder head, near the firewall, and is held in by a single bolt.
Common Symptoms of a Failing Camshaft Sensor
When the camshaft position sensor starts to fail, it can cause a range of problems from annoying to severe. Because the sensor's signal is so important for engine timing, a bad sensor can make your truck run poorly or not at all.
- Check Engine Light: This is often the first sign. A code like P0340, P0341, or P0342 will be stored in the truck's computer. 🎬 See how to diagnose and fix the P0340 trouble code.
- Engine Stalling: The engine may stall unexpectedly while driving or when idling at a stop. This can be a serious safety issue.
- Hard Starting or No Start: The truck may take longer than usual to start, or it may just crank without firing up.
- Rough Idle and Misfires: The engine may shake, idle unevenly, or you might feel it misfiring.
- Poor Acceleration: A lack of power and hesitation when you press the gas pedal is a common symptom. 🎬 Watch a breakdown of the most common bad sensor symptoms.
A Note for 4.3L V6 Owners
On the 4.3L V6 engine, the gear at the bottom of the distributor drives the oil pump and the distributor itself. This gear can wear out over time. A worn gear can cause erratic timing signals and damage a new camshaft position sensor quickly. If you are replacing the sensor, it is critical to inspect the distributor gear for sharp, knife-edged teeth. If wear is present, replacing the entire distributor assembly is the recommended repair.
🎬 Watch this step-by-step guide on replacing the S10 distributor assembly.Choosing the Right Aftermarket Camshaft Sensor
When it comes to engine sensors, quality and reliability are key. While many budget-friendly options are available, a poor-quality sensor can fail quickly, leaving you with the same problem. Here’s a breakdown of available brands.
Tier 1: OEM and OE-Equivalent Brands
These brands are known for providing parts to General Motors or for having a reputation for equivalent quality. They are the most reliable choice for a long-lasting repair.
- ACDelco: As the genuine GM parts brand, this is the original equipment manufacturer. Choosing ACDelco ensures you are getting the same part your truck was built with. There are different lines, with the "Professional" or "GM Original Equipment" being the top choice.

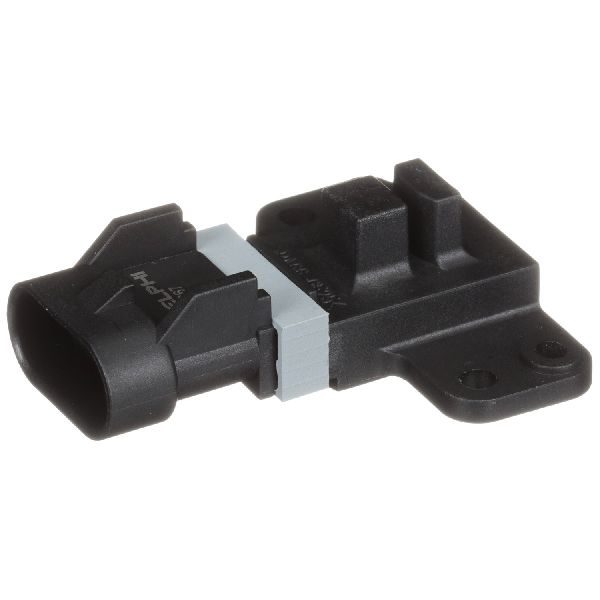

- Delphi: Delphi is a major OE supplier for many car manufacturers, including GM. Their sensors are widely considered to be of the same high quality as genuine OEM parts and are an excellent alternative.
Tier 2: Reputable Aftermarket Brands
These brands have a solid reputation for producing quality electronic components and are a good balance between cost and reliability.
- Standard Motor Products (SMP): A long-standing brand in the aftermarket, often sold under names like Standard and Intermotor. They generally produce reliable sensors.
- NGK/NTK: While famous for spark plugs, NTK (the sensor division of NGK) is a major OE sensor supplier and makes high-quality replacement parts.
- Hitachi: Another well-respected OE supplier, Hitachi sensors are known for their quality and durability.
Tier 3: Value Brands
These brands offer the most budget-friendly options. While they can save you money upfront, forum discussions and mechanic experiences suggest a higher likelihood of premature failure or out-of-the-box issues.
- Dorman: Dorman is known for providing a wide range of aftermarket parts, but their quality on electronic components can be inconsistent. It's often considered a last resort by many professionals if an OE-quality part isn't available.
- Other Store Brands (e.g., Spectra, Global Parts): These are typically re-boxed parts from various manufacturers. Quality can be a gamble.
Pro Tip: For a critical sensor like the camshaft position sensor, spending a little more on a reputable brand like ACDelco, Delphi, or NTK can save you from doing the job twice.
Cost of Replacing the S10 Camshaft Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (ACDelco) | $70 - $120 |
| New Aftermarket | $24 - $114 |
| Shop Labor | $110 - $161 |
| Total (Shop Repair) | $134 - $281 |
Frequently Asked Questions (FAQ)
Where is the camshaft position sensor located on my S10?
On 4.3L V6 engines, it's inside the distributor at the rear of the engine. On 2.2L 4-cylinder engines, it's typically on the back of the cylinder head, held in by a single 8mm bolt.
Can I replace the camshaft position sensor myself?
Yes, this is a DIY-friendly job for many owners. For the 2.2L, it involves removing a single bolt and electrical connector. For the 4.3L, it requires removing the distributor cap and rotor, which is slightly more involved but still manageable with basic tools. The difficulty is low, and it typically takes less than an hour.
Do I need to perform a relearn procedure after replacement?
Generally, for this generation of S10, a specific camshaft position sensor relearn procedure is not required. However, it is always a good practice to clear the diagnostic trouble codes with a scan tool after the repair is complete.
What is the most common trouble code for a bad cam sensor?
The most common code is P0340, which indicates a malfunction in the camshaft position sensor circuit. This doesn't always mean the sensor itself is bad; it could also be a wiring or connection issue.
Are there any recalls for the S10 camshaft position sensor?
A search of the National Highway Traffic Safety Administration (NHTSA) database did not reveal any specific recalls for the camshaft position sensor on the 1995-2005 Chevrolet S10. Some general engine-related Technical Service Bulletins (TSBs) exist but are not directly focused on this specific part for the S10.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10485432 19417445 12570426
The sensor for the 4.3L V6 is a Hall-effect sensor located within the distributor assembly. The sensor for the 2.2L I4 is a standalone magnetic sensor. Both use a 3-pin connector.
