Dodge Neon Engine Oil Pressure Switch: A Complete Guide (1995-2005)
Is your Dodge Neon's oil light flickering or leaking? This guide covers common symptoms, replacement costs, and how to choose the right part.
- A flickering oil light is a critical warning; always check the oil level first before proceeding.
- Failure of the oil pressure switch, including leaking and false warnings, is a common issue on Dodge Neons.
- Replacement is a simple, low-cost DIY job that requires a special 1 1/16" deep socket.
- Quality aftermarket brands are a reliable and cost-effective alternative to more expensive OEM parts for this repair.
Is Your Neon's Oil Light Trying to Tell You Something?
A flickering or constantly lit oil pressure light on your Dodge Neon's dashboard is a serious warning. While it can indicate a genuinely low oil pressure problem, it's often caused by a faulty engine oil pressure switch. This is a common failure item on many vehicles, including the Neon. The switch itself can fail in a few ways: it might start leaking oil, send false signals, or fail to activate when there's a real problem.
Stop and Check Your Oil First!
Before assuming the switch is bad, always check your engine oil level immediately. If the oil level is low, top it off. If the light goes out, you may have an oil consumption or leak issue to address. If the oil level is correct, the problem is likely the switch or, in more serious cases, the oil pump.
Choosing the Right Aftermarket Oil Pressure Switch
For a vehicle like the 1995-2005 Dodge Neon, aftermarket parts offer excellent value. The original Mopar switches are known to fail, so a quality aftermarket replacement is a smart and cost-effective choice. When shopping, you'll find several brands available.
- Standard Ignition (Standard Motor Products): Often considered a top-tier aftermarket brand, providing quality that meets or exceeds OEM specifications. A reliable choice for this repair.
- Rostra Powertrain: Known for producing a wide range of automotive electronics and powertrain components, Rostra is a solid mid-tier option.
- Global Parts / Vemo: These brands typically fall into the economy or value category. They provide a functional replacement at a lower cost, suitable for budget-conscious repairs.
Pro Tip: Many replacement switches come with thread sealant already applied. If yours does not, be sure to use a small amount of appropriate thread sealant to prevent leaks. Do not overtighten the switch, as this can damage the threads or the switch itself.
Cost of Replacing a Dodge Neon Oil Pressure Switch
This is one of the more affordable repairs you can perform on your Neon. The parts are inexpensive, and if you do it yourself, the cost is minimal. Even having a shop perform the work is relatively cheap due to the low labor time involved.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $13 - $30 |
| New OEM (Mopar) Switch | $35 - $55 |
| Shop Labor | $60 - $90 |
| Total Professional Replacement | $104 - $133 |
Frequently Asked Questions
Where is the oil pressure switch located on a 1995-2005 Dodge Neon?
The oil pressure switch is located on the back of the engine block, near the firewall, often below the coolant reservoir area. It has a single-wire connector, which is often a distinct fluorescent green color, making it easier to spot. Access can be tight, but it is typically reached from the top of the engine bay.
🎬 See these helpful tips on how to reach the sensor.Can I replace the oil pressure switch myself?
Yes, this is a very DIY-friendly job. The difficulty is low, requiring basic hand tools. You will need a special deep socket designed for oil pressure switches (typically 1 1/16 inch) and a ratchet. The entire process usually takes less than 30 minutes. 🎬 Watch this step-by-step walkthrough of the entire replacement process. Some owners find it easier to access after removing the battery.
What happens if I ignore a bad oil pressure switch?
Ignoring it is risky. If the switch is faulty and causing the light to stay on (a "false positive"), it's an annoyance. However, the real danger is if the switch fails to turn the light on during an actual low-pressure event. This could lead to you unknowingly starving the engine of oil, resulting in catastrophic failure. A leaking switch can also lead to significant oil loss over time.
Is an OEM Mopar switch better than aftermarket for my Neon?
While Mopar is the original part, some sources suggest they can be prone to premature failure. A quality aftermarket brand like Standard Ignition is often just as reliable, if not more so, and comes at a lower price point. For this specific part on the Neon, a reputable aftermarket switch is a very sensible choice.
Are there any recalls for the Dodge Neon oil pressure switch?
There are no specific recalls for the 1995-2005 Dodge Neon engine oil pressure switch found on the NHTSA database. However, Chrysler has issued technical service bulletins (TSBs) for similar issues on other models, which involve replacing the sensor with a revised part.

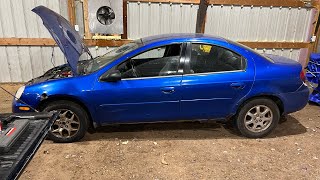

Helpful Videos
Technical Specifications
OEM Part Numbers: 4608303 4608303AB 56031003
Connector: 1-Pin Blade, Thread Size: 1/8" NPT
