GMC Jimmy Steering Gear Guide for 1995-2005 Models
If your steering feels loose or sloppy, it might be time for a new steering gear.
- Sloppy steering or 'wander' is the most common symptom of a failing steering gear on a 1995-2005 GMC Jimmy.
- Check for a history of NHTSA recall 98V242000 to ensure mounting bolts are secure.
- Replacing the pitman arm, idler arm, and flushing the power steering fluid are highly recommended when installing a new gearbox.
- Aftermarket remanufactured units are the most common replacement, but quality can vary by brand.
Is Your GMC Jimmy's Steering Getting Sloppy?
A common issue on the 1995-2005 GMC Jimmy and its sibling, the Chevy Blazer, is the development of play or looseness in the steering. You might notice you have to constantly correct the steering wheel to keep the truck driving straight. This "wander" is often caused by a worn-out steering gearbox. Over time, the internal gears wear down, creating a dead spot in the steering. While other components like tie rods or the idler arm can also cause similar feelings, a worn gearbox is a frequent culprit on these S-series trucks.
Common Symptoms of a Failing Steering Gear
- Excessive Steering Play: This is the most common sign. You can move the steering wheel several inches before the wheels start to turn.
- Steering Wander: Your Jimmy drifts from side to side on the highway, requiring constant small corrections to stay in your lane.
- Fluid Leaks: Puddles of reddish or brown power steering fluid under the driver's side of the engine bay point to failing seals on the gearbox. 🎬 Watch how to troubleshoot and replace a failing steering gearbox.
- Grinding or Popping Noises: You may hear noises when turning the wheel, indicating internal gear damage.
- Stiff or Binding Steering: The steering may feel tight or catch in certain spots as you turn.
Safety Recall Information
There was a recall (NHTSA Campaign ID: 98V242000) for some models where loose mounting bolts could cause the steering gear to separate from the frame, leading to a complete loss of steering. While this recall was issued in 1998, it's crucial to ensure the mounting bolts on your steering gear are secure. If you are unsure if this recall was performed on your vehicle, contact a General Motors dealership with your VIN.
Choosing a New Aftermarket Steering Gear
When replacing the steering gear on your Jimmy, you'll find several aftermarket options, mostly remanufactured units. An original equipment (OEM) part from a dealer is often prohibitively expensive on an older vehicle. Aftermarket parts offer a cost-effective solution, but quality can vary between brands.
Brand Tiers: What to Expect

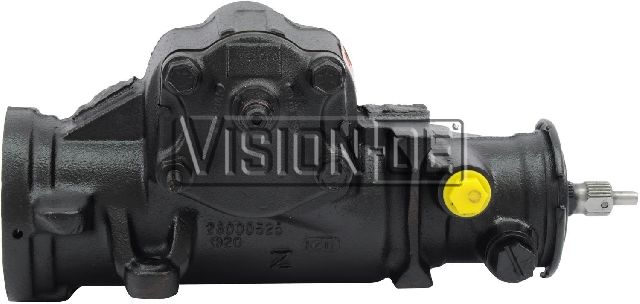

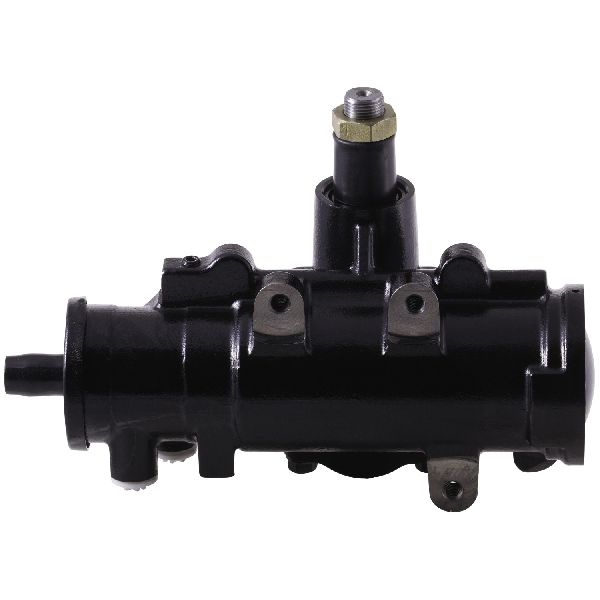

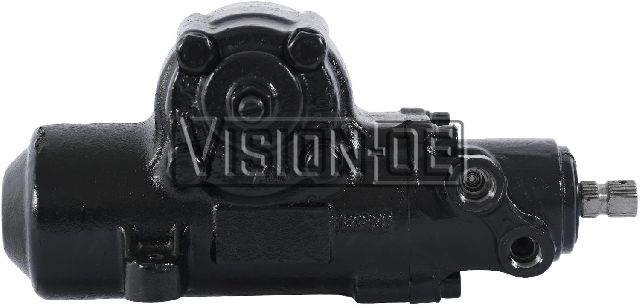

- Premium Remanufactured (BBB Industries, PWR): Brands like BBB Industries and PWR are often considered higher-quality remanufacturers. They typically have robust testing procedures to ensure performance and reliability. These units are a good balance of quality and price for a daily driver or work truck.
- Standard Remanufactured (Cardone): Cardone is one of the most common brands for remanufactured parts. Their quality can be inconsistent; some users report years of trouble-free use, while others experience issues with fitment or premature failure. A Cardone unit can be a budget-friendly option, but it may be a bit of a gamble.
Pro Tip: Flush the System!
When you replace your steering gear, it is critical to flush the entire power steering system to remove old, contaminated fluid and any metal particles from the failing unit. Failure to do so can cause your new gearbox and power steering pump to fail prematurely. Always use the manufacturer-recommended power steering fluid.
Cost to Replace a GMC Jimmy Steering Gear
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Steering Gear | $215 - $842 |
| Shop Labor | $178 - $262 |
| Total Professional Replacement | $882 - $966 |
*Costs are estimates and can vary based on your location, the specific product chosen, and the rates of your repair shop.
Frequently Asked Questions (FAQ)
Can I just tighten my old steering gear?
There is an adjustment screw on top of the steering gearbox that can be tightened to remove a small amount of play. However, this is often a temporary fix. Overtightening this screw can cause the steering to bind or prevent the steering wheel from returning to center, which is dangerous. If your gearbox is significantly worn, adjustment will not solve the underlying problem.
🎬 Learn how to adjust your steering gear to remove play.Is this a difficult job to do myself?
Replacing the steering gear is a moderately difficult job for a DIY mechanic. It requires a good set of tools, including a pitman arm puller, and can be physically demanding as the gearbox is heavy. You will also need to safely lift and support the front of the vehicle. The process involves disconnecting steering linkage, power steering lines (which will be messy), and the steering shaft. If you are not experienced with this type of work, it may be best left to a professional.
What is a "core charge"?
Most remanufactured steering gears are sold with a core charge. This is a deposit you pay when you buy the part. You get this deposit back when you return your old, failed steering gear to the seller. This allows the manufacturers to have a supply of old parts to remanufacture.
Should I replace the pitman arm and idler arm at the same time?
It's a very good idea. The pitman arm connects directly to the steering gear, and the idler arm supports the other side of the steering linkage. Both are common wear items. Since you will have much of the steering system apart already, replacing these components at the same time saves you from paying for duplicate labor in the near future.

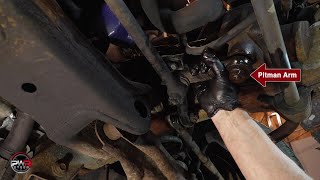

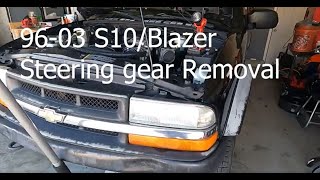

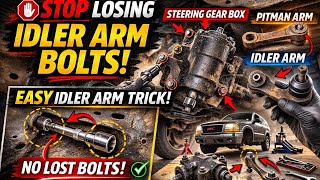

🎬 See how to remove the steering box and pitman arm.Helpful Videos
Technical Specifications
OEM Part Numbers: 86802095 86802096 86802097 86802098 86554125
The 1995-2005 GMC Jimmy uses a hydraulically assisted, recirculating ball-type steering gear. Most aftermarket replacements are remanufactured units and require a core return. Some owners seek out a gearbox from a ZQ8-package S10 as a potential upgrade for a tighter steering feel.
