Pontiac Sunfire (1995-2005) Engine Oil Pressure Switch and Sensor Guide
Is your Sunfire's oil light flickering or staying on? Here’s what you need to know.
- Never drive your Sunfire if the oil pressure light is on; you risk destroying the engine.
- A flickering oil light at idle is a classic symptom of a failing switch on these cars.
- The switch is located on the engine block, often in a tight spot on the firewall side, making replacement a bit tricky.
- Before replacing the switch, always verify the engine oil level is correct and have the actual oil pressure tested with a mechanical gauge to rule out a more serious engine problem.
Is Your Sunfire's Oil Light On? What It Means
The oil pressure switch is a common failure point on many vehicles, including the 1995-2005 Pontiac Sunfire. When it starts to go bad, it can give you a real scare. You might see the oil light flicker at stop lights, stay on constantly, or you might even notice a small oil leak from the sensor itself. While the part is simple, the warning it gives is one you should never ignore.
Warning: Do Not Drive with the Oil Light On
If your oil pressure light is on, stop the engine immediately. You cannot know if it's a cheap, faulty sensor or if your engine has actually lost oil pressure. Driving with no oil pressure can destroy your engine in minutes. It is always safest to have the vehicle towed and diagnose the problem.
Symptoms of a Failing Oil Pressure Switch on a Sunfire
A bad oil pressure switch can show several signs. Pay attention to these, as they are your engine's way of asking for help.
- Flickering Oil Light: This is very common. The light may flicker or turn on only when the engine is warm and at idle, then go off as you accelerate.
- Oil Light Stays On: The light may come on and stay lit, even if you've checked the oil level and it's full.
- Check Engine Light: A faulty switch can trigger the check engine light and store a diagnostic trouble code, such as P0520, P0521, or P0522.

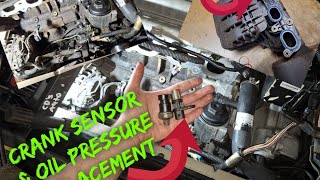

- Oil Leak from the Switch: The plastic housing of the sensor can crack with age, or the internal seal can fail, causing oil to leak out. You may find oil on the sensor, its electrical connector, or on the ground below. 🎬 Watch a mechanic replace a bad switch on this 2.2L engine.
Choosing the Right Aftermarket Switch
For a vehicle like the 1995-2005 Sunfire, you don't need to hunt down an expensive OEM part from a dealer. Quality aftermarket brands provide reliable replacements that meet or exceed original specifications. Here’s a general breakdown of what you'll find:
- Premium Aftermarket (e.g., Standard Ignition, Walker Products): These brands are well-known in the repair industry. They often have better quality control and use materials that ensure a long service life. Standard Ignition (also known as SMP) is a trusted name for automotive electronics. Walker Products is another established sensor manufacturer.
- Standard Aftermarket (e.g., Rostra Powertrain, Global Parts): These brands offer a great balance of value and quality. Rostra, for example, is an ISO-certified manufacturer of both OE and aftermarket electronic parts, indicating a commitment to quality standards. They provide a reliable repair without the premium price tag.
For this specific part on a Sunfire, any of the available aftermarket brands will get the job done. The most important factor is installing it correctly and ensuring it doesn't leak. Given the low cost of the part, if you are paying a mechanic for the repair, it's wise to use a new, quality part rather than a used one.
Pontiac Sunfire Oil Pressure Switch Costs
The cost to replace the oil pressure switch is very reasonable, making it an easy decision to fix it promptly. The biggest variable is labor, as the switch's location can be tight on some engine models.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Switch | $18 - $50 |
| Shop Labor | $60 - $120 |
| Total Estimated Cost (Shop Repair) | $78 - $170 |
Cost estimates are for parts and labor and can vary by location and repair shop.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on the Pontiac Sunfire?
The location can vary slightly depending on your engine (2.2L or 2.4L). Generally, you will find it threaded into the engine block, often near the oil filter housing. On many GM engines from this era, it is located on the passenger side of the engine, toward the back of the engine block, facing the firewall. 🎬 Watch this 1997 Sunfire oil pressure switch replacement walkthrough. This rear position can make it difficult to see and reach from above.
Can I replace the Sunfire's oil pressure switch myself?
Yes, this is a DIY-feasible repair for those with some mechanical experience. You will need a specific deep socket (an oil pressure switch socket is recommended), a ratchet, and possibly an extension or swivel. The main challenge is access. 🎬 See how to remove the sensor without pulling the starter. Be prepared for a small amount of oil to spill when you remove the old switch.
My oil light is on, but my oil level is full. Is it safe to drive?
No. A full oil level does not guarantee correct oil pressure. The light indicates a pressure problem, which could be a faulty oil pump or other serious internal engine issue. The risk of severe engine damage is too high. Always diagnose the cause before driving.
Are there any recalls for the Sunfire oil pressure switch?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from NHTSA for a faulty engine oil pressure switch on the 1995-2005 Pontiac Sunfire. There were other recalls for this vehicle, but they do not pertain to this specific part.
Helpful Videos
Technical Specifications
Typically a 1-terminal switch. Requires a special deep socket for removal and installation.
