Pontiac Sunfire Starter Motor Replacement Guide (1995-2005)
If your Sunfire just clicks or won't crank, your starter motor is the likely culprit—here's what you need to know.
- Verify your engine size (2.2L or 2.4L) before ordering; the starters are not interchangeable.
- A failing starter can create a fire hazard due to a known ignition switch recall on 1995-2001 models.
- A single loud 'click' with no crank is the most common symptom of a bad starter motor.
- Always disconnect the battery before beginning the replacement to prevent electrical shorts and injury.
Symptoms of a Failing Starter in a Pontiac Sunfire
A bad starter rarely fails without warning. If you notice any of these signs, it's time to inspect your starting system before you get stranded.
🎬 Watch: A visual guide to common bad starter symptoms- Single, Loud Click: You turn the key and hear one loud "CLICK" from the engine bay, but the engine doesn't turn over. This is the most common symptom. It means the starter solenoid is engaging, but the motor itself isn't spinning.
- Engine Won't Crank: You turn the key and nothing happens at all, or you only hear a faint clicking. While this can also be a dead battery, if your lights and radio work fine, the starter is a primary suspect.
- Slow, Grinding Crank: The engine turns over much slower than usual and may make a grinding noise. This can indicate worn teeth on the starter gear or flywheel, or an internal failure in the starter motor.
- Intermittent Starting: The car starts fine some days but refuses to crank on others. This often points to a developing electrical issue inside the starter motor or a loose connection.
CRITICAL: Ignition Switch Fire Hazard Recall
General Motors issued a safety recall for 1995-2001 Pontiac Sunfires related to the ignition switch (NHTSA Recall #02V070000). If the engine fails to start (for example, due to a bad starter), holding the key in the "start" position for too long can cause the ignition switch to overheat and potentially start a fire in the steering column. This can happen even after the car is turned off. Because a failing starter encourages longer crank times, replacing it promptly is a critical safety measure.
Choosing the Right Aftermarket Starter
For a vehicle like the 1995-2005 Sunfire, a new aftermarket starter offers the best balance of price and reliability. The original parts are over 20 years old, and new technology often makes aftermarket parts a solid choice.
Common Ordering Mistake: 2.2L vs. 2.4L Engines
The single most important factor when ordering a starter for your Sunfire is the engine size. The starter location and design are completely different between the two common engines.
- 2.2L I-4 Engine: The starter is mounted on the bottom of the engine and is accessed from underneath the car.

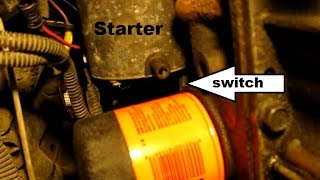

- 2.4L I-4 (Quad 4) Engine: The starter is mounted on the top of the engine, underneath the intake manifold. 🎬 Watch: How to replace the starter on a 2.4L engine
Always verify your engine size before ordering to avoid getting a part that will not fit.
Brand Tiers
- Premium Aftermarket (e.g., ACDelco): ACDelco is the original parts supplier for General Motors, so their aftermarket parts are built to the same fit and quality standards as the original. While some production is now overseas, they are generally considered a top-tier choice for reliability and a perfect fit.
- Standard Aftermarket (e.g., MPA, and others): These brands offer a more budget-friendly option. Quality can be very good, but it's important to buy from a reputable seller with a good warranty. For an older vehicle, these starters provide excellent value and are a popular choice for DIY repairs.
Pro Tip: Check Your Battery First
Many starter problems mimic a weak or dead battery. Before replacing your starter, make sure your battery is fully charged and the terminals are clean and tight. Most auto parts stores will test your battery for free.
Sunfire Starter Replacement Cost
The cost depends on whether you do the job yourself or take it to a professional mechanic. The price of the part itself can range from about $100 to over $230.
| Replacement Type | Estimated Cost |
|---|---|
| New Aftermarket Part (DIY) | $99 - $233 |
| Shop Labor | $92 - $135 |
| Total Professional Replacement | $191 - $368 |
Note: This cost table uses the provided aftermarket part range and published labor estimates. Prices for OEM parts or remanufactured units may vary.
Frequently Asked Questions
Can I replace the starter on my Sunfire myself?
Yes, this is a very DIY-friendly job for both the 2.2L and 2.4L engines if you have basic tools and can safely raise the vehicle (for the 2.2L). The job involves disconnecting the battery, removing a few bolts and electrical connectors, and swapping the part. It typically takes 1-2 hours.
Is it my starter or my battery? 🎬 See how to troubleshoot a no-start problem on a Sunfire
If your headlights are bright and the radio works, but the car only makes a single loud click when you turn the key, the problem is likely the starter. If the lights are dim and the engine cranks very slowly or not at all, your battery is the more likely culprit.
What tools are needed for a Sunfire starter replacement?
You will need a basic socket and wrench set with metric sizes, typically including 8mm, 10mm, 13mm, and 15mm sockets, along with a ratchet and some extensions. Always disconnect the negative battery terminal first for safety.
Why does my new starter just spin without starting the car?
This is a rare but possible issue where the starter motor spins but its gear (the Bendix) does not engage the flywheel. This indicates a defective new part, specifically a problem with the solenoid or drive lever.

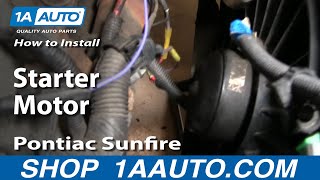

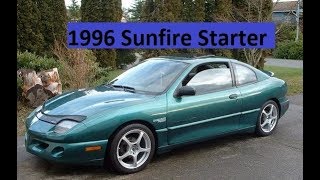

Helpful Videos
Technical Specifications
Compatible Engines: 2.2L OHV I4, 2.4L DOHC I4. Mounting type varies by engine. Typically held by two 15mm bolts. Electrical connections include a main power lug and a smaller 'S' terminal for the solenoid.
