A Guide to the 1995-2006 Audi S6 Engine Oil Pressure Switch
Don't let a simple, inexpensive switch cause major anxiety or lead to a catastrophic engine failure.
- Never ignore a red oil pressure warning; stop the engine immediately, even if you suspect a faulty switch.
- A flickering light with a full oil level is a classic sign of a failing oil pressure switch.
- Oil leaks from the switch itself are common and require replacement of the part.
- Use reputable aftermarket brands like Hella, CRP, or Standard Ignition for this critical but inexpensive part.
Understanding the Oil Pressure Warning Light
The red oil pressure light on your S6 dashboard is one of the most serious warnings you can see. When it comes on, your immediate action should be to pull over safely and shut off the engine. Driving with low oil pressure, even for a short time, can cause catastrophic engine damage. While the cause could be a major internal engine problem, it is frequently caused by the failure of the inexpensive oil pressure switch itself. A faulty switch can send false signals, creating alarm when there is no actual pressure problem.
Common Symptoms of a Failing Switch
- Flickering or Constant Warning Light: The most common symptom is an erratic oil pressure light on the dash, especially when the oil level is full. This can happen randomly, at idle, or when the engine warms up.
- Oil Leaks: The switch itself is a frequent source of oil leaks on older Audis. The plastic housing can crack from heat and age, or the internal seals can fail, causing oil to seep from the switch's body 🎬 Watch this guide to diagnosing and fixing common sensor leaks. or electrical connector. If you see oil on or around the switch, it must be replaced.
- Warning Light Stays On: If the light comes on immediately at startup and stays on, but the engine sounds normal and the oil level is correct, it strongly points to a failed switch.
Choosing the Right Aftermarket Part
For a simple but critical part like an oil pressure switch, you don't necessarily need to buy an expensive OEM part from a dealer. Many aftermarket brands offer reliable alternatives. However, quality can vary, so it's wise to choose a reputable brand.
Brand Quality Tiers
- Tier 1 - OEM Quality: Brands like Hella and CRP (often under the Rein brand) are frequently original equipment manufacturers for Audi and other German brands. Choosing these parts is the closest you can get to dealer quality without the dealer price tag.
- Tier 2 - Trusted Aftermarket: Brands like Beck Arnley, Standard Ignition (SMP), and Walker Products have a long history of producing reliable aftermarket sensors. They are a solid choice for a balance of quality and price.
- Tier 3 - Value Options: Brands such as Facet, Global Parts, and Rostra are typically more budget-friendly. While they can be a good value, there is less information available about their long-term reliability specifically for Audi applications. They may be suitable for a quick fix, but for a critical sensor, investing in a Tier 1 or Tier 2 brand is often recommended.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $10 - $30 |
| New OEM (Dealer) | $40 - $80+ |
| Shop Labor | $75 - $150 |
Frequently Asked Questions (FAQ)
Can I drive my S6 if the oil pressure light is on?
No. You should pull over and turn off the engine as soon as it is safe to do so. The risk of catastrophic engine damage from actual low oil pressure is too high to ignore, even if you suspect it's just a faulty sensor.
My oil level is full, so why is the warning light on?
This is a classic symptom of a failed oil pressure switch. The switch is sending a false low-pressure signal. However, you must confirm this by testing the actual oil pressure with a mechanical gauge before assuming the switch is the only problem.
Can a bad oil pressure switch cause an oil leak?
Yes, this is a very common failure. The plastic housing of the switch can crack with age and heat, or the internal seal can fail, causing oil to leak directly from the sensor's body. If you see oil on or around the switch, it needs to be replaced.
Where is the oil pressure switch located on my S6?
The location can vary slightly by engine and year. On many S6 models from this period, the switch (or switches) are located near the oil filter housing or on the engine block behind the oil cooler. On some V8 models, it may be in the engine valley, under the intake manifold. 🎬 Watch a walkthrough of this complex V8 sensor replacement. A deep socket is typically required for removal.
Helpful Videos
Technical Specifications

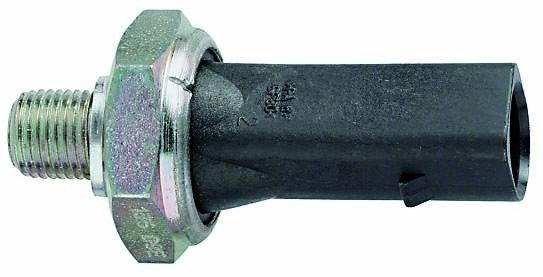

OEM Part Numbers: 06D919081B 079919081D 06E919081D 038919081K
Typically a single-pin or multi-pin electrical connector. Pressure ratings vary by color and application (e.g., 0.3 bar, 1.4 bar, 1.8 bar). Always match the color and pressure rating to the original part.
