Dodge Stratus Engine Oil Pressure Switch Guide (1995-2006)
Is your Dodge Stratus oil light on? Here’s how to know if it’s the oil pressure switch.
- If your Stratus has the 2.7L V6, an oil light could mean a serious oil sludge problem; verify actual pressure with a mechanical gauge before replacing the switch.
- The most common symptoms are a flickering oil light at idle or a switch that is visibly leaking oil.
- This is a simple and inexpensive DIY repair, usually located near the oil filter and requiring a special socket.
- Choosing a quality aftermarket brand like Standard Ignition or Hella is a reliable and cost-effective option for this repair.
Is Your Oil Pressure Switch Failing?
A bad oil pressure switch can create a stressful situation. It can make you think your engine is failing when it's just a faulty sensor. Or, it can fail to warn you when there is a real, serious problem. Knowing the signs of a bad switch is key.
Common Symptoms of a Bad Switch
- Flickering Oil Light: The oil light on your dash may flicker, especially at idle or when the engine is warm. This happens because a worn sensor might chatter between on and off right at its pressure set point.
- Oil Light Stays On: The warning light may stay on constantly, even if the oil level and actual pressure are fine.
- Incorrect Gauge Reading: If your Stratus has a pressure gauge, a bad sensor can cause it to read zero, maxed out, or jump around erratically.
- Visible Oil Leak: The switch itself can fail and leak oil. Oil can seep from the switch's body or even through the electrical connector, which is a sure sign of failure.
Warning for 2.7L V6 Engine Owners
If you have a Dodge Stratus with the 2.7L V6 engine, be extremely cautious. These engines are known to have a serious problem with oil sludge buildup. This sludge can clog oil passages and cause real low oil pressure, which will destroy the engine. If your oil light comes on, do not assume it's just a bad sensor. It is critical to have the actual oil pressure checked with a mechanical gauge to rule out a sludge-related engine problem.
Choosing the Right Aftermarket Oil Pressure Switch
For a vehicle like the 1995-2006 Dodge Stratus, a quality aftermarket switch is a smart and cost-effective choice. The original OEM parts may be hard to find or unnecessarily expensive. Aftermarket brands offer a range of options that meet or exceed original quality.
Aftermarket Brand Tiers
- Premium Aftermarket (Hella, Standard Ignition): Brands like Hella and Standard Motor Products (SMP) have a strong reputation for producing reliable sensors. Hella is an original equipment manufacturer for some car brands, and their parts are built to high standards. Standard Ignition is a well-known aftermarket leader that produces quality components in North America. For a critical part like this, choosing one of these brands provides extra peace of mind.
- Standard & Value Options (Facet, Global Parts, Holstein, Rostra, Vemo): This category includes brands that offer a functional replacement at a lower price point. Brands like Vemo are often seen as budget-friendly, but some forum users express caution about using them for critical sensors. For the other brands, there is less specific feedback available, but they can be a suitable choice if you are on a tight budget.
Pro Tip: Check the Connector

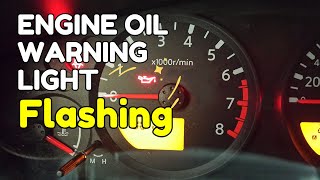

When you remove the old switch, check the electrical connector for oil. It's very common for a failing switch to leak oil into the connector. If you see oil, clean it out thoroughly with electrical contact cleaner before plugging in the new switch. 🎬 Watch this secret fix for a flickering oil light. This will ensure a good connection and prevent future issues.
Cost of Replacing a Dodge Stratus Oil Pressure Switch
Replacing this switch is one of the more affordable repairs you can make. The parts are inexpensive, and the labor is straightforward.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $6.79 - $29.46 |
| Shop Labor | $60 - $120 |
| Total Estimated Cost (DIY) | $6.79 - $29.46 |
| Total Estimated Cost (At a Shop) | $67 - $150 |
Frequently Asked Questions
Where is the oil pressure switch on my Dodge Stratus?
The location depends on your engine. On most Stratus engines, it is screwed into the engine block, usually near the oil filter. On the 2.4L 4-cylinder, it's on the back of the engine and best reached from underneath. On the 2.7L V6, it is also on the back of the engine, to the left of the oil filter (when looking from below), sometimes hidden by a small heat shield.

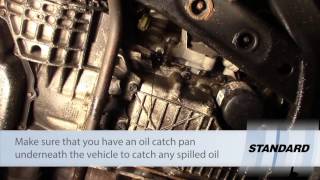

🎬 See how to install the sensor on a 2.7L engine.My oil light flickers at idle. Is it the switch?
It could be. A flickering light at idle is a classic symptom of a failing switch. However, it can also mean your oil level is low, you're using the wrong type of oil, or there is actual engine wear causing low pressure at low RPMs. Always check your oil level first. If the level is good, testing the switch and the actual oil pressure is the next step.
Can I replace the oil pressure switch myself?
Yes, this is a very DIY-friendly job for most home mechanics. It typically 🎬 Watch: Step-by-step 2005 Stratus oil pressure sensor replacement guide. requires raising the front of the car for access, unplugging the sensor, and unscrewing it with a special deep socket. The replacement part often comes with thread sealant already applied.
What OBD2 codes are related to a bad oil pressure switch?
A faulty oil pressure switch will most commonly trigger trouble codes P0522 (Engine Oil Pressure Sensor/Switch Circuit Low) or P0523 (Engine Oil Pressure Sensor/Switch Circuit High). These codes point to an electrical problem with the sensor's signal to the car's computer.
Helpful Videos
Technical Specifications
The primary specification is the pressure set point at which the switch activates the warning light. It is also important to match the thread size and electrical connector style to your specific engine (2.0L, 2.4L, 2.5L, or 2.7L).
