Jeep Wrangler Hazard Flasher & Multi-Function Switch Guide (1995-2006)
If your turn signals or hazard lights have failed on your YJ or TJ, the multi-function switch is the likely culprit.
- This part is a multi-function switch in the steering column, not just a relay in the fuse box.
- Failure is common and affects both turn signals and hazard lights.
- You MUST order the correct part for your year (YJ vs. early/late TJ) and fog light option.
- Replacement is DIY-friendly on TJ models and requires basic tools like Torx drivers.
Is This the Right Part? Understanding the Wrangler's Flasher System
Many owners get confused looking for a simple flasher relay under the dash. On the YJ and TJ Wrangler, the component that fails is usually the entire multi-function switch, also called a combination switch. This assembly houses the turn signal stalk, the hazard light button, and the flasher relay itself. When symptoms appear, you typically replace this entire module, not just a small relay. The aftermarket parts available from brands like Crown Automotive and Standard Ignition are complete multi-function switch assemblies.
Common Symptoms of a Failing Hazard Flasher Switch
A bad multi-function switch can make driving unsafe. Watch for these common warning signs:
- No Turn Signals or Hazard Lights: The most obvious sign is when neither the turn signals nor the hazard flashers work at all.
- Intermittent Operation: Your signals might work sometimes and not others. Often, wiggling the turn signal stalk or pressing the hazard button repeatedly can make them temporarily work again, pointing to worn internal contacts.
- Lights Stay On (No Flash): The turn signal or hazard lights illuminate but do not flash. This can happen if the flasher relay part of the switch has failed.
- Indicator Light Stuck On: A green turn signal arrow may stay illuminated on your instrument panel even when the stalk is in the neutral position, which can drain your battery over time.
Pro Tip: Before buying a new part, try pressing and releasing the hazard flasher button on the steering column 10-15 times. Sometimes the contacts inside get corroded, and this can clean them enough to restore function, confirming the switch is the problem.
Choosing the Right Aftermarket Switch: Avoid Common Mistakes
Ordering the correct switch for your specific Wrangler is critical. There are several variations, and getting the wrong one is a common mistake.
1. Check Your Year Range: The part is NOT the same for all 1995-2006 models. There are different switches for the 1995 YJ, 1997-2000 TJ, and 2001-2006 TJ.
2. Check for Fog Lights: For TJ models, the most important difference is whether your Jeep has factory fog lights. The switch for models with fog lights has different internal wiring and an extra function on the stalk. Double-check if your switch controls fog lights before ordering.
Brand Quality: OEM vs. Aftermarket
Mopar (OEM): An original Mopar switch is the benchmark for quality and fit. However, for these older Wranglers, many of these parts are now discontinued and very difficult to find new. If you can find one, expect to pay a significant premium.
Aftermarket (Crown, Standard Ignition): For most owners, a new aftermarket switch is the practical choice.
- Crown Automotive: A well-known brand specializing in Jeep replacement parts. They are often the go-to for keeping older Jeeps on the road.
- Standard Ignition (SMP): A major manufacturer of quality aftermarket electrical parts for many vehicles.
Cost of Replacing a Jeep Wrangler Hazard Flasher Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Crown, Standard) | $81 - $84 |
| New OEM (Mopar) | $300+ (if available, often discontinued) |
| Shop Labor | $125 - $175 |
DIY Replacement Guide
Replacing the multi-function switch is a straightforward job for a DIYer with basic tools. The process takes less than an hour.
🎬 Watch a full walkthrough of the TJ combination switch replacement.- Disconnect the Battery: Always disconnect the negative battery terminal before working on electrical components.
- Remove Steering Column Covers: Remove the Phillips and Torx screws holding the plastic shrouds around the steering column. You will likely need T10 and T20 Torx drivers.
- Unplug the Switch: Carefully unplug the two large electrical connectors from the back of the switch assembly. They have locking tabs that need to be released. 🎬 See how to handle damaged wiring harness connectors during installation.
- Remove the Old Switch: The switch assembly is held to the column by two Torx screws. Remove them and slide the entire unit out.

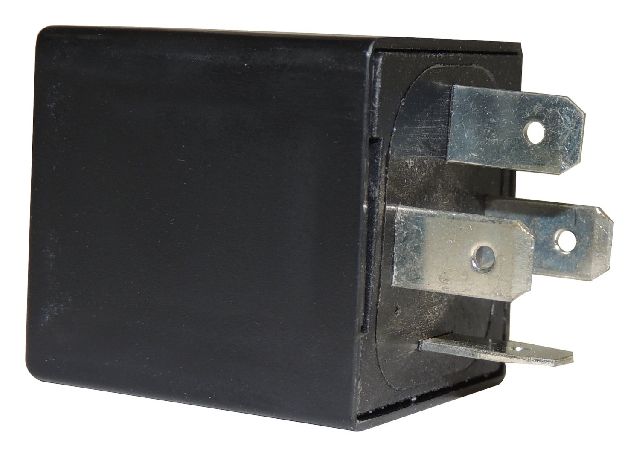

- Transfer Components (If Needed): You may need to transfer the wiper switch stalk or the small flasher relay from your old unit to the new one. The flasher relay simply pulls out and plugs into the new switch.
- Install the New Switch: Installation is the reverse of removal. Secure the new switch, plug in the connectors, re-attach the column covers, and reconnect the battery.
Frequently Asked Questions
Why did my turn signals and hazard lights fail at the same time?
Because both systems are controlled by the same multi-function switch assembly. When the internal contacts or the integrated flasher relay fail, it affects both functions.
Can I just replace the small flasher relay?
Sometimes the relay is the only part that has failed. However, the relay is sold as part of the complete multi-function switch assembly by most aftermarket brands. Given the frequency of failure in the switch's other mechanical and electrical parts, replacing the entire unit is the recommended and most reliable repair.
Do I need special tools for this job?
For a 1997-2006 TJ, you only need basic hand tools like Phillips screwdrivers and a set of Torx drivers (T10 and T20 are common). For the 1995 YJ, the job is more involved and may require a steering wheel puller.
🎬 Watch this guide for replacing the switch on YJ models.Can I use a switch from a Wrangler with fog lights if mine doesn't have them?
No, it is not recommended. The wiring connectors and internal switching are different. You should always order the exact switch specified for your vehicle's options to ensure proper function.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56007255 56002951 5016709AA 5016709AC 5016709AD
Controls turn signals, hazard lights, and headlight high/low beams. Mounts to the steering column. Includes integrated flasher relay socket. Variations exist for models with and without factory fog lights.
