Chevrolet Monte Carlo Fuel Pump Module Assembly Guide (1995-2007)
Solve stalling, starting problems, and erratic fuel gauge readings in your Monte Carlo.
- Check your year first: 2000-2007 models have an easy trunk access panel, while 1995-1999 models require dropping the fuel tank.
- Replace the entire module assembly to fix common inaccurate fuel gauge problems.
- Plan to splice the new wiring connector that comes with most kits; the original is a common failure point.
- Driving with a failing fuel pump is a risk, as it can cause the engine to stall in traffic at any time.
Is Your Monte Carlo's Fuel Pump Failing?
A weak or failing fuel pump can cause major engine problems and eventually leave you stranded. Recognizing the symptoms early is key. The most common signs include the engine cranking but not starting, difficulty starting, stalling unexpectedly, and a noticeable loss of power when you accelerate. 🎬 Watch this guide to diagnosing a failing fuel pump. You might also hear a distinct, loud whining or humming noise from the back of the car near the fuel tank, which is a sign that the pump's motor is straining.
A Critical Difference: 1995-1999 vs. 2000-2007 Models
Before you begin this repair, you must know which generation your Monte Carlo belongs to. The replacement procedure is vastly different.

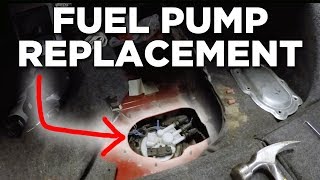

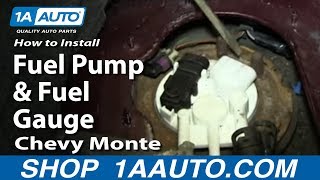

- 2000-2007 Monte Carlo (6th Gen): These models have a metal access panel in the trunk, located under the carpet just behind the rear seats. This allows you to replace the fuel pump module without having to remove the entire fuel tank, making the job much easier for a DIY mechanic. 🎬 Watch: Step-by-step fuel pump replacement for 2000-2005 models.

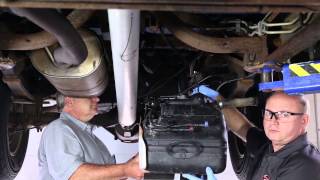

- 1995-1999 Monte Carlo (5th Gen): These models do not have a factory access panel. The official procedure requires you to lower and remove the fuel tank from under the vehicle 🎬 See how to safely lower and replace the fuel tank. to access the pump. This is a much more difficult and time-consuming job. While some owners have cut their own access holes, this is not recommended as it can compromise vehicle safety.
Known Issues & Bulletins
Inaccurate Fuel Gauge: A very common problem, especially for 2000-2007 models, is a faulty fuel level sending unit. This causes the gas gauge to read empty when full, get stuck, or fluctuate wildly. Since the sending unit is part of the fuel pump module, replacing the entire assembly is the only reliable way to fix the gauge.
Wiring Connector Failure: The original factory wiring connector at the top of the fuel pump module is a known weak point, prone to corrosion and melting, which can cause a crank-no-start condition. Because of this, most quality aftermarket fuel pump kits include a new, improved wiring pigtail that must be spliced onto your car's harness. This is a critical step for a lasting repair.
Recalls: There have been no major factory recalls from GM for the fuel pumps on the 1995-2007 Monte Carlo. However, there was a recall for certain aftermarket Delphi fuel pressure regulators (NHTSA #07E021000) that could leak, and another for a small batch of aftermarket Delphi fuel modules sold in late 2006/early 2007 that were assembled incorrectly. These do not apply to the original parts installed at the factory.
Choosing the Right Aftermarket Fuel Pump
When it comes to a part that can leave you stranded, quality matters. Aftermarket brands for your Monte Carlo can be grouped into tiers.
- Premium Brands (Bosch, Delphi): Delphi was often the Original Equipment (OE) supplier for General Motors, making their parts a top-tier choice for fit and reliability. Bosch is another well-regarded brand known for quality fuel system components. These are your best bet for a long-lasting repair.
- Mid-Grade Brands (Carter, Dorman, GMB): These brands offer a balance between cost and quality. Carter has been around for a long time, though reviews can be mixed. Dorman and GMB are common aftermarket suppliers that provide a functional, more affordable alternative to premium brands.
- Economy Brands (URO Parts, US Motor Works, AutoBest): These brands are typically the most affordable. URO Parts is often seen as a budget option, best used for less critical components. While the low price is tempting, the long-term reliability of economy-tier electronic fuel pumps can be a gamble.
Pro Tip: Replace the Whole Module
It is strongly recommended to replace the entire fuel pump module assembly, not just the pump motor itself. The labor is the same, and the new module includes a new fuel level sensor (to fix gauge issues) and a clean strainer, ensuring the entire system is refreshed.
Estimated Replacement Costs
The cost can vary significantly based on your vehicle's year, the brand of part you choose, and local labor rates. The biggest factor is whether the fuel tank needs to be dropped (1995-1999 models).
| Part / Service | Estimated Cost |
|---|---|
| New OEM (Dealer Part) | $931 - $1,075 |
| New Aftermarket (Your Cost) | $99 - $474 |
| Shop Labor | $240 - $450+ |
| Total Professional Job (Aftermarket Part) | $340 - $925+ |
Cost estimates are based on national averages and will vary. Labor for 1995-1999 models will be on the higher end of the scale or exceed it due to the need to remove the fuel tank.
Frequently Asked Questions
Why is my gas gauge wrong but the car runs fine?
This is a classic symptom of a failed fuel level sending unit. The sending unit is a part of the fuel pump module. While the pump motor itself still works, the sensor that reads the fuel level has broken. Replacing the complete fuel pump module assembly will fix this problem.
Do I have to drop the fuel tank on my Monte Carlo?
It depends on the year. If you have a 2000-2007 model, you are in luck; there is an access panel in the trunk so you do not need to drop the tank. If you have a 1995-1999 model, dropping the tank is required for the replacement.
Should I replace the fuel filter at the same time?
Yes, absolutely. It is highly recommended to install a new fuel filter when you replace the fuel pump. A clogged or old filter can restrict fuel flow, forcing the new pump to work harder and causing it to fail prematurely.
My new pump came with wires. Do I have to cut my car's wiring?
Yes, most likely. The original wiring connector is a known failure point. Quality aftermarket kits provide a new, more robust connector (pigtail) that you must splice into your vehicle's wiring harness. This is a crucial step to prevent future electrical issues with the pump.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25314343 25178733 25320383 19179533

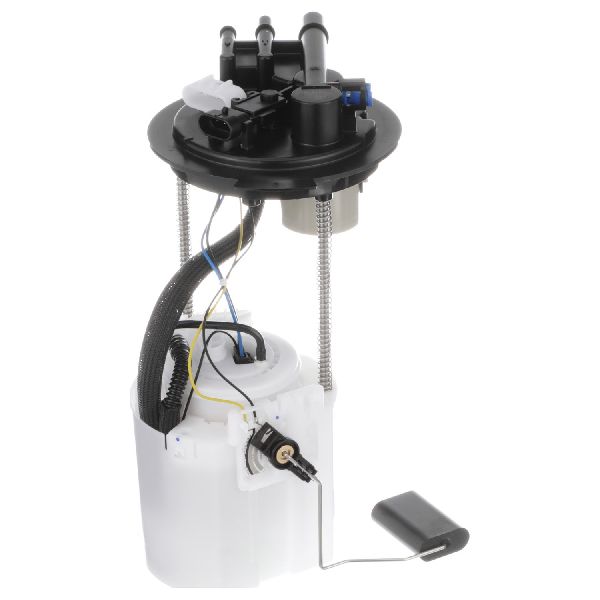

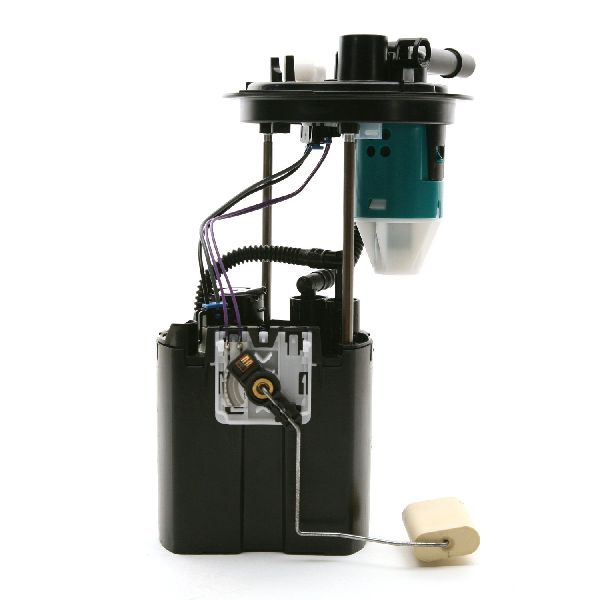

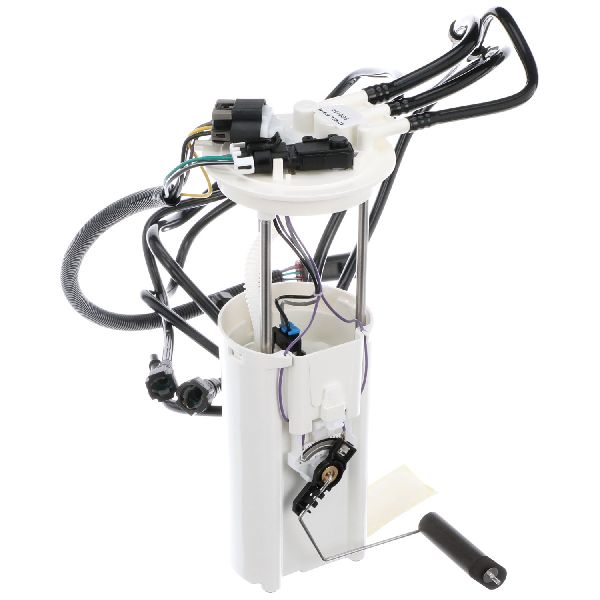

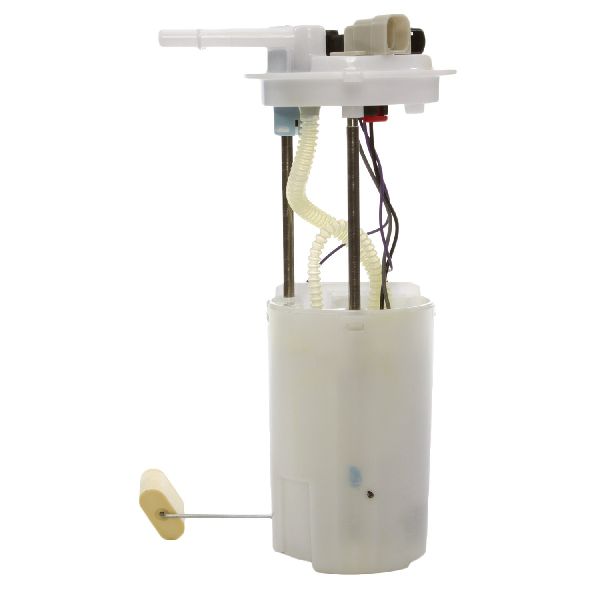

This part is a module assembly that includes the electric pump, fuel sending unit (level sensor), strainer, and reservoir. The design differs between the 1995-1999 and 2000-2007 generations. Most aftermarket kits include a new wiring harness pigtail for splicing.
