Chevrolet Monte Carlo Ignition Coil and Module Guide (1995-2007)
Fix engine misfires and poor performance by understanding the ignition system in your 1995-2007 Monte Carlo.
- Most 1995-2007 Monte Carlos use a set of three individual coils mounted on an ignition control module, not a single coil pack.
- A flashing Check Engine Light means stop driving immediately to prevent expensive catalytic converter damage.
- Replacing coils is a very easy DIY job, often requiring only a single tool and less than an hour.
- For best results, stick with OEM-equivalent brands like ACDelco or Delphi; the original GM ignition system is very robust.
Signs of a Failing Ignition Coil
When an ignition coil or the control module starts to fail on your Monte Carlo, the symptoms are hard to ignore. The most common issue is an engine misfire, which can feel like a shake, stumble, or hesitation, especially when you accelerate. You will almost certainly see the Check Engine Light come on. A classic sign of a failing ignition control module, in particular, is the engine stalling after it gets hot and then refusing to start again until it cools down.
🎬 Watch: How to test for a bad ignition control moduleFlashing Check Engine Light: A Serious Warning
If your Check Engine Light is flashing, it signals a severe misfire. Unburned fuel is getting into the exhaust, which can quickly destroy your catalytic converter, leading to a very expensive repair. Stop driving the vehicle as soon as it is safe to do so.
Choosing the Right Aftermarket Ignition Coil
For the V6 engines in the 1995-2007 Monte Carlo, the original factory ignition system is known to be very reliable. Many owners report over 200,000 miles on the original coils. Because of this, choosing a quality replacement is important. Aftermarket parts are available in different quality tiers.
Tier 1: OEM & Premium Aftermarket
These brands are either the original equipment manufacturer (OEM) or are known for producing parts that meet or exceed OEM standards. They are the most recommended choice for reliability and longevity.
- ACDelco: As the original GM parts brand, ACDelco is the benchmark for quality and fit. Many consider it the best option, though it is often the most expensive.
- Delphi: Delphi is a major GM parts supplier and is often the actual manufacturer for parts that are put in an ACDelco box. They offer OEM quality, sometimes at a slightly lower price.
Tier 2: Reputable Aftermarket
These brands have a strong reputation for quality and are a solid choice if OEM parts are not in your budget. They are widely used by professional mechanics.
- NGK: Known for spark plugs, NGK also produces high-quality ignition components that are well-regarded by mechanics.
- Bosch: A trusted name in automotive parts, Bosch offers reliable ignition coils for many applications.
- Standard Motor Products (SMP): A long-standing brand that offers a wide range of quality ignition parts.
- Hitachi: While more known for Japanese vehicles, Hitachi makes quality electronic components for many cars.
Tier 3: Value Brands
This category includes many lower-cost brands. While the initial price is attractive, their long-term reliability can be a gamble. Some owners have success, while others report early failures. Brands in this tier include DriveWire, Spectra, and various unbranded parts found online. While they can get you back on the road in a pinch, be aware that you may be replacing them again sooner than you would with a premium brand.
A Note on Performance Brands
Brands like MSD and Granatelli offer high-performance coils. However, for a stock or lightly modified Monte Carlo, many experts and owners agree that the stock GM ignition system is already very powerful and that these expensive upgrades offer little to no noticeable performance gain.
Known Issues & Recalls
While there are no specific recalls for the ignition coils themselves, several major recalls for the ignition switch were issued for 2000-2007 Monte Carlos. A faulty switch could cause the engine to shut off while driving, which is a serious safety risk. It is critical to ensure this recall work has been performed on your vehicle. Another known issue is corrosion forming on the ignition coil towers where the spark plug wires connect, which can cause a misfire. If you see white or rusty buildup, the coil and the spark plug wire should be replaced.
Cost of Replacing a Monte Carlo Ignition Coil
The cost can vary depending on whether you replace a single coil or the entire assembly. On the V6 models, there are three coils. The prices below reflect the cost for a single coil.
| Part Type | Price Range (Single Coil) |
|---|---|
| New OEM (ACDelco) | $45 - $110 |
| New Aftermarket | $25 - $75 |
| Shop Labor | $86 - $126 |
Frequently Asked Questions (FAQ)
Can I replace just one bad ignition coil?
Yes, you can replace just the one faulty coil. The coils can be unbolted from the ignition control module individually. However, if your car has high mileage, it's often a good idea to replace all three at once, as the others may be nearing the end of their service life.
Should I replace the spark plugs and wires with the coils?
Yes, this is highly recommended. Worn-out spark plugs can put extra strain on the ignition coils, causing them to fail prematurely. Since you already have access to everything, replacing the plugs and wires at the same time is smart preventative maintenance.
What is the difference between the ignition coil and the ignition control module (ICM)?
On the 1995-2007 Monte Carlo V6, the ignition coils are the three components that the spark plug wires connect to. The Ignition Control Module (ICM) is the metal plate they are all bolted onto. The ICM is the electronic brain that tells the coils when to fire. A common failure is for the ICM to overheat and cause the engine to stall.
🎬 See how to replace the ICM and coil packHow difficult is it to replace the ignition coils myself?
For the common V6 engines (3.1L, 3.4L, 3.8L), this is a very easy job. The coil pack is located on the side of the engine and is easy to access. The only tool typically needed is a small socket and ratchet. The entire job can usually be done in under an hour, even for a beginner.
🎬 Watch: Step-by-step guide to replacing your ignition coilHelpful Videos
Technical Specifications
OEM Part Numbers: D552 25533542 25523221 25518356 12353801

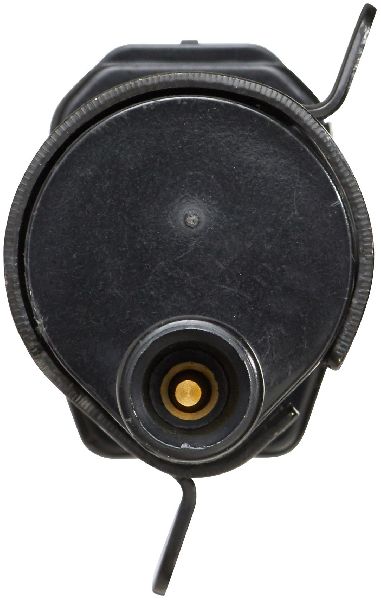

The V6 models from 1995-2007 use a waste spark system with three individual, 2-tower ignition coils mounted to a single Ignition Control Module (ICM). Each coil fires two companion cylinders simultaneously (e.g., 1-4, 2-5, 3-6). The coils are secured to the ICM with two small bolts, typically 5.5mm or 7/32".
