Dodge Caravan Vehicle Speed Sensor (1995-2007): A Complete Replacement Guide
Fix your Caravan's erratic speedometer and harsh shifting by understanding and replacing the correct speed sensor.
- A bad Vehicle Speed Sensor (VSS) is the most common cause of an erratic speedometer and poor shifting on these vans.
- You must replace the 'output' speed sensor, not the 'input' sensor, to fix this issue.
- Replacement is simple, requiring basic tools and less than an hour for most DIYers.
- Premium aftermarket brands like Delphi or Standard Ignition offer reliable performance without the high cost of an OEM part.
Is Your Dodge Caravan Speedometer Acting Up?
A failing vehicle speed sensor (VSS) is a very common issue on the 1995-2007 Dodge Caravan. This sensor provides essential data to both your dashboard and your transmission. When it starts to go bad, it can cause some very noticeable and frustrating problems. Fortunately, it's an inexpensive part and is usually easy to replace.
Symptoms of a Failing Vehicle Speed Sensor
The signs of a bad VSS are hard to ignore. Because the sensor's signal is used for both the speedometer and transmission shifting, you will likely experience issues with both. The most common symptoms include:
- Erratic or Dead Speedometer: The needle may bounce around randomly, show a speed that is clearly wrong, or not move at all.
- Harsh or Incorrect Shifting: Your Caravan might slam into gear, hesitate, or shift at the wrong times.
- Stuck in Gear (Limp Mode): The transmission may go into a self-preservation mode, often getting stuck in second gear, to prevent damage.
- Check Engine Light: A failing sensor will trigger a fault code and turn on the check engine light. Common codes include P0500, P0700, and P0720. 🎬 See how to fix these common transmission codes and symptoms.
- Cruise Control Won't Engage: The cruise control system relies on a steady speed signal, so it will not work if the sensor is faulty.
Input vs. Output Sensor: A Common Mistake
Your Caravan's transmission has two speed sensors: an input sensor and an output sensor. The sensor that controls the speedometer is the output sensor. They are located near each other but are not the same part. Always confirm you are replacing the correct one. 🎬 Watch this video to identify the input versus output sensors. In most cases, the output sensor is the cause of speedometer and shifting problems.
Choosing the Right Aftermarket Speed Sensor
For a part like this, you don't necessarily need to buy an expensive OEM part from the dealer. Many aftermarket brands offer reliable quality, but it's wise to avoid the absolute cheapest options, which can fail prematurely. Here’s a breakdown of available brands:
- Premium Aftermarket (OEM Quality): Brands like Delphi, Standard Ignition (SMP), and NTK are well-regarded for sensors and often supply the original parts to automakers. They are a reliable choice for durability and proper function.
- Standard Aftermarket: Brands such as Walker Products and Holstein offer a good balance of price and quality. They are a dependable choice for a daily driver.
- Economy Brands: Brands like URO Parts, Crown Automotive, and other private labels (True Tech, Global Parts, Skyward) are the most affordable. While they can work, some owners report issues with fit and longevity with budget-tier electronics. They are best considered for a temporary fix or if budget is the top priority.
Pro Tip: Before ordering, visually inspect the sensor in your vehicle if possible. While most sensors for this generation are the same, slight variations in connectors can exist between model years or transmission types.
Typical Replacement Costs
Replacing the VSS is one of the more affordable repairs you can make. The part itself is not expensive, and labor is minimal.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $14 - $67 |
| New OEM Part | $70 - $120 |
| Shop Labor | $75 - $150 |
| Total Estimated Cost (Shop) | $89 - $217 |
Frequently Asked Questions (FAQ)
Where is the vehicle speed sensor located on my Caravan?
The output speed sensor is located on the top or front of the automatic transmission, accessible from the driver's side of the engine bay. You will typically see two similar-looking sensors near each other; the output sensor is often the one further to the right (towards the passenger side).
Can I replace the speed sensor myself?
Yes, this is a very DIY-friendly job. It typically requires basic hand tools and can be done in under an hour. 🎬 Watch this step-by-step guide to replacing your speedometer sensor. The sensor is held in by a single bolt and has one electrical connector.
What tools do I need to replace the speed sensor?
You will usually need a ratchet with a 1-inch socket or a 1-inch wrench, and possibly a flathead screwdriver to help release the clip on the electrical connector. Disconnecting the negative battery terminal before starting is also recommended.
Will a bad speed sensor cause permanent transmission damage?
While driving for an extended period with very harsh shifting is not ideal for your transmission's long-term health, a bad speed sensor itself does not typically cause immediate, permanent damage. The transmission enters a 'limp mode' to protect itself. However, you should replace the sensor as soon as possible to restore normal operation and for safety.
Are there any recalls for this part?
No, there are no specific recalls issued by the NHTSA for the vehicle speed sensor on the 1995-2007 Dodge Caravan. The issue is considered a common component failure due to age and mileage.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4800879 4800879AB 4687836

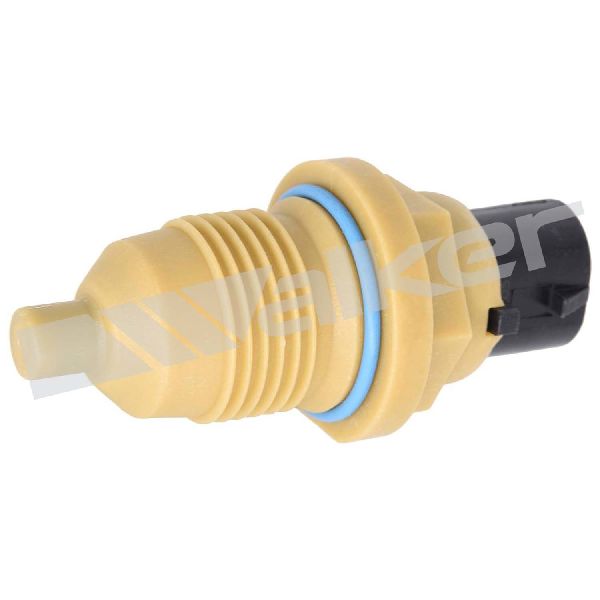

Located on the automatic transaxle. Typically requires a 1-inch socket or wrench for removal. Features a plastic body and a single electrical connector.
