Toyota Camry Windshield Washer Pump Guide: 1995-2007 Models
If your washers have stopped spraying, this guide will help you diagnose the problem and choose the right replacement pump for your Camry.
- Replacing the washer pump on a 1995-2007 Camry is a very easy and common DIY repair that takes less than an hour.
- Always check for simple issues first: check the fluid level, check the fuse, and listen for a humming sound from the pump before buying parts.
- High-quality aftermarket pumps from brands like Trico or ACDelco are a cost-effective and reliable alternative to more expensive OEM parts for this vehicle.
- The pump is accessed by peeling back the passenger-side front fender liner; it simply pulls out of a rubber grommet on the reservoir.
Is Your Camry's Windshield Washer Pump Failing?
A non-working windshield washer on a 1995-2007 Toyota Camry is a common issue, especially given the age of these vehicles. The good news is that it's usually a simple and inexpensive part to replace. Before you buy a new pump, it's smart to do a quick diagnosis. 🎬 Watch this video to learn how to diagnose your washer system. First, have a helper activate the washer switch while you listen near the front passenger-side wheel well. If you hear a humming sound, the pump is getting power, but it might be clogged or broken internally. If you hear nothing, the problem could be the pump motor, a blown fuse, or a wiring issue. Always check the washer fluid level first, and make sure the nozzles on the hood aren't clogged with wax or debris.
Symptoms of a Bad Washer Pump
- No Sound, No Spray: If you hear no humming noise when you activate the washers, the pump motor has likely failed or isn't receiving power. Check the fuse first.
- Pump Hums, But No Fluid Sprays: This is a very common symptom. It can mean the pump's internal impeller is broken, or there's a clog in the system. Often, the filter grommet where the pump enters the reservoir gets clogged with gelled washer fluid or debris.
- Weak or Uneven Spray: While this can be caused by a failing pump, it's also often due to clogged nozzles or a leak in the washer fluid lines.
Safety First
A non-functioning windshield washer system is a safety hazard. In bad weather like rain, snow, or when dealing with road spray, the inability to clean your windshield can severely block your vision. It is a simple fix that makes a big difference in driving safety.
Choosing a New Aftermarket Washer Pump
For a vehicle like the 1995-2007 Camry, an aftermarket washer pump is a very practical and cost-effective choice. The original equipment (OEM) pump is a quality part, but you are often paying a premium for the brand name. Reputable aftermarket brands produce pumps that meet or exceed original specifications and are a fraction of the cost.
Aftermarket Brand Options
When shopping for your Camry, you will likely come across these brands:

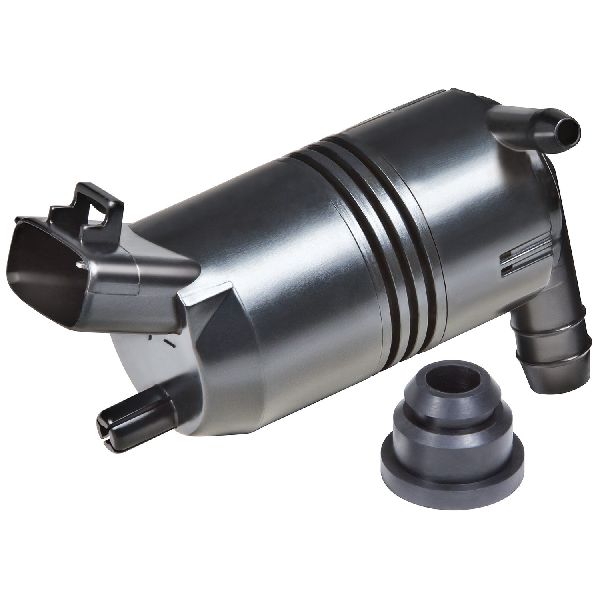

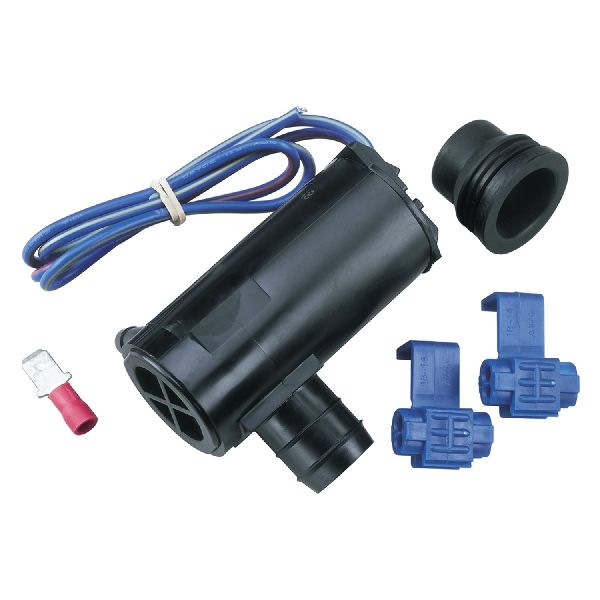

- Trico: A well-known name in wiper and washer systems, Trico offers direct-fit replacement pumps. They are designed to be an easy, OE-style installation and are a reliable choice for a daily driver.

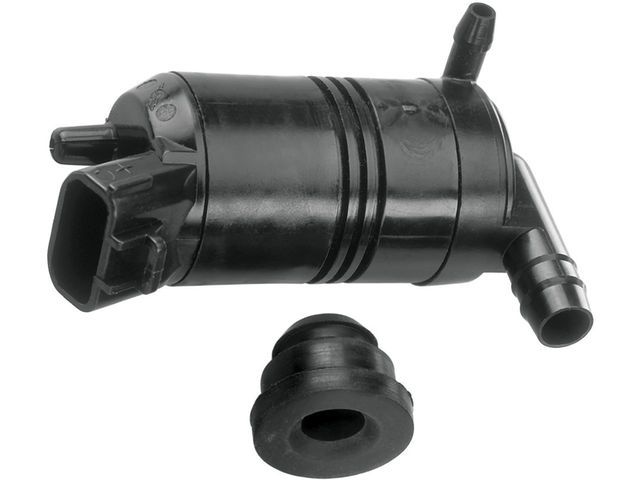

- ACDelco: While strongly associated with GM vehicles, ACDelco offers a line of professional aftermarket parts for many makes and models. They are known for quality and are a solid alternative to the OEM part.
For this specific part, the difference in quality between these top aftermarket brands and the original part is minimal. The most important factor is ensuring the pump you buy is listed as a direct fit for your specific year Camry to ensure the electrical connector and mounting style match.
Pro Tip: Check the Grommet!
The washer pump pushes into the reservoir through a rubber grommet that also acts as a filter. This grommet can become brittle, clogged, or fail to seal properly, causing leaks. Many new aftermarket pumps come with a new grommet. It is highly recommended to replace it at the same time as the pump.
Cost of Replacing a Toyota Camry Washer Pump
Here is a general breakdown of what you can expect to pay for the part and installation.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Pump | $24 - $50 |
| New OEM Pump | $60 - $115 |
| Shop Labor | $75 - $150 |
| DIY Total Cost | $24 - $50 |
| Shop Replacement Total | $100 - $200 |
Frequently Asked Questions
Where is the washer pump located on a 1995-2007 Camry?
The windshield washer pump is located on the washer fluid reservoir. You can access it by turning the front passenger-side wheel all the way to the left and removing a few clips or screws from the plastic fender liner to peel it back. The pump is a small, cylindrical part pushed into the bottom of the white plastic reservoir tank.
🎬 Watch how to access and replace the entire washer reservoir.Is replacing the washer pump a difficult DIY job?
No, this is considered an easy DIY repair for most people. It typically takes less than an hour and requires basic hand tools like a screwdriver 🎬 See this step-by-step walkthrough for replacing the pump yourself. and a 10mm socket. You'll need to remove part of the fender liner for access, disconnect a wire and a hose, and then pull the old pump out and push the new one in.
My pump runs, but no fluid comes out. Is the pump bad?
Not necessarily. This is a classic symptom of a clog. The most common culprit is the small filter screen on the pump's inlet or the grommet it sits in, which can get blocked by debris or gelled fluid. Before replacing the pump, it's worth trying to clean this filter. However, since the pump must be removed for cleaning and a new one is inexpensive, most people replace it anyway.
Are there any recalls for the 1995-2007 Camry washer pump?
Based on searches of the National Highway Traffic Safety Administration (NHTSA) database, there are no specific recalls for the windshield washer pump on the 1995-2007 Toyota Camry models. Recalls for this type of component are very rare.
Helpful Videos
Technical Specifications
OEM Part Numbers: 85330-AA010 85330-33020 85330-12340
The pump is a 12V DC motor that press-fits into a grommet on the washer fluid reservoir. It has one electrical connector and one outlet nipple for the fluid hose. The specific part number may vary slightly across the 1995-2007 year range, but many aftermarket parts are designed to be cross-compatible.
