A Ford Ranger Owner's Guide to Rear Drum Brake Shoes (1995-2014)
Learn about common problems, brand quality, and replacement costs before you buy new rear drum shoes for your truck.
- Always replace the springs and hardware with the shoes; it's a critical safety step.
- Before starting, inspect for leaking wheel cylinders or axle seals, as fluid will ruin new shoes.
- Manually adjusting the new shoes via the star wheel is essential for a firm pedal and a working parking brake.
- Brands like Wagner, Bendix, and Centric/Powerstop offer excellent quality that meets or exceeds the original parts.
Symptoms of Failing Drum Brake Shoes
When your Ranger's rear brake shoes are worn out, your truck will give you several warning signs. Ignoring them can lead to more expensive repairs or unsafe driving conditions.
- Scraping or Grinding Noises: This is the most common sign. A loud grinding or scraping sound from the rear when you brake means the friction material is likely gone, and metal is grinding against metal.
- Weak or Ineffective Parking Brake: If you set your parking brake and the truck still rolls, it's often because the rear shoes are too worn or out of adjustment to hold the drum.
- Spongy or Low Brake Pedal: While this can have many causes, brake shoes that are worn or far out of adjustment can increase pedal travel, making the pedal feel soft or lower than usual.
- Vehicle Pulling to One Side: If one side has a contaminated shoe (from a leaking wheel cylinder or axle seal) or a stuck component, your truck may pull to the left or right when braking.
Check for Leaks Before You Replace
Before installing new brake shoes, always inspect the wheel cylinders for any signs of brake fluid leaks and check the axle seals for gear oil leaks. Any fluid contamination will quickly ruin a new set of brake shoes. If you see any dampness, replace the leaking component first.
Choosing the Right Aftermarket Brake Shoes
You don't need to buy expensive OEM parts from a dealer for your Ranger. Aftermarket brands offer excellent quality, often at a much better price. Here’s a breakdown of popular brands to help you choose.
Tier 1: OE-Quality & Heavy-Duty Brands
These brands are trusted by mechanics and owners for meeting or exceeding original factory specifications. They are the best choice for daily driving, towing, and longevity.
- Wagner: A highly recommended brand for Ford Rangers. Wagner brake shoes are known for matching the original equipment (OE) design and often come with new levers and pins attached. They provide excellent performance and a long service life.
- Bendix: Another top-tier name in braking, Bendix offers a wide selection of quality brake shoes that deliver reliable stopping power.
- Centric/Powerstop: Centric is a major aftermarket supplier with a reputation for good quality parts. Power Stop, their performance line, offers kits that often include new hardware and are made from upgraded materials for better stopping power, making them a great choice for trucks that tow or haul.
- Raybestos: A respected brand known for quality brake components. Their shoes are a solid choice for a reliable, long-lasting repair.
Tier 2: Economy Brands
These brands are a good option if you are on a tight budget, but they may not last as long or perform as consistently as the premium brands.
- Dynamic Friction: Offers a range of products, including budget-friendly options.
- Total Stopping Solutions: A value-focused brand for basic repairs.
Always Replace the Hardware
The springs, clips, and self-adjuster components in a drum brake system wear out over time. A broken spring can cause noise or complete brake failure. For a safe and reliable repair, always install a new hardware kit when you replace your brake shoes. Many premium shoe sets include this hardware.
Common Problems & Known Issues for Ford Ranger Drum Brakes
- Self-Adjuster Failure: The self-adjusting mechanism on Rangers is known to get stuck or fail, especially in areas with rust. This prevents the shoes from maintaining the correct distance from the drum, leading to a weak parking brake and a low brake pedal. Many owners manually adjust their brakes through the access hole in the backing plate.
- Stuck Drums: It is very common for the brake drum to rust to the hub, making it difficult to remove. There is often a threaded hole in the drum face where you can insert a bolt to help push the drum off.
- Frozen Brakes in Winter: In very cold weather, moisture inside the drum can freeze, causing the brakes to lock up. Tapping the drum with a hammer can break them free.
Frequently Asked Questions
Should I also replace the brake drums?
It is highly recommended. New shoes work best with a fresh, smooth drum surface. If your old drums have grooves, a large lip on the edge, or are warped (which causes a pulsing sensation), they must be replaced. Installing new shoes on worn drums will reduce braking performance and shorten the life of the new parts.
What is the difference between 9-inch and 10-inch brakes?
Throughout these years, Ford used both 9-inch and 10-inch diameter rear drum brakes on the Ranger, depending on the year, engine, and axle configuration. You must get the correct size shoes for your specific truck. It is best to measure your old drums or check your vehicle's specifications before ordering.
How do I adjust the new brake shoes?
After installation, the shoes need to be adjusted. This is done by turning the star wheel adjuster through an access slot in the backing plate until you feel a slight drag when spinning the wheel by hand. Proper adjustment is critical for a firm brake pedal and a functional parking brake. The automatic adjuster is supposed to work when braking in reverse, but it often doesn't work well.
Are there any recalls for 1995-2014 Ranger drum brakes?
Searches on the National Highway Traffic Safety Administration (NHTSA) website did not show any specific recalls for the drum brake shoes themselves on the 1995-2014 Ford Ranger. However, always check for your specific VIN on the NHTSA website for any open recalls.

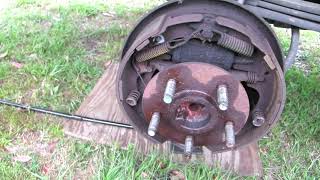

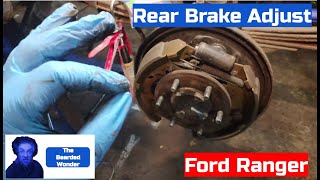

Helpful Videos
Technical Specifications
OEM Part Numbers: 3L5Z-2200-DA
Brake shoes are available for both 9-inch and 10-inch rear drum systems. The correct part depends on the vehicle's specific year, model, and axle configuration. Always verify the drum size before purchasing.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
