A Practical Guide to Universal Joints for the 1996-1997 Lexus LX450
Address the clunks and vibrations from your LX450 by understanding its essential U-joints.
- Do not ignore U-joint symptoms; a complete failure can be dangerous and cause extensive damage.
- For this heavy, full-time 4WD vehicle, choose high-quality brands like Spicer, GMB, or genuine Toyota parts.
- The front and rear driveshafts use different U-joint part numbers, so verify fitment before ordering.
- If you are not equipped with a press or heavy-duty vise, having a professional shop perform the installation is the safest option.
Symptoms of a Bad U-Joint
A failing U-joint on your LX450 will give you clear warning signs. Because this is a heavy, full-time 4WD vehicle, you should not ignore these symptoms. A complete failure can cause the driveshaft to disconnect, leading to a loss of control and major damage to the underbody of your truck.
🎬 See what happens when a U-joint fails on the trail- Vibrations: You may feel a new vibration throughout the vehicle, especially at highway speeds. Some owners notice it in a specific range, like 30-40 mph.
- Clunking Noises: A common sign is a loud "clunk" or "thump" when you shift the transmission into Drive or Reverse. This is the sound of slack in the worn-out joint being taken up.
- Squeaking or Chirping: You might hear a squeaking sound that gets faster as you speed up. This often means the U-joint has lost its internal grease and is running dry. 🎬 Watch: 7 signs of a bad universal joint
- Binding or Tightness: When checking the driveshaft by hand (with the vehicle safely supported), a bad U-joint may feel tight, notchy, or bind up instead of moving smoothly.
Choosing the Right Aftermarket U-Joint
The Lexus LX450 is mechanically the same as the Toyota Land Cruiser FZJ80. This means you benefit from a huge community of owners who have tested parts for decades. The consensus is clear: do not use low-quality U-joints on this vehicle. The original Toyota U-joints are known to be extremely durable. When choosing a replacement, you are deciding between OEM quality and various tiers of aftermarket parts.
Greaseable vs. Non-Greaseable

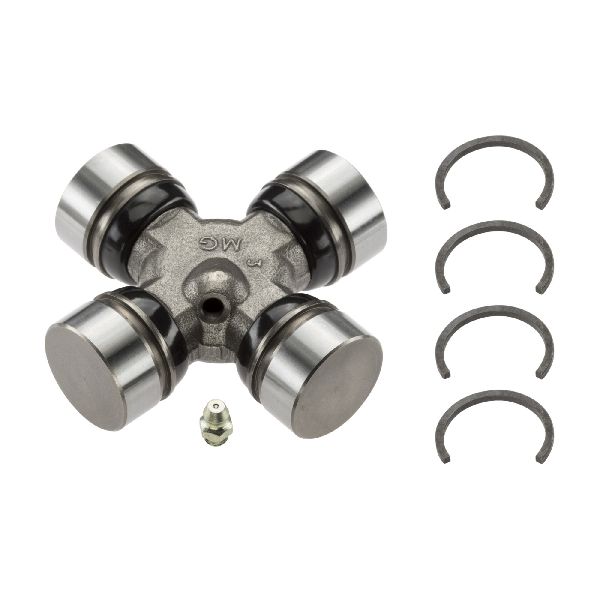

Original U-joints are non-greaseable (sealed). Their solid cross design is very strong. Many aftermarket U-joints are greaseable, with a zerk fitting to add grease. This can extend their life if you perform regular maintenance, but the grease channel can be a structural weak point. If you don't plan on greasing your U-joints regularly, a high-quality sealed joint is a better choice.
Aftermarket Brand Quality Tiers
For the LX450, it's best to invest in a quality part. Here’s a breakdown of the brands available, from highest to lowest recommended quality based on owner experiences.
- Premium (OEM Equivalent): Brands like Dana Spicer and Japanese-made GMB or Matsuba are highly regarded. Spicer is a legendary name in drivetrains, and many consider their parts to be as good as or better than original equipment. Matsuba is often the actual manufacturer for Toyota's own parts.
- Quality Aftermarket: SKF is a well-respected brand known for high-quality bearings and related parts. Their U-joints are a solid choice for a reliable repair.
- Standard/Economy: Moog U-joints often have mixed reviews in the truck and 4x4 community. While some products are fine, their U-joints are sometimes considered a lower-tier option that may not have the durability needed for a heavy vehicle like the LX450.
A Note on Installation
Replacing U-joints requires a heavy-duty vise or a hydraulic press. If done incorrectly, you can damage the new joint or the driveshaft. Always mark the driveshaft's orientation before removal to ensure it is reinstalled in the same position to prevent vibrations. If you are not comfortable with this process, have a professional driveline shop perform the work.

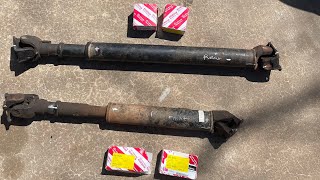

🎬 Watch: A complete guide to 80 series propeller shaft maintenanceCost to Replace LX450 Universal Joints
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Single Part) | $21 - $95 |
| New OEM Toyota/Lexus U-Joint (Single Part) | $60 - $85 |
| Shop Labor (per driveshaft) | $150 - $350 |
Frequently Asked Questions
How many U-joints does my LX450 have?
Your LX450 has a front and a rear driveshaft. Each shaft typically has two universal joints. You should inspect all of them, but it is common to replace only the ones that have failed.
Are the front and rear U-joints the same part?
No, on the 1996-1997 LX450 and FZJ80 Land Cruiser, the front and rear driveshafts use different U-joint part numbers. Be sure to order the correct part for the specific location.
Do I need to get my driveshaft balanced after replacing the U-joints?
If you carefully mark the driveshaft and yokes before disassembly and put them back in the exact same orientation, you usually do not need to rebalance the shaft. If you have vibrations after the repair, balancing may be necessary.
Were there any recalls for the U-joints on the 1996-1997 LX450?
No, searches of the NHTSA database show no specific recalls or technical service bulletins (TSBs) for universal joint failure on this vehicle.
Helpful Videos
Technical Specifications
OEM Part Numbers: 04371-60070 (Front, supersedes 04371-35031, 04371-35050) 04371-60210 (Rear, supersedes 04371-36030)
The LX450 uses two driveshafts (front and rear), each with two U-joints. The front and rear U-joints are different sizes and not interchangeable.
