A Guide to the 1996-1999 Oldsmobile LSS Throttle Position Sensor
Fix poor acceleration, rough idle, and transmission shifting problems by choosing the right new aftermarket throttle position sensor for your LSS.
- A failing TPS on the LSS commonly causes symptoms that mimic a bad transmission, such as hard or erratic shifting.
- Common symptoms include hesitation, rough idle, stalling, and a Check Engine Light with codes like P0121, P0122, or P0123.
- Replacement is a simple DIY task, requiring only basic tools and about 30 minutes.
- Quality aftermarket brands like ACDelco, Standard Ignition, and Walker Products offer reliable performance and are a cost-effective alternative to dealer parts.
Is Your LSS Throttle Position Sensor Failing?
A bad throttle position sensor can cause a variety of engine and transmission issues that can be frustrating for any owner. Because the sensor is a moving part—a potentiometer that works like a volume knob—it wears out over time. The electrical contacts inside get worn down, causing the signal it sends to the engine computer to become erratic or disappear completely. This can confuse the computer and lead to a number of performance problems.
🎬 Watch this guide to identify symptoms and test for failure.Don't Mistake a Bad TPS for a Bad Transmission
One of the most common misdiagnoses related to a failing TPS is thinking the transmission is failing. Because the TPS signal is crucial for shift timing, a bad sensor can cause hard, delayed, or erratic shifts. If you're experiencing these symptoms, checking the TPS first can save you from a very expensive and unnecessary transmission repair.
Choosing the Right Aftermarket TPS Brand
For a vehicle like the 1996-1999 Oldsmobile LSS, a quality aftermarket TPS is often a smart and cost-effective choice. While ACDelco is the original GM parts brand and a trusted option, other aftermarket manufacturers produce reliable sensors that meet or exceed original specifications. Here’s a breakdown of available brands:
- Premium Aftermarket (Tier 1): Brands like ACDelco, Standard Ignition (SMP), and Walker Products are well-regarded in the industry. They are known for using high-quality materials and rigorous testing to ensure their parts fit and function like the original. While ACDelco is often preferred for GM vehicles, some users report that quality can vary and that brands like Delphi (often sold under the ACDelco name) or Standard are excellent alternatives.
- Quality Aftermarket (Tier 2): Brands such as Motorad and True Tech offer a good balance of quality and value. They are dependable options for daily drivers and are manufactured to be direct-fit replacements.
- Economy (Tier 3): The Replacement brand is a generic, private-label option. While it is the most affordable, it may not have the same long-term durability or undergo the same level of quality control as premium brands.
Aftermarket Throttle Position Sensor Cost (1996-1999 Oldsmobile LSS)
| Brand Tier | Estimated Price Range |
|---|---|
| Premium (ACDelco, Standard, Walker) | $60 - $98 |
| Quality (Motorad, True Tech) | $45 - $65 |
| Economy (Replacement) | $35 - $50 |
A Note on Installation
Replacing the TPS on your LSS is a simple job that most DIYers can handle in under 30 minutes. It is held onto the throttle body by two small screws (usually Torx or Phillips head). After installing the new sensor, it does not typically require a special calibration or adjustment on these models. Always remember to disconnect the negative battery terminal before beginning any electrical work.
🎬 See a step-by-step demonstration of the replacement and adjustment process.Frequently Asked Questions
Are there any recalls for the Oldsmobile LSS throttle position sensor?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or specific Technical Service Bulletins (TSBs) for the throttle position sensor on the 1996-1999 Oldsmobile LSS. There was an investigation into engine fires on supercharged 3800 engines, but this was unrelated to the TPS.
Can I just clean my old TPS instead of replacing it?
No. The throttle position sensor is a sealed electronic component. The failure occurs internally where a resistive strip wears out from physical contact. Cleaning the outside of the sensor will not fix the problem. If the sensor is faulty, it must be replaced.
What happens if I keep driving with a bad TPS?
Continuing to drive with a failing TPS is not recommended. You will likely experience very poor fuel economy, unpredictable engine stalling, hesitation, and erratic transmission shifting. These symptoms can create an unsafe driving condition, especially the risk of stalling in traffic or sudden, unexpected acceleration.
Is an ACDelco sensor really better than other aftermarket brands?
ACDelco is the original equipment manufacturer for GM, and their parts are generally considered high quality. However, many forum discussions among GM owners show that quality aftermarket brands like Standard Ignition or Walker Products are also highly trusted and sometimes preferred. For a common part like a TPS, a reputable aftermarket brand often provides the same performance and reliability as the OEM part for a better price.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17106681 17113578 213-912

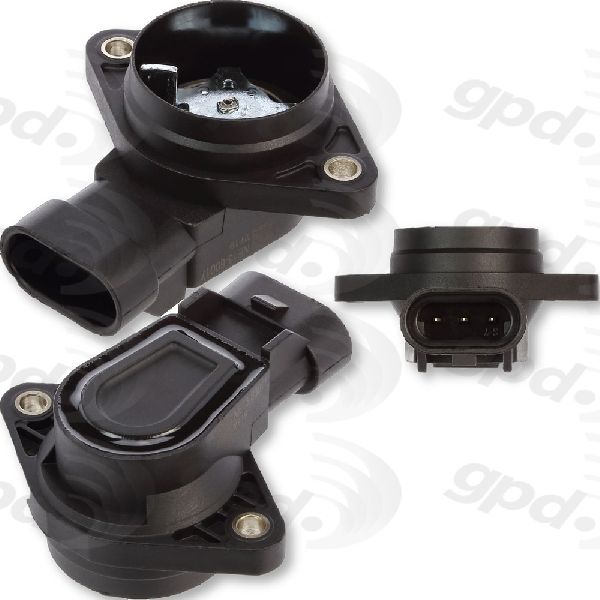

The Throttle Position Sensor for the 1996-1999 Oldsmobile LSS is a three-pin, non-adjustable, rotary potentiometer sensor mounted to the throttle body.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
