Guide to the Engine Intake Manifold Gasket Set for 1996-2000 Chevrolet C2500
Fixing the common Vortec engine intake gasket leak on your Chevy C2500 is easier when you choose the right parts.
- The original plastic-frame intake gasket is a known failure point; always upgrade to an aftermarket set with a steel or aluminum frame.
- The Fel-Pro MS 98000 T gasket set is the most highly recommended upgrade for a permanent fix.
- Driving with a coolant-to-oil leak is not recommended as it can cause catastrophic engine damage.
- While the intake is off, it's a good time to replace the thermostat, distributor cap/rotor, and inspect the fuel injection spider.
A Known Problem for the 1996-2000 C2500
If you own a 1996-2000 Chevy C2500 with a Vortec V8, you should know about the intake manifold gasket. The original factory gaskets use a plastic frame that becomes brittle and cracks over time from heat and exposure to coolant. This isn't a question of 'if' it will fail, but 'when'. When it fails, it can cause coolant leaks, vacuum leaks, and even severe engine damage if coolant mixes with your oil.
🎬 Watch a full rebuild video for fixing intake manifold oil leaks.OEM vs. Aftermarket: A Clear Winner
This is one of the rare cases where aftermarket parts are widely considered a major upgrade over the original OEM design. The factory plastic-frame gaskets are the source of the problem. Reputable aftermarket brands like Fel-Pro redesigned the gasket with a steel or aluminum frame, which solves the cracking and deterioration issue. Choosing a quality aftermarket set is not just a repair; it's an upgrade to prevent the problem from happening again.
Choosing the Right Aftermarket Gasket Set
Not all aftermarket parts are created equal. For a critical part like this, the brand and quality matter. Here’s how the available brands generally stack up for your C2500:
Tier 1: Recommended Upgrade
- Fel-Pro: This is the most recommended brand for this specific repair. The Fel-Pro MS 98000 T set is famous for its steel core design that fixes the original flaw. It includes torque limiters to prevent over-tightening and features a superior sealing design. Most mechanics and experienced owners will tell you to use this set and not look back.
- Edelbrock: Known for performance parts, Edelbrock also offers high-quality gaskets. Their gaskets are a reliable choice, often used in performance applications, and are considered a durable option.
Tier 2: Good Quality OEM-Style Replacement
- Victor Reinz / Mahle: These are reputable brands that often supply parts directly to automakers. Their replacement gaskets are high-quality and reliable. They offer an updated metal-frame design similar to Fel-Pro's, providing a durable alternative.
Tier 3: Economy Options

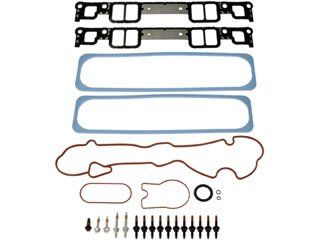

- Dorman: Dorman often provides kits that include new bolts, which can be convenient. However, for a labor-intensive job like this, many owners prefer to spend a little more for a top-tier gasket to ensure it's a one-time repair.

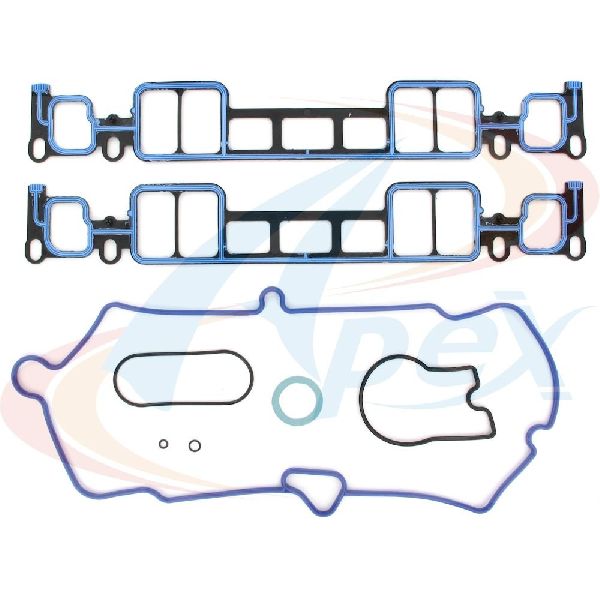

- Apex / Store Brands: These are budget-friendly options. While they will work, their long-term durability may not match that of the premium brands. For the amount of work involved in this replacement, using an economy gasket is a risk.
What Else Should I Replace?
Since you'll have the top of the engine disassembled, it's a smart and cost-effective time to inspect and replace other parts. Consider replacing the thermostat, distributor cap and rotor, and the coolant bypass hose. If your truck has high mileage, this is also the perfect time to consider upgrading the original spider fuel injection system to the more reliable Multi-Port Fuel Injection (MPFI) conversion.
🎬 Watch this guide on MPFI conversion and gasket best practices.Cost to Replace the Intake Manifold Gasket Set
| Item | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $30 - $125 |
| Shop Labor | $372 - $555 |
| Total Professional Repair | $937 - $1,137 |
Costs are estimates and can vary based on your location and the specific repair shop. The total repair cost often includes additional shop supplies and fluids.
Frequently Asked Questions (FAQ)
Do I have to replace the intake manifold bolts?
The intake manifold bolts on the Vortec engine are torqued to a very low specification (around 11 ft-lbs). They are not torque-to-yield and can typically be reused if they are in good condition and not corroded. However, some gasket kits, like those from Dorman, may include new bolts.
Should I use extra sealant on the gaskets?
No, do not apply sealant to the gasket surfaces themselves, especially with modern rubber-coated steel gaskets like the Fel-Pro set. The only place you need to apply sealant is a small bead of RTV silicone at the front and rear corners where the intake manifold meets the engine block "china walls". The gasket instructions will show the precise locations.
How can I be sure it's the intake gasket and not a head gasket?
While some symptoms overlap (like coolant in the oil), intake gasket failures on these trucks often start with an external coolant leak at the front or rear of the engine. You might also hear a hissing sound from a vacuum leak. A head gasket is more likely to cause significant white smoke from the exhaust and major, immediate performance problems. A cooling system pressure test can help a mechanic pinpoint the exact source of the leak.
🎬 See a step-by-step walkthrough of the lower intake gasket repair.Was there a recall for this issue?
No, there was never a safety recall for the intake manifold gaskets on these trucks. While it is a very common and well-documented failure due to the original part's design, it is considered a maintenance or repair issue rather than a safety defect that would trigger a recall.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89017465
The key specification for this repair is the intake manifold bolt torque, which is performed in a three-step sequence: 1st pass to 27 inch-pounds, 2nd pass to 106 inch-pounds, and the final pass to 11 foot-pounds. A specific tightening sequence must also be followed.
