Ignition Coil Guide for 1996-2000 Chevrolet Express 3500
Keep your workhorse running strong by understanding ignition coil failure and choosing the right replacement.
- The 1996-2000 Express 3500 uses a single ignition coil; if it fails, the entire engine shuts down.
- Symptoms are severe: no-start, stalling, and major misfires are common.
- For a reliable repair, choose a premium aftermarket brand like Delphi, NGK, or Standard Ignition.
- Replacement is DIY-friendly and can be done in under an hour with basic tools.
Is Your Express Van Running Rough? It Could Be the Ignition Coil.
If you're experiencing issues like engine misfires, stalling, or a no-start condition, a failing ignition coil could be the culprit. The 1996-2000 Chevrolet Express 3500 uses a single ignition coil system, which is different from newer vehicles that have a coil for each spark plug. This means a single part failure can bring your entire van to a halt. This guide will help you diagnose the problem and choose the best new aftermarket coil for your needs.
Symptoms of a Bad Ignition Coil
A failing ignition coil on your Express 3500 will be hard to ignore. Since it's responsible for spark to all cylinders, you'll notice significant performance problems. Here are the most common signs:
- Engine Misfires: The engine may sputter, shake, or run very poorly, especially under load.
- Stalling: The van may stall unexpectedly, particularly when idling at a stoplight.
- No-Start Condition: If the coil fails completely, the engine will crank but won't start because there is no spark to ignite the fuel. 🎬 Watch this diagnostic case study on a van that won't start.
- Check Engine Light: A failing coil can trigger the check engine light. A common code associated with ignition circuit problems is P0351.
- Poor Fuel Economy: Your engine may burn more fuel to compensate for the lack of power from misfires.
- Backfiring: Loud popping from the exhaust can occur when unburned fuel ignites in the exhaust system.
Important Note on This Generation
The 1996-2000 Express vans use a single coil and distributor system. Unlike modern coil-on-plug systems where a single coil failure affects only one cylinder, a failure here affects all cylinders. This typically results in a complete no-start or a vehicle that is undrivable, rather than just a rough idle.
Choosing the Right Aftermarket Ignition Coil
When it comes to aftermarket parts for your Express 3500, you have several tiers of quality and price. For a work vehicle of this age, balancing reliability and cost is key.
Brand Quality Tiers
- OEM-Grade/Premium Aftermarket (e.g., Delphi, NGK, Standard Ignition - Red Box): Delphi is a well-regarded brand, often considered an OEM supplier for GM. Choosing a brand like Delphi provides confidence in fit and performance that is similar to the original part. Standard Motor Products (SMP), particularly in their red box line, has a long history as a quality aftermarket choice. NGK is another trusted name in ignition components. These brands are your best bet for long-term reliability.
- Standard Replacement (e.g., DriveWire, Spectra, Walker Products): These brands offer a cost-effective solution and are generally reliable for daily driving. They meet standard specifications and are a good middle-ground option if budget is a primary concern.
- Performance Upgrade (e.g., MSD): Brands like MSD are designed for high-performance applications, offering higher voltage output. For a stock 1996-2000 Express 3500 work van, this is generally unnecessary and not a cost-effective choice.
Pro Tip: Since Delphi was an original equipment manufacturer for GM, a Delphi aftermarket coil is often a safe and reliable choice that offers OEM performance without the higher dealership price tag.
Known Issues, Recalls, and Service Bulletins
Searches for recalls and Technical Service Bulletins (TSBs) related to the ignition coil for the 1996-2000 Chevrolet Express 3500 did not reveal any specific, widespread issues. While GM had a major ignition switch recall in the mid-2000s, it affected different models and was related to the key switch, not the ignition coil itself. The ignition system on these vans is generally considered straightforward and reliable.
Frequently Asked Questions (FAQ)
How difficult is it to replace the ignition coil on a 1996-2000 Express 3500?

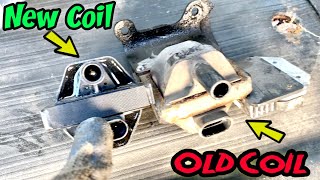

Replacing the ignition coil is a relatively simple job for someone with basic mechanical skills. It is typically mounted on a bracket on the engine. The process involves disconnecting the battery, unplugging the electrical connector and spark plug wire, and removing two mounting bolts. 🎬 See this walkthrough on how to remove and install the coil. Accessing it requires removing the engine cover ("doghouse") inside the van.
Should I replace anything else with the ignition coil?
Yes. If your ignition coil has failed, it's a good time to inspect and likely replace the spark plugs and spark plug wires, especially if they are old. A tune-up with a new coil, plugs, and wires can restore performance and fuel economy. Also, inspect the distributor cap and rotor for wear, as they are also critical components in this ignition system.
🎬 Watch: How to replace the distributor cap and rotor.What is the difference between an ignition coil and an ignition module?
The ignition coil transforms voltage. The ignition control module (ICM) tells the coil when to fire. On these GM vehicles, the ICM is often located near the distributor or coil. Sometimes they are replaced together, but they are distinct parts. The OEM part number ACDelco D579 is often associated with the ignition control module for this system.
Can I use a coil from a different year or model?
No. You should always use an ignition coil that is specified for your 1996-2000 Chevrolet Express 3500. Using an incorrect part can lead to poor performance, no-start issues, or damage to other components of the ignition system.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10489421 D579 (Often refers to the Ignition Control Module, but is closely related)
This vehicle uses a single, canister-style ignition coil that works in conjunction with a distributor. It is not a coil-on-plug system.
