1996-2000 Dodge Caravan Hazard Warning and Turn Signal Flasher Guide
Having intermittent or failed turn signals in your Dodge Caravan? The problem is likely this single, easy-to-replace part.
- The flasher module for the 1996-2000 Caravan is not in the steering column; it's a large relay in the fuse panel under the dash.
- Intermittent signal operation, especially related to cabin temperature, is a tell-tale sign of a failing flasher module.
- Before replacing, try firmly reseating the existing module, as a loose connection is a common and free fix.
- This single module controls both the turn signals and the hazard lights.
Is Your Caravan's Flasher Failing? Common Symptoms
The flasher module in the 1996-2000 Caravan is known for a few distinct problems. The most common issue owners report is intermittent turn signal operation. You might notice your signals only work after the vehicle's interior has warmed up. This is often a sign of failing solder joints inside the module itself.
Other symptoms include:
- Turn signals or hazard lights not working at all.
- Turn signals or hazards staying on but not flashing.
- One or both turn signals failing, even after replacing the bulbs.
Pro Tip: Check This First
Before buying a new part, locate the flasher module in the fuse panel under the driver's side dash. Sometimes, the module simply becomes loose in its socket. Try firmly pushing it back into place or removing and reseating it. For many owners, this simple action can restore function, at least temporarily.
Choosing the Right Aftermarket Flasher
For a vehicle of this age, a new aftermarket flasher module is a practical and cost-effective choice. The original OEM parts can be expensive and may suffer from the same design flaws as the original. Aftermarket manufacturers often address these common failure points.
Standard Ignition (Standard Motor Products): This is a well-known aftermarket brand that produces a wide range of electronic components. Their parts are manufactured in certified facilities and are designed to be direct-fit replacements. While not a premium performance brand, Standard offers a reliable, OE-quality alternative that meets the needs of most Caravan owners for daily driving and repairs.
Common Ordering Mistake
Do not confuse the flasher module with the multifunction switch (the turn signal stalk in the steering column). The switch only sends a signal; this module does the actual flashing. Many owners replace the switch unnecessarily when the flasher module is the true cause of the problem.
🎬 See how to replace the multifunction switch if neededCost of Replacing a Dodge Caravan Flasher Module
| Part Type | Estimated Cost |
|---|---|
| New OEM | $110 - $150 |
| New Aftermarket (e.g., Standard Ignition) | $70 - $99 |
| Used OEM | $25 - $50 |
| Shop Labor | $60 - $120 |
Note: Costs are estimates and may vary based on location and supplier.
Frequently Asked Questions (FAQ)
Where is the hazard flasher located on a 1996-2000 Caravan?
The flasher module is plugged into the interior fuse box, also called the junction block. It's located under the dashboard, roughly above the driver's left shin. 🎬 Watch: How to find and replace the flasher module It is the largest rectangular module plugged into the board, usually at the top. It is in an awkward position to see and reach.
Why do my turn signals only work when the van is warm?
This is a classic symptom of failing solder joints inside the flasher module. As the cabin temperature increases, the metal and solder expand slightly, which can temporarily complete the broken electrical connection. When it's cold, the connection is open, and the signals don't work. This is a clear sign the module needs replacement.
Can I replace the flasher module myself?
Yes, this is a DIY-friendly job that requires no special tools. The main challenge is the awkward location of the part. You will need to work in a tight space under the dashboard. The replacement simply involves pulling the old module straight out of the fuse block and plugging the new one in.
My hazard lights work, but my turn signals don't. Is it still the flasher?
Yes, it is very likely the flasher module. While the module controls both functions, it has separate internal circuits. It is possible for the turn signal portion of the circuit to fail while the hazard portion still works, or vice-versa.

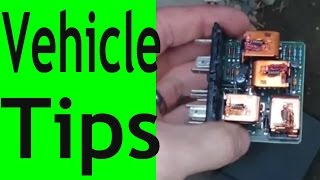

Helpful Videos
Technical Specifications
OEM Part Numbers: 04686190
Combination Flasher Relay for Turn Signal and Hazard Lights. Plugs into interior junction block (fuse panel).
