Manifold Absolute Pressure (MAP) Sensor for 1996-2000 Dodge Caravan
Understanding the MAP sensor in your Caravan is key to solving issues like rough idle and poor gas mileage.
- Symptoms like rough idle, poor gas mileage, and hesitation are strong indicators of a failing MAP sensor.
- Always check for cracked or disconnected vacuum hoses first, as they can cause identical symptoms.
- Replacement is a very simple DIY job that takes less than 15 minutes with basic tools.
- A quality aftermarket brand like Standard Ignition or Walker Products is a reliable and cost-effective alternative to OEM.
Is Your Caravan Running Rough? It Could Be the MAP Sensor
If your 1996-2000 Dodge Caravan is experiencing problems like a shaky idle, poor acceleration, or suddenly bad fuel economy, a faulty Manifold Absolute Pressure (MAP) sensor is a common suspect. This sensor is a small but critical part of your engine management system. When it fails, it sends bad information to the engine's computer, leading to a host of drivability issues. Before you assume the worst, it's important to understand the symptoms and know how to choose the right replacement part.
First, Check for Vacuum Leaks
The symptoms of a bad MAP sensor can be identical to a vacuum leak from a cracked or disconnected hose. Before spending money on a new sensor, visually inspect all the small rubber vacuum lines connected to the intake manifold. A simple leak can trick the computer into thinking the MAP sensor is bad.
Symptoms of a Failing MAP Sensor
A bad MAP sensor can make your van difficult to drive. Here are the most common signs:
🎬 Watch this video for a clear explanation of MAP sensor symptoms.- Rough Idle: The engine may shake or run unevenly when you're stopped at a light.
- Poor Fuel Economy: A common sign is needing to fill up the gas tank more often than usual because the computer is injecting too much fuel.
- Lack of Power & Hesitation: The van may feel sluggish when you press the gas pedal and may hesitate or stumble during acceleration.
- Black Smoke from Exhaust: If the engine is running too rich (too much fuel), you may see black smoke coming from the tailpipe.
- Stalling: The engine might stall right after starting or when you shift into gear.
- Check Engine Light: A failing MAP sensor will almost always trigger the check engine light, with common codes being P0107 (voltage too low) and P0108 (voltage too high).
Choosing the Right Aftermarket MAP Sensor
For a vehicle of this age, a high-quality aftermarket MAP sensor is a smart and cost-effective choice. You don't necessarily need to hunt down an expensive Mopar part. The key is to choose a reputable brand. Based on owner experiences and brand reputation, aftermarket brands can be grouped into tiers.
Pro Tip: After replacing the sensor, it's a good idea to disconnect the battery's negative terminal for about 15 minutes. This will reset the engine computer and allow it to learn the new sensor's parameters.
| Tier | Brands | Assessment |
|---|---|---|

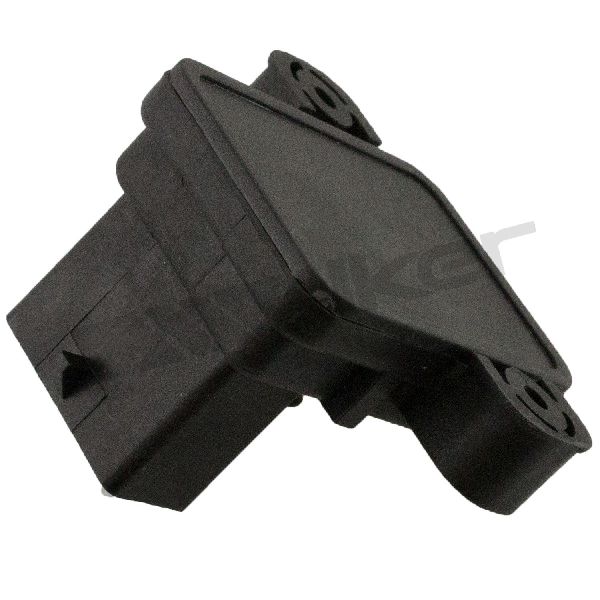

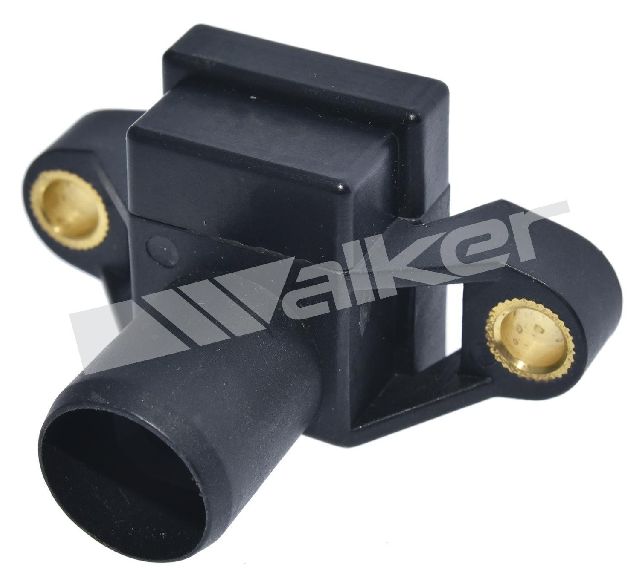

| Tier 1: Proven Quality | Standard Ignition (SMP), Spectra, Walker Products | These brands have a long-standing reputation for producing reliable sensors that meet or exceed OEM specifications. They are frequently recommended by mechanics and experienced DIYers. |

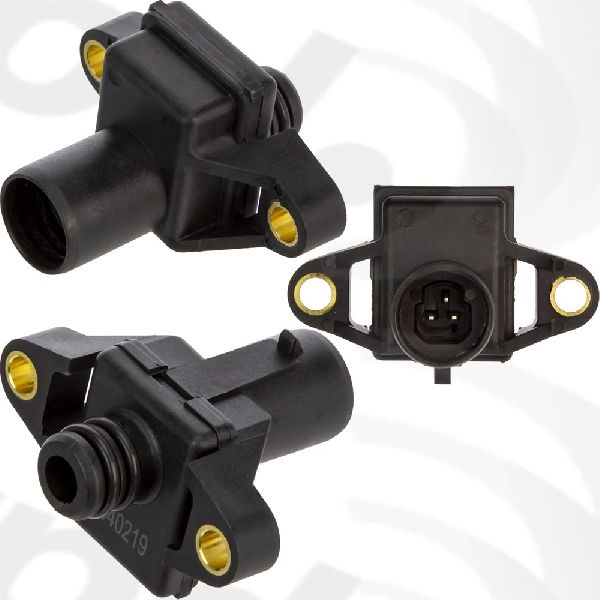

| Tier 2: Standard Replacement | Global Parts, True Tech | These brands offer a functional replacement at a lower cost. While they may not have the same long-term track record as Tier 1 brands, they are a suitable option for a budget-conscious repair. |
Frequently Asked Questions (FAQ)
Where is the MAP sensor located on a 1996-2000 Dodge Caravan?
The MAP sensor is typically located on or near the intake manifold (plenum). It is a small, black plastic sensor with an electrical connector and sometimes a vacuum hose attached. On many of these vans, it is mounted directly to the intake manifold, often near the firewall.
🎬 See how to locate and inspect your sensor in this video.Can I clean my MAP sensor?
While some people attempt to clean MAP sensors, it is generally not recommended and often ineffective. The internal components are sensitive, and cleaning sprays can potentially cause damage. Given the relatively low cost of a new aftermarket sensor, replacement is the most reliable solution.
🎬 Follow this step-by-step guide to replacing a Dodge MAP sensor.Are there any recalls for the MAP sensor on my Caravan?
No, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Dodge or the NHTSA for MAP sensor failure on the 1996-2000 Dodge Caravan. There was a recall for fuel rail O-rings that could cause leaks, but this is unrelated to the sensor itself.
What happens if I ignore a bad MAP sensor?
Continuing to drive with a faulty MAP sensor will result in poor performance and terrible fuel economy. In the long term, an engine running consistently rich can damage the catalytic converter and foul the spark plugs, leading to much more expensive repairs.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4686159 56028561

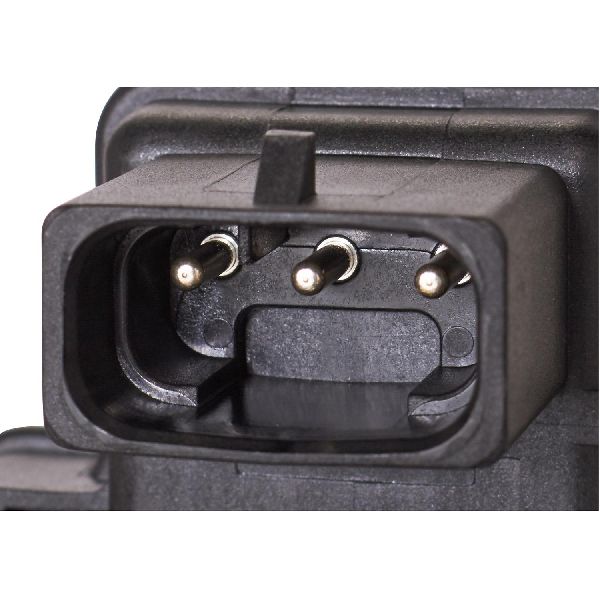

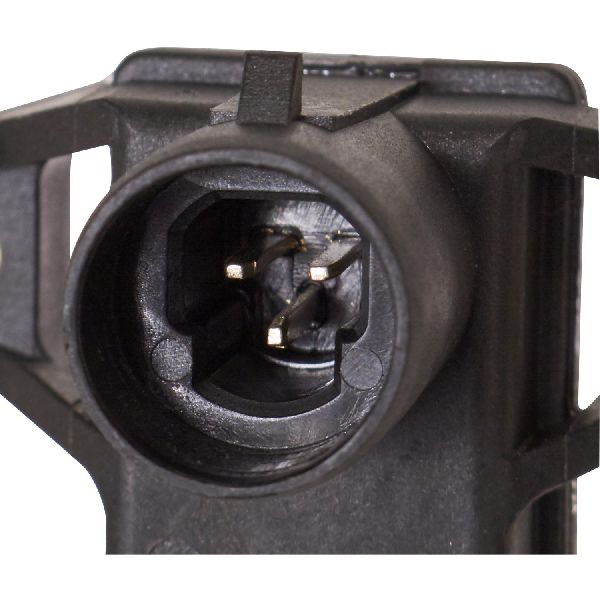

3-pin female connector. Mounts directly to the intake manifold. Operates on a 5-volt reference signal from the PCM.
