Ford Explorer HVAC Heater Control Valve Guide for 1996-2000 Models
Fix your Explorer's cabin temperature problems by understanding this critical, and often overlooked, part.
- A faulty heater control valve is a very common cause of heating and cooling issues in 1996-2000 Explorers.
- Symptoms include no heat, heat stuck on, or coolant leaks from the passenger side of the engine bay.
- Always inspect the small vacuum line attached to the valve for cracks or damage before replacing the valve itself.
- This is an inexpensive and easy part to replace for most DIY mechanics, often taking less than an hour.
Is Your Explorer's Heater Acting Up? It Could Be The Control Valve.
If you're dealing with a heater that's stuck on full blast, won't produce any heat at all, or if you're noticing a mysterious coolant leak, the HVAC Heater Control Valve is a prime suspect. This part is a common failure point on second-generation Ford Explorers, but it's a straightforward and affordable fix 🎬 Watch: How to replace the valve on a 2nd Gen Explorer. you can often do yourself.
Symptoms of a Failing Heater Control Valve
A bad heater control valve can cause several distinct problems. Here’s what to look for:
🎬 Watch this breakdown of common symptoms and their causes.- No Heat in the Cabin: The most common symptom is a lack of heat. This happens when the valve gets stuck in the closed position, preventing hot coolant from ever reaching the heater core.
- Heat is Always On: If the valve gets stuck open, hot coolant will constantly flow through the heater core. This means you'll get hot air blowing from the vents even when you have the A/C on.
- Coolant Leak: The plastic body of the valve can become brittle over time and crack, causing a coolant leak. You might notice puddles of coolant under the passenger side of the engine bay or smell the sweet scent of antifreeze. A significant leak can lead to low coolant levels and cause the engine to overheat.
- Temperature Fluctuates: If the valve isn't opening or closing properly, you might get sudden blasts of hot or cold air as it struggles to regulate the coolant flow.
Choosing the Right Aftermarket Part
When it comes to replacing this part on your Explorer, you have a few options. While Motorcraft is Ford's original equipment (OE) brand, several aftermarket brands offer quality replacements that are more budget-friendly.
Brand Tiers for the 1996-2000 Ford Explorer:
- Motorcraft (OEM): This is the original part your Explorer came with. It guarantees perfect fit and function and is recommended by Ford. However, it is the most expensive option. For an older vehicle, it may not be necessary unless you want the peace of mind of an OE part.

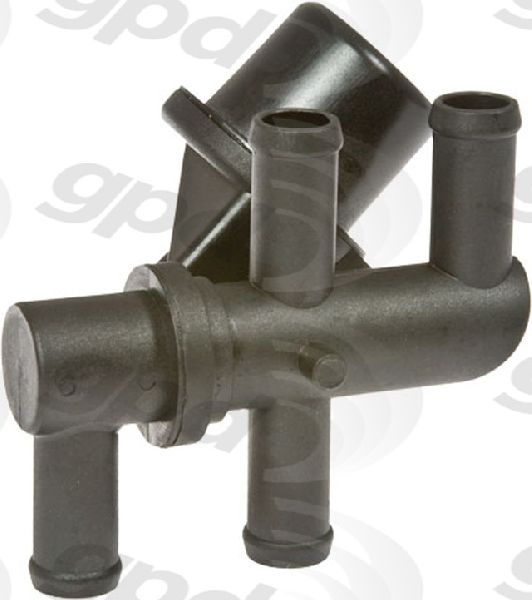

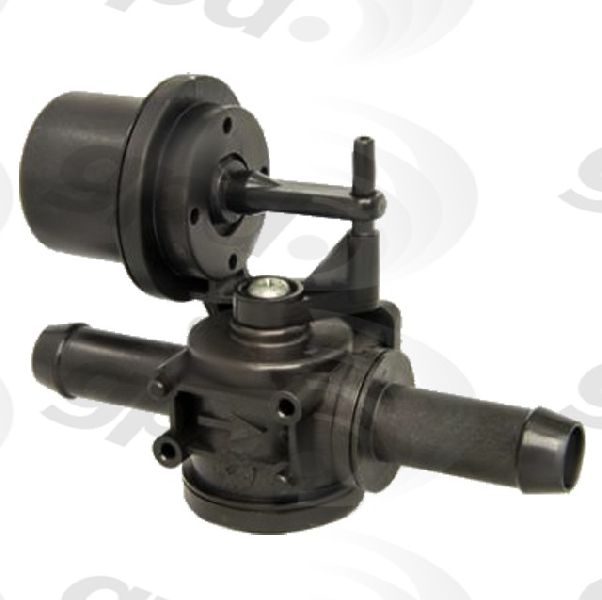

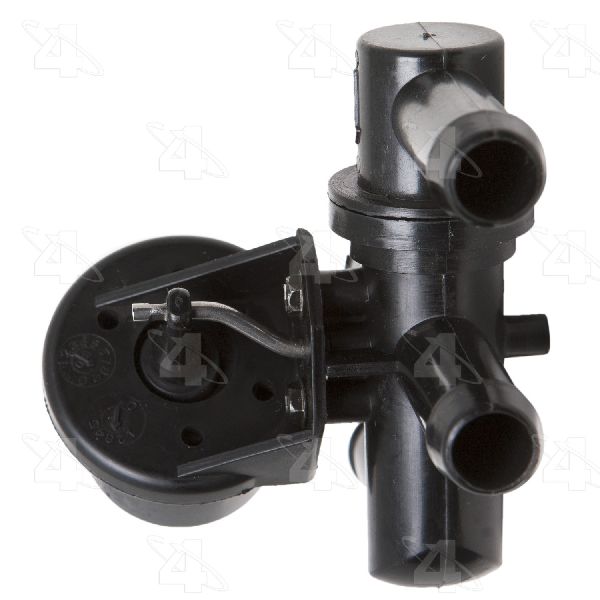

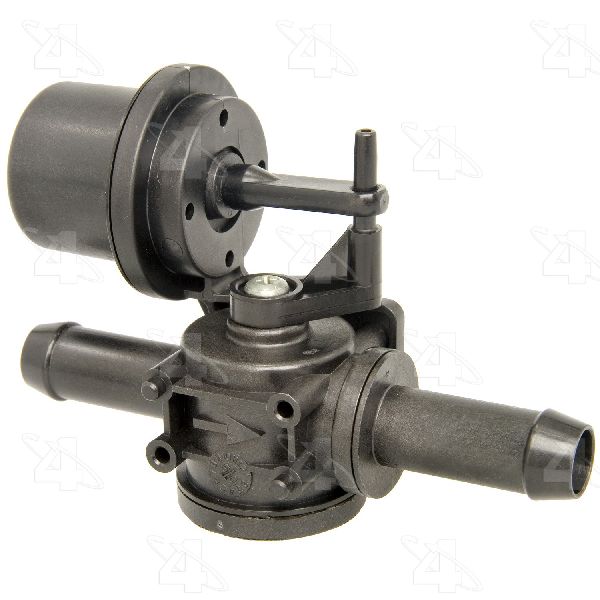

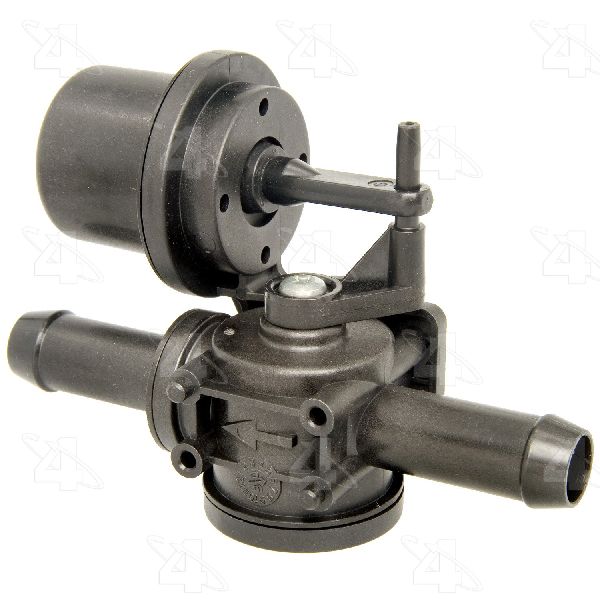

- Four Seasons / Global Parts (gpd): These are well-known aftermarket brands that produce a huge range of HVAC components. For a part like this heater control valve, their quality is generally considered very reliable for daily driving and is often a fraction of the OEM price. Some forum users have even noted that aftermarket parts can sometimes come from the same factory as the OEM part, just in a different box.
Cost Comparison
Here is a general breakdown of what you can expect to pay for a new heater control valve for your 1996-2000 Explorer. Keep in mind that prices can vary by supplier.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Four Seasons, Global Parts) | $20 - $56 |
| New OEM (Motorcraft) | $28 - $47 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions (FAQ)
Is replacing the heater control valve a DIY job?
Yes, for most people with basic hand tools, this is a very manageable DIY job. The valve is located in the engine bay on the passenger side, making it easy to access. The process involves draining a small amount of coolant, removing two heater hoses and a vacuum line, and swapping the valve. The entire job can typically be done in under an hour.
🎬 See a step-by-step walkthrough of the replacement process.What kind of coolant does my 1996-2000 Explorer need?
Your Explorer originally came with Ford's green-colored conventional coolant. When you replace the valve and top off the system, it's important to use the same type of coolant to avoid chemical compatibility issues. Always check your owner's manual to be certain.
Can I just bypass the heater control valve?
While you can technically bypass the valve by connecting the two heater hoses together, it is not recommended. Doing so would mean you have no control over the heat in your cabin; it would either be on all the time or you would have no heater core flow at all, depending on how you route the hoses.
Are there any recalls for the heater control valve on these Explorers?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any recalls specifically for the HVAC heater control valve on 1996-2000 Ford Explorers. Recalls found were for engine block heaters on much newer models.
Helpful Videos
Technical Specifications
OEM Part Numbers: F87Z-18495-AA F77Z-18495-AB

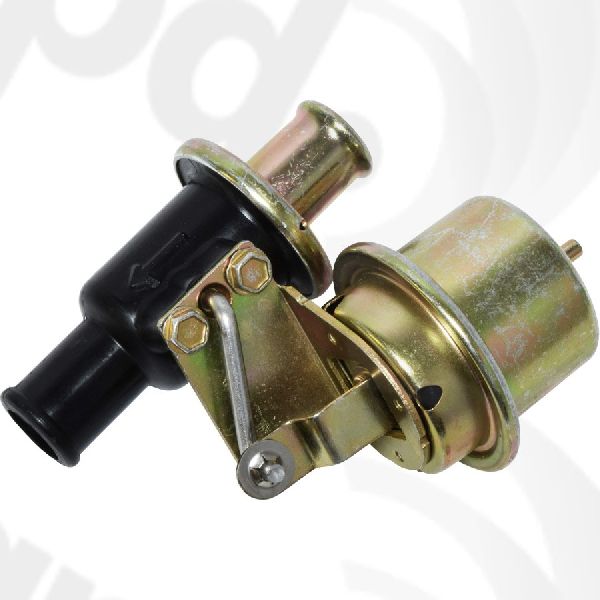

This is a 4-port, vacuum-actuated bypass heater control valve. It controls the flow of engine coolant to the heater core.
