A Ford Taurus Owner's Guide to the Starter Motor (1996-2000)
If your Taurus just clicks or cranks slowly, your starter might be the problem—here's how to choose the right replacement.
- The #1 killer of starters on the 3.0L OHV 'Vulcan' engine is oil leaking from the oil filter above it; clean the area and fix leaks before replacement.
- There are two different starters for the OHV and DOHC engines; they are not interchangeable, so you must verify your engine type.
- Symptoms like a single click, slow cranking (especially when hot), or intermittent starting strongly point to a failing starter, not always a bad battery.
- Quality aftermarket brands like ACDelco and MPA offer new parts that are a reliable and cost-effective alternative to a remanufactured OEM Motorcraft unit.
Is Your Taurus Starter Failing? Common Symptoms
A starter motor rarely fails without warning. For the 1996-2000 Ford Taurus, the signs are usually clear. If you notice any of these symptoms, it's time to inspect your starting system before you get stranded.
- Single Loud Click: You turn the key and hear one loud 'CLACK' from the engine bay, but the engine doesn't crank. This usually means the starter solenoid is engaging, but the motor itself isn't turning. Assuming your battery is good, this is a classic sign of a failed starter. 🎬 Watch: See and hear these common bad starter symptoms
- Slow, Labored Cranking: The engine turns over very slowly, like the battery is dying. A worn-out starter can draw too much power, causing this sluggish crank. This is especially common when the engine is hot, a condition known as 'heat soak'.
- Intermittent Starting: Your Taurus starts perfectly one day but refuses to crank the next. This unpredictability is often caused by worn internal brushes inside the starter motor, which make an inconsistent electrical connection.
- Grinding Noise: A harsh grinding or whirring sound when you try to start the car (or just after it starts) can mean the starter gear is damaged or not meshing properly with the engine's flywheel.
- No Sound at All: If you turn the key and nothing happens—no click, no crank—the problem could be the starter, but you should also check the battery, ignition switch, and starter relay first. 🎬 Watch: How to test if your starter is actually the problem
Known Issue: Oil Kills Starters on 3.0L OHV 'Vulcan' Engines

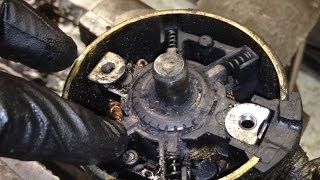

The single biggest cause of premature starter failure on the 3.0L OHV engine is its location. The starter is mounted directly below the oil filter. During oil changes, spilled oil inevitably runs down and soaks the starter. This oil seeps inside, contaminating the electrical brushes and turning them into a mushy paste, which leads to slow cranking and intermittent starting.
🎬 See how oil leaks destroy the Vulcan 3.0L starterPro Tip: When changing the oil on a 3.0L OHV Taurus, wrap the starter in a plastic bag or use a funnel to divert oil away from it. Cleaning the area thoroughly and fixing any oil filter gasket leaks before installing a new starter is critical to its survival.
Choosing the Right Aftermarket Starter
You don't need to buy from the dealer to get a quality part. Aftermarket brands offer excellent value and reliability. Here’s a breakdown of the brands available for your Taurus.
Common Ordering Mistake: OHV vs. DOHC Engines
The 1996-2000 Taurus used two different 3.0L V6 engines: the OHV 'Vulcan' and the DOHC 'Duratec'. These engines use different, non-interchangeable starters. The DOHC starter has a different number of teeth and will not fit the OHV engine, and vice-versa. Always verify your engine type before ordering to avoid getting the wrong part.
Brand Tiers for Your Taurus
- OEM (Motorcraft): Motorcraft is Ford's original parts brand. A Motorcraft starter (usually remanufactured for a vehicle this age) offers a guaranteed fit and has a strong reputation for reliability. It comes with a 2-year, unlimited mileage warranty. This is your best option for peace of mind, though it often comes at a higher price.
- Premium Aftermarket (ACDelco): ACDelco is a well-known and respected parts manufacturer. They offer new and remanufactured starters that provide a good balance of quality and cost. For many owners, a new ACDelco part is a smart choice that delivers performance close to OEM without the high price tag.

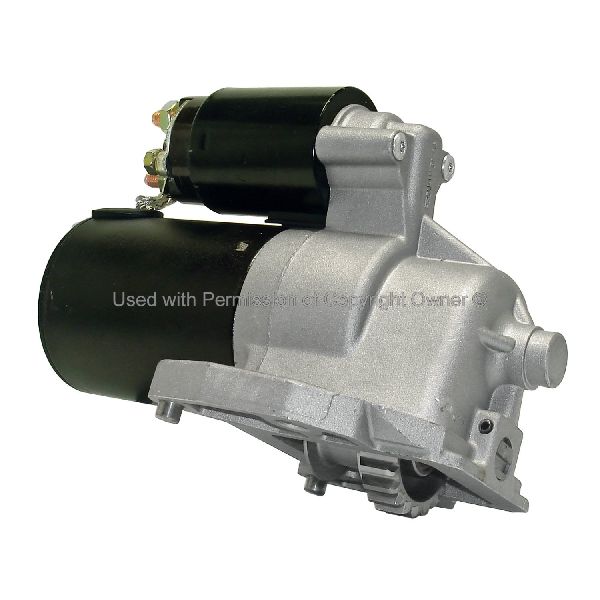

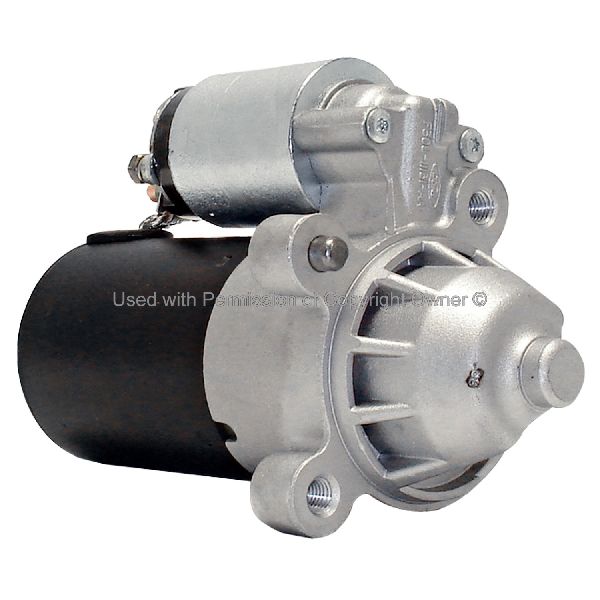

- Standard Aftermarket (MPA): Motorcar Parts of America (MPA) produces the Quality-Built line of parts. They focus on manufacturing 100% new starters, not remanufactured ones. MPA emphasizes their quality control and use of durable components like double-sealed bearings and high-quality lubricants. This brand represents a strong value, giving you a new part for a competitive price.
Ford Taurus Starter Replacement Cost (1996-2000)
The cost to replace your starter can vary depending on whether you do it yourself or go to a shop. The prices below are estimates.
| Part Type | Estimated Part Cost |
|---|---|
| New OEM (Motorcraft Reman) | $145 - $255 |
| New Aftermarket | $100 - $205 |
| Used OEM | $40 - $85 |
| Shop Labor | $80 - $115 |
| Total Professional Job | $225 - $370 |
Frequently Asked Questions (FAQ)
How do I know if it's the battery or the starter?
First, check your battery. Turn on your headlights; if they are bright, your battery is likely okay. If they are dim or don't turn on, the battery is the problem. If the lights are bright but dim significantly when you try to crank the engine, the starter is likely drawing too much power. A rapid clicking sound when you turn the key also often points to a weak battery that doesn't have enough power to turn the starter.
How difficult is it to replace the starter on a 1996-2000 Taurus?
For a DIYer with some experience, it's a moderately difficult job. It takes about 1.5 to 2.5 hours. You'll need to safely raise the front of the car, disconnect the battery, and work underneath the engine. The starter is held on by two or three 13mm bolts, and the electrical wires are attached with 10mm and 13mm nuts. Access can be tight, especially on the DOHC engine.
Why did my brand new starter fail after only a year?
If you have the 3.0L OHV 'Vulcan' engine, the most common reason is oil contamination. If you didn't fix the oil leak from the filter housing or pan gasket when you replaced the starter, the new one likely suffered the same fate. Always ensure the area is clean and leak-free before installing a new starter.
What are the OEM part numbers for the starter?
Part numbers can vary, but common Motorcraft remanufactured numbers are SA-887-RM for the 3.0L OHV engine and SA-896-RM for the 3.0L DOHC engine. Always confirm fitment with your vehicle's specific year and engine type before purchasing.
Helpful Videos
Technical Specifications
OEM Part Numbers: SA-887-RM (3.0L OHV) SA-896-RM (3.0L DOHC) F6DZ-11002-AA F68U-11000-AA 1F1Z-11002-AARM YF1Z-11002-AA
Voltage: 12V. Power Rating: ~1.4kW - 1.5kW. Rotation: Varies by engine (OHV vs DOHC). Tooth Count: Varies by engine (OHV vs DOHC). Always verify fitment by engine type.
