A Guide to the Starter Motor on Your 1996-2000 GMC C3500
From symptoms of failure to choosing the right aftermarket replacement, here's what you need to know to keep your GMT400 starting strong.
- A single click with no crank is a classic sign of a bad starter solenoid.
- For 6.5L Diesel models, the rear starter support bracket MUST be reinstalled to prevent catastrophic block damage.
- For 7.4L (454) models, upgrading to a high-torque gear-reduction starter can permanently solve common heat soak problems.
- Before replacing the starter, always verify your battery is charged and all cable connections are clean and tight.
Is Your C3500 Starter Failing?
A starter motor rarely fails without warning. For a heavy-duty truck like the C3500, a reliable start is critical. Watch for these signs that your starter is on its way out.
- Single, Loud Click: You turn the key and hear one sharp click, but the engine doesn't crank. This often points to a failed starter solenoid, which is the component that engages the starter motor.
- Slow, Labored Cranking: The engine turns over much slower than usual, as if the battery is weak. If your batteries are good, the starter motor itself could have high internal resistance, drawing too much power.
- Grinding or Whirring Noise: A harsh grinding sound during cranking means the starter gear isn't meshing correctly with the engine's flywheel. A high-pitched whirring noise without the engine turning over means the starter motor is spinning, but the gear isn't engaging at all.
- Intermittent No-Start: The truck starts fine sometimes and fails to crank at others. This can be caused by a dead spot in the starter motor or a failing solenoid.
- No-Start When Hot: The engine starts perfectly when cold, but after driving and getting up to temperature, it refuses to crank. This is a classic symptom of "heat soak."
Vehicle-Specific Known Issues
Critical: The 6.5L Diesel Starter Support Bracket
If you have a 6.5L diesel engine, your starter 🎬 See why this 6.5L diesel support bracket is so critical has a rear support bracket that bolts to the engine block. This bracket is absolutely essential. Mechanics sometimes fail to reinstall it, which allows the heavy starter to flex during engagement. This can lead to broken mounting bolts or, in a worst-case scenario, a cracked engine block—a catastrophic and expensive failure. When replacing the starter, you or your mechanic MUST ensure this bracket is reinstalled correctly.
Pro Tip: Dealing with 7.4L (454) Heat Soak
The 7.4L V8 engine generates significant heat, and the starter is located near the exhaust manifold. This can cause "heat soak," where the starter gets so hot that its internal electrical resistance increases, preventing it from working until it cools down. If you experience this, consider upgrading to a high-torque, gear-reduction starter or adding a starter heat shield.
🎬 Watch this step-by-step starter replacement on a 7.4L V8Choosing the Right Aftermarket Starter
The original starters on these trucks were often large, direct-drive units. Many modern aftermarket replacements are smaller, more efficient gear-reduction (PMGR) models that provide more cranking torque with less battery draw.
Tier 1: High-Torque & Performance Brands (Powermaster, Proform)
These brands specialize in high-performance starters. A high-torque, gear-reduction starter from a brand like Powermaster is an excellent upgrade, not just for modified trucks. They are smaller, lighter, and spin the engine faster. Most importantly, they are highly resistant to heat soak, making them a permanent solution for the common issue on 7.4L models. Owners who install them report very high satisfaction.
Tier 2: Premium New Replacements (ACDelco Gold)
For a stock truck used for daily driving or work, you can't go wrong with a new starter from ACDelco's professional line. These are built to meet or exceed original equipment standards using 100% new components. This option provides excellent reliability and fit without the higher cost of a dedicated performance brand.
Tier 3: Standard & Remanufactured Replacements (MPA, ACDelco Professional Remanufactured)
Remanufactured starters from reputable brands like MPA or ACDelco offer a good balance of value and quality. These are original starter cores that have been rebuilt with new wear items. While they can be a cost-effective solution, quality can sometimes be inconsistent compared to a brand-new unit. Many owners use them successfully, but the risk of an early failure is slightly higher.
| Part Type | Estimated Price Range | Notes |
|---|---|---|
| New Aftermarket (Standard) | $108 - $200 | Good for most stock applications. |
| New Aftermarket (High-Torque) | $200 - $434 | Recommended for 7.4L engines or modified trucks. |
| Remanufactured Aftermarket | $90 - $180 | A budget-friendly option. Core charge may apply. |
| Shop Labor | $100 - $250 | Typically 1-1.5 hours of labor. |
Frequently Asked Questions (FAQ)
Do I need any special tools for the replacement?
No, the job requires basic hand tools. You will likely need 13mm and 15mm sockets for the mounting bolts, and 8mm or 10mm sockets for the wire terminals. Always disconnect the negative battery terminal before you begin.
What's the difference between a direct-drive and a gear-reduction starter?
Direct-drive starters are an older design where the motor armature spins the starter gear directly. Gear-reduction (PMGR) starters use internal gears to multiply the motor's torque. This allows for a smaller, lighter, and more efficient motor that can crank the engine faster with less strain on the battery.
My starter just clicks. Is it broken or is it the battery?
A single, loud click usually points to the starter solenoid. However, a series of rapid clicks often means the battery is too weak to turn the engine over. Before replacing the starter, always make sure your battery is fully charged and the terminals are clean and tight. Poor connections 🎬 Watch: A quick and easy way to test your starter at the battery are a common issue on these trucks.
Are there any recalls on the starter for my truck?
No, as of early 2026, there are no open safety recalls issued by the NHTSA for the starter motor on the 1996-2000 GMC C3500.

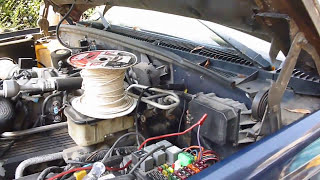

Helpful Videos
Technical Specifications
OEM Part Numbers: 10465578 19136219 9000879
The C3500 was available with several engines, primarily the 5.7L V8, 7.4L V8, and 6.5L Turbo Diesel V8. Starters differ between gas and diesel models, and sometimes between different transmissions. It is critical to order the correct part for your specific engine and drivetrain. Many aftermarket options are gear-reduction (PMGR) style, which are an upgrade over the original direct-drive units.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
