Guide to Replacing the Starter Motor on a 1996-2000 GMC K2500
Don't get stranded by a bad starter; here's what you need to know to get your heavy-duty truck cranking reliably again.
- Always test the battery and check for clean, tight cable connections before condemning the starter.
- Upgrading to a gear-reduction starter from a brand like Powermaster or Proform is a popular and effective choice for better cranking torque.
- For 6.5L diesel models, ensuring the starter support bracket is used and replacing the starter bolts is critical to prevent breakage.
- A missing heat shield can cause heat-soak issues, where the starter won't work when hot. Ensure it is in place.
Is Your K2500 Starter Failing?

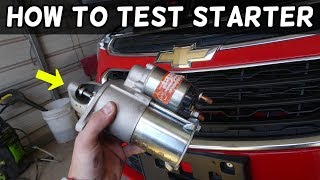

A failing starter on your 1996-2000 GMC K2500 can leave you stranded. These trucks are built to work, and a no-start situation is more than an inconvenience. Before you blame the battery, it's important to recognize the specific signs of a bad starter. Being aware of these symptoms can help you diagnose the problem correctly 🎬 Watch: How to test if your GM starter is bad and get your truck back on the road.
Common Failure Symptoms
- Single Loud Click, No Start: You turn the key and hear one loud "CLICK" from the engine bay, but the engine doesn't crank. This usually means the starter solenoid is engaging, but the motor itself isn't spinning.
- Grinding Noise: A harsh, grinding sound when you try to start the engine suggests the starter gear isn't meshing correctly with the flywheel, or the gear is damaged. This can cause damage to the flywheel if ignored.
- Slow, Labored Cranking: If the engine turns over much slower than usual, like the battery is weak, it could be a sign that the starter motor is wearing out and drawing too much power. This is especially noticeable on the high-compression 6.5L diesel engines.
- No Sound at All: You turn the key and get complete silence. After confirming the battery is good, this points to a total failure in the starter circuit, which could be the solenoid or the motor itself.
- Intermittent Starting: The truck starts fine one day but refuses the next. This can be caused by worn internal components or a developing electrical issue within the starter.
Choosing Your New Aftermarket Starter
For a vehicle from the 1996-2000 model years, a new aftermarket starter is a smart and cost-effective choice. OEM quality was good, but modern aftermarket units often provide equal reliability and sometimes even superior performance, especially with gear-reduction designs. Many owners of GMT400 trucks like yours upgrade to a gear-reduction starter because they are smaller, lighter, and provide more torque, which helps turn over big gas and diesel engines more easily.
Aftermarket Brand Tiers
When shopping for a new starter, you'll find several options. Here’s a breakdown of the available brands to help you choose:
- Performance Tier (Powermaster, Proform): These brands specialize in high-torque, gear-reduction starters. They are an excellent upgrade for any K2500, especially those with the 7.4L big-block or 6.5L diesel engines, or trucks that operate in very cold climates. Powermaster is often praised for its build quality and fast cranking speed. Proform also offers powerful and lightweight options that provide good header clearance.

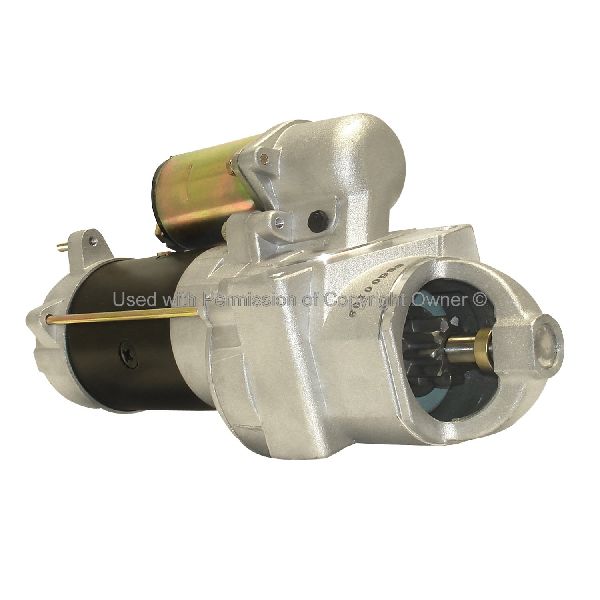

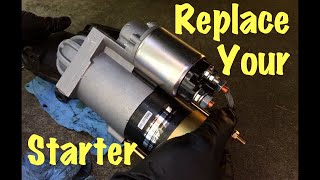

- Standard Replacement Tier (MPA - Motor Parts of America): MPA's Quality-Built line offers reliable, OE-specification starters that are a direct-fit replacement. These units are 100% tested to ensure they meet performance and durability standards, making them a solid choice for a stock truck 🎬 See this step-by-step Vortec engine starter replacement walkthrough used for daily driving or regular work duties.
Pro Tip: Check for Heat Soak and Bad Grounds
A common issue on older GM trucks is "heat soak," where the starter gets too hot from the exhaust manifold and refuses to work until it cools down. A missing or damaged heat shield is often the cause. Also, ensure your truck's ground straps are clean and secure, as a bad ground can mimic the symptoms of a failing starter.
Cost of Replacing a K2500 Starter
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter | $108.44 - $433.59 |
| New OEM (ACDelco) Starter | $150 - $350 |
| Remanufactured Starter | $80 - $200 |
| Shop Labor | $120 - $250 |
Cost estimates are based on national averages and may vary by location and specific vehicle configuration.
Frequently Asked Questions
Is it my starter or my battery?
A weak battery often causes a rapid-fire clicking sound, while a bad starter typically makes a single, solid click. Before replacing the starter, always have your battery load-tested at an auto parts store. Also, check for clean, tight connections at the battery terminals and starter.
Should I get a gear-reduction starter for my K2500?
Yes, it's a highly recommended upgrade. Gear-reduction starters are lighter, more powerful, and draw less current from the battery. This results in faster, more reliable starts, especially for the larger 7.4L and 6.5L diesel engines. Brands like Powermaster and Proform specialize in these.
Do I need to replace the starter bolts?
It is highly recommended, especially on the 6.5L diesel models. The original bolts can stretch or corrode, leading to misalignment or breakage. New, high-quality bolts are inexpensive and ensure the new starter is mounted securely, preventing damage to the starter 🎬 Important: See why the 6.5L diesel starter bracket is essential or the engine block.
Are there any recalls or TSBs for the starter?
Our search of the NHTSA database and for Technical Service Bulletins (TSBs) did not find any specific recalls or bulletins directly related to starter motor failure for the 1996-2000 GMC K2500. Most issues are related to age and normal wear.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10465167 323-485 10465389 323-1064 10465054 323-447
The 1996-2000 GMC K2500 used different starters depending on the engine (5.0L, 5.7L, 7.4L gas, or 6.5L diesel). Original starters were typically large, direct-drive units. Many aftermarket replacements are smaller, more efficient gear-reduction (PMGR) style starters. The starter is located on the passenger side of the engine block, adjacent to the oil pan.
