A/C System O-Ring and Gasket Kit Guide for 1996-2000 GMC K3500
Fixing a weak or non-working air conditioner on your GMT400 truck often starts with finding and sealing a refrigerant leak.
- A gradual loss of A/C cooling in your K3500 is most likely a refrigerant leak, often from old, hardened o-rings.
- Replacing o-rings requires specialized equipment to recover refrigerant and then vacuum and recharge the system. This is not a simple DIY job without the right tools.
- Always use new, green or black HNBR o-rings compatible with R134a refrigerant and lubricate them with PAG 150 oil before installation.
- Common leak points on these trucks include the compressor line seals and the service port Schrader valves.
Is Your K3500's A/C Blowing Warm?
If the air conditioning in your 1996-2000 GMC K3500 isn't as cold as it used to be, or doesn't work at all, the most common cause is a refrigerant leak. On these GMT400 trucks, the seals throughout the A/C system are a frequent source of these leaks. An oily residue or caked-on dirt around A/C line connections is a tell-tale sign of a leaking o-ring, as the refrigerant carries lubricating oil with it when it escapes.
Common Leak Points on the 1996-2000 K3500
While an o-ring can fail at any connection, some spots on these trucks are more common culprits:

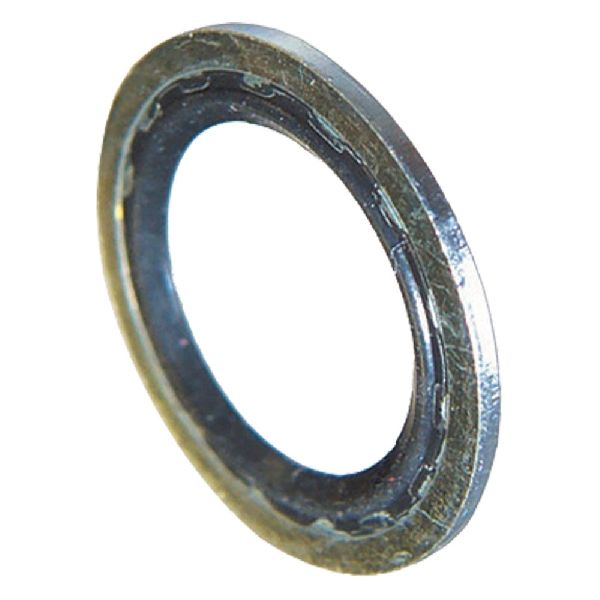

- A/C Compressor Seals: The seals where the lines connect to the compressor are a known weak point. The compressor itself can also develop leaks from its case seals, often called "belly leaks".
- Schrader Valves: The service ports (where gauges are connected) have small valves inside, similar to a tire valve, that can leak over time.
- Condenser Connections: The o-rings at the condenser, located in front of the radiator, can also degrade and leak.
Professional Equipment Required
Replacing A/C o-rings is not just a simple swap. The system is under high pressure and contains refrigerant that is regulated. Federal law requires the system to be evacuated with a special recovery machine before it can be opened. After the repair, it must be vacuum-tested for other leaks and then recharged with a precise amount of refrigerant. This is a job for a qualified shop or a DIYer with the proper A/C service equipment.
Choosing the Right Aftermarket O-Ring Kit
For a part like an o-ring kit, you don't necessarily need to buy from the dealer. Reputable aftermarket brands offer quality kits that meet the requirements for your truck's A/C system.

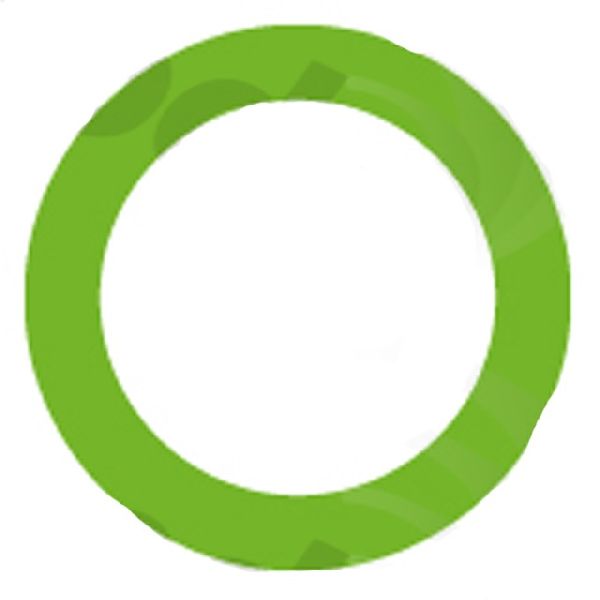

- Material is Key: Your K3500 uses R134a refrigerant, which requires specific green or black HNBR (Highly Saturated Nitrile Butadiene Rubber) o-rings. Kits from established brands will contain the correct material.
- Brand Tiers:

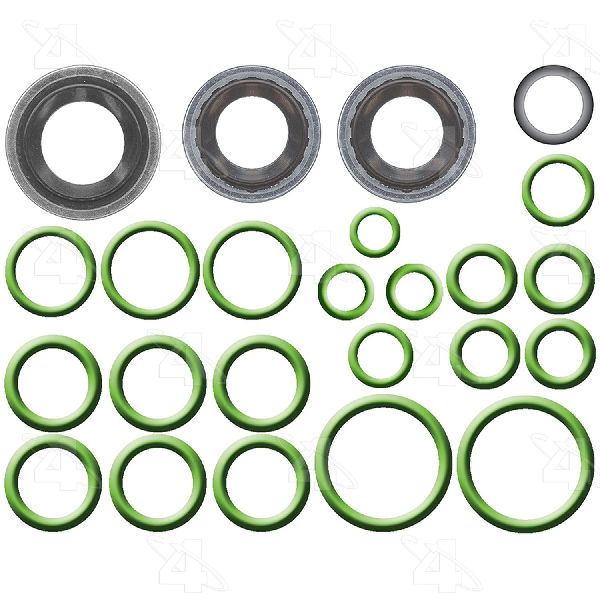

- Four Seasons: A widely recognized and generally trusted brand in the A/C parts world. They are a common choice for both DIY and professional repairs.

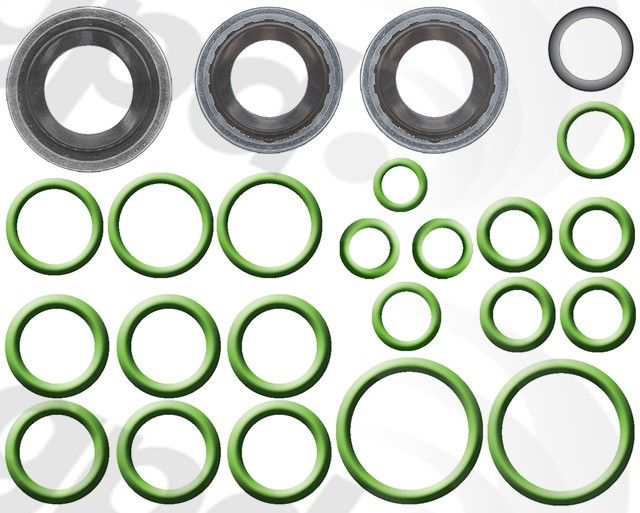

- Global Parts (GPD): Another available aftermarket brand. While less discussed in forums, they provide an alternative option. Some users have reported issues with more complex parts like compressors from this brand, but o-ring kits are a much simpler component.
Always Replace, Never Reuse
Any time you disconnect an A/C line, the o-ring for that connection must be replaced. Old o-rings have been compressed and heat-cycled, and will not create a reliable seal if reused, leading to a repeat failure. Before installing a new o-ring, lightly lubricate it with the correct type of A/C oil (PAG 150 for this truck) to ensure it seats correctly and doesn't tear.
Cost to Replace A/C O-Rings on a 1996-2000 GMC K3500
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket O-Ring Kit | $1 - $14 |
| Shop Labor (Evacuate, Replace Seal, Vacuum, Recharge) | $200 - $450+ |
Note: Labor costs can vary significantly based on which seal is being replaced. A simple fix on an accessible line will be on the lower end, while replacing a seal that requires removing many other components (like the evaporator core) can be much more expensive.
Frequently Asked Questions
Do I need a whole kit just to fix one leak?
Not necessarily. If you've identified a single leaking o-ring, you can often buy it individually. However, these kits are very inexpensive and provide a full set of seals, which is useful if you are replacing a major component like the compressor or if you want to have all potential seals on hand during the repair.
What refrigerant and oil does my 1996-2000 K3500 use?
Your truck's A/C system was factory-filled with R134a refrigerant. The compatible compressor oil is PAG 150. Do not mix refrigerant or oil types.
Are there any recalls for the A/C system on my truck?
No specific recalls or technical service bulletins (TSBs) related to A/C o-rings were found for the 1996-2000 GMC K3500. Most issues are related to the age and normal wear of the components.
Can I use a stop-leak product instead?
While some stop-leak products exist, they are often a temporary fix at best. For a reliable, long-term repair, the only solution is to replace the failed seal. Many professional mechanics advise against using stop-leak as it can potentially clog other A/C system components like the orifice tube or condenser.
Technical Specifications
Refrigerant Type: R134a Required Oil: PAG 150 O-Ring Material: HNBR (Highly Saturated Nitrile Butadiene Rubber)
