Engine Coolant Bypass Hose Guide for 1996-2000 GMC K3500
Keep your workhorse K3500 from overheating by knowing when to replace this critical coolant hose.
- A failing bypass hose will typically cause coolant leaks, overheating, or a constantly low coolant level.
- This is a critical part; driving with a significant leak can lead to severe engine damage.
- Aftermarket brands like Gates and Continental are considered high-quality replacements, while Dayco is a reliable standard option.
- While replacing the bypass hose, it is wise to inspect all other coolant hoses and replace the clamps.
Is Your K3500's Engine Coolant Bypass Hose Failing?
On a heavy-duty truck like the GMC K3500 from 1996-2000, the cooling system works hard. Hoses are a common failure point due to constant exposure to heat, pressure, and vibration. The engine coolant bypass hose is no exception. After two-plus decades, the original rubber has likely become brittle or soft, leading to potential problems.
Symptoms of a Bad Bypass Hose
Catching a bad hose early can save you from being stranded with an overheating engine. Look out for these signs:
- Coolant Leaks: This is the most obvious symptom. You might see puddles of green or orange coolant under your truck, or notice white or crusty residue on the hose itself or nearby engine parts. A small leak can produce steam or a sweet coolant smell from the engine bay.
- Low Coolant Level: If you find yourself frequently topping off the coolant reservoir, you likely have a slow leak somewhere in the system. A deteriorating bypass hose is a common culprit.
- Engine Overheating: A significant leak from the bypass hose can lead to a rapid loss of coolant, causing the engine temperature gauge to climb into the red. Running an engine while it's overheating can cause severe damage.
- Spongy or Hard Hoses: When the engine is cool, feel the hose. If it feels mushy, spongy, or rock-hard and brittle, it's time for a replacement. A healthy hose should be firm but flexible.
Critical Warning: Do Not Ignore Overheating
If your temperature gauge is in the red, pull over and shut off the engine as soon as it is safe to do so. An overheating engine can lead to catastrophic damage, including warped cylinder heads or a cracked engine block.
Choosing the Right Aftermarket Bypass Hose
For the 1996-2000 GMC K3500, original equipment (OEM) hoses can be difficult to find. Fortunately, reputable aftermarket brands offer quality replacements. The main differences often come down to material quality and precise fit.
Aftermarket Brand Tiers
- Top Tier (Gates, Continental): Gates is a well-regarded name in the aftermarket for hoses and belts. Forum discussions frequently mention that Gates hoses are often thicker and offer a superior fit compared to some other brands. Continental (formerly Goodyear) is another premium brand known for quality materials that meet or exceed OEM specifications.
- Standard Tier (Dayco): Dayco is a widely available and generally reliable option. While some users report success, others have occasionally noted fitment issues or thinner material compared to Gates. However, for many applications, Dayco hoses perform without issue and are a cost-effective choice.
Pro Tip: Replace Your Hose Clamps
When replacing any coolant hose, it's best practice to also replace the hose clamps. Old clamps can lose their tension over time, leading to leaks even with a new hose. Worm-gear clamps are common, but many mechanics prefer spring-style clamps as they maintain constant tension as the hose material expands and contracts with temperature changes.
Known Issues, Recalls, or TSBs
Searches for the 1996-2000 GMC K3500 did not reveal any specific recalls or Technical Service Bulletins (TSBs) directly related to the engine coolant bypass hose. Most failures are due to the age and natural degradation of the rubber material. While there are recalls for cooling system components on other GM models and years, none apply to the cooling hoses of this specific truck.
Cost of Replacing the Engine Coolant Bypass Hose
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $14.17 - $25.19 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions (FAQ)
Where is the engine coolant bypass hose located on my K3500?

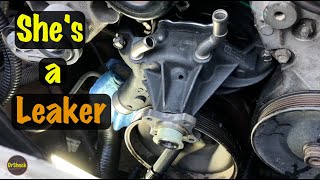

The bypass hose is typically a short, molded hose that runs from the water pump to the engine's 🎬 See how to replace a leaking water pump on Vortec engines. intake manifold. Its exact location can vary slightly between the 5.7L and 7.4L engines available in these trucks, but it will always be near the top front of the engine.
Can I replace the bypass hose myself?
Yes, this is a DIY-feasible job for someone with basic mechanical skills. It requires draining some coolant, removing the old hose clamps and hose, and installing the new parts. Access can sometimes be tight, requiring the removal of other components like the air intake tube. Always allow the engine to cool completely before working on the cooling system.
Should I replace other cooling system parts at the same time?

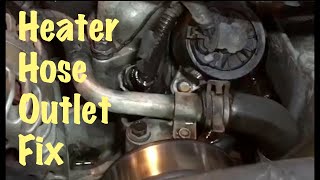

If one hose has failed due to age, others are likely not far behind. It is highly recommended to inspect all other coolant hoses, including the upper and lower radiator hoses 🎬 Watch how to replace the heater hose outlet on your truck. and heater hoses. If they feel brittle or soft, it's cost-effective to replace them all at once to prevent future failures.
What kind of coolant should I use in my 1996-2000 K3500?
These trucks originally used GM's Dex-Cool coolant, which is orange. It is important not to mix coolant types. When refilling the system after your repair, use a coolant that meets the original GM specifications to prevent corrosion and cooling system problems.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10243629
This is a molded rubber hose designed to fit between the water pump and intake manifold. Dimensions vary slightly based on engine (5.7L or 7.4L), so ensure you order the correct part for your specific truck.
