GMC K3500 Power Steering Pump: A Complete Guide for 1996-2000
Everything you need to know before replacing the power steering pump on your heavy-duty GMC truck.
- This pump powers both your steering and brakes via the hydro-boost system; its failure is a critical safety issue.
- You MUST use a power steering pulley puller/installer tool to perform this replacement.
- New aftermarket pumps from brands like PWR are generally more reliable than cheaper remanufactured options from Cardone or BBB.
- Always flush the old fluid and bleed the new system properly to prevent immediate damage to the new pump.
Symptoms of a Failing Power Steering Pump
A failing power steering pump on your K3500 will give you some clear warning signs. Because it powers your brakes too, you should not ignore these symptoms.
- Whining or Groaning Noises: A common first sign is a whining noise that gets louder when you turn the steering wheel. This is often caused by air in the system or a pump that is wearing out.
- Stiff Steering: If turning the wheel, especially at low speeds or when parked, becomes very difficult, the pump is likely not producing enough pressure.
- Hard Brake Pedal: Since the pump powers your hydro-boost, a failing pump will result in a brake pedal that is very hard to press and requires much more effort to stop the truck.
- Fluid Leaks: Puddles of red or amber fluid under the front of your truck are a sure sign of a leak. Check the pump, hoses, and connections for wetness.
Critical Failure Warning
A complete failure of the power steering pump will result in the immediate loss of both power steering and power brakes. The truck will still be steerable and the brakes will still function, but it will require significantly more physical effort. This can be very dangerous, especially at high speeds or in an emergency.
Choosing the Right Aftermarket Pump
When it comes to aftermarket parts for your K3500, not all brands are created equal. Owner experiences show a wide range in quality, especially with remanufactured parts. Here’s a breakdown of what to expect.
OEM vs. Aftermarket Quality
For a GMT400 truck like yours, many owners who have tried multiple aftermarket pumps recommend using a new OEM pump from GM for the best reliability, though it is the most expensive option. However, quality NEW aftermarket pumps can offer a good balance of price and performance, and are often a better choice than cheaper remanufactured units which have a reputation for high failure rates.
Brand Tiers for Your K3500

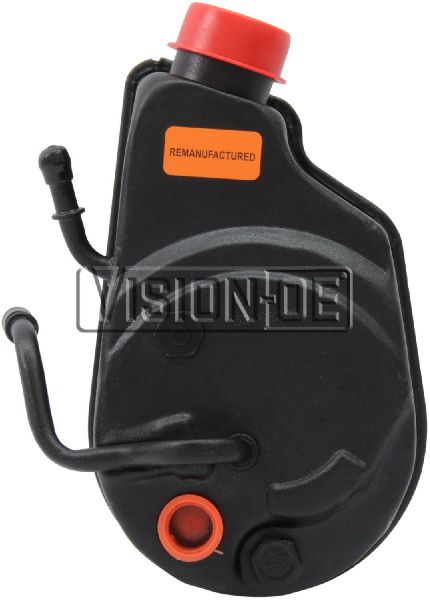

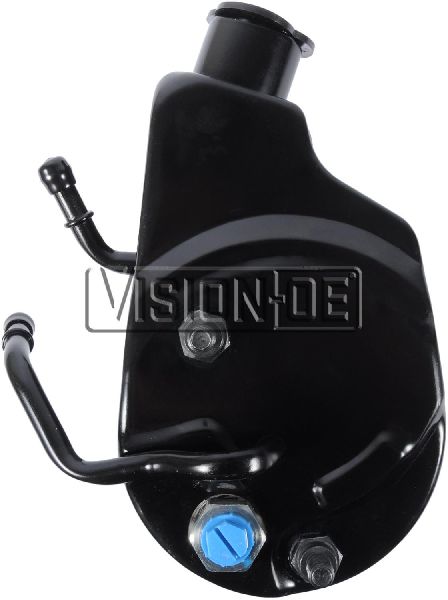

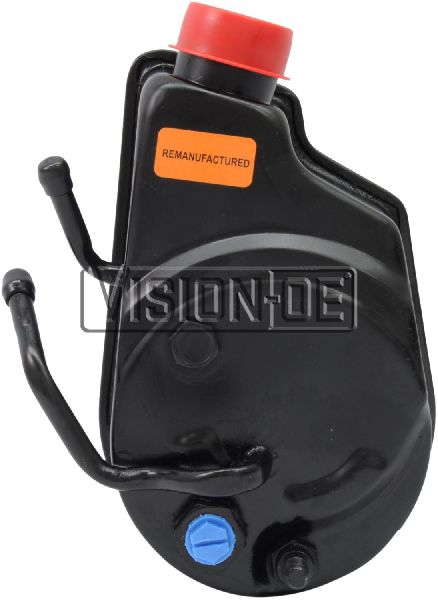

- Economy (Remanufactured): Brands like Cardone and BBB Industries fall into this category. They are widely available and affordable. However, they are typically remanufactured and have very mixed reviews from truck owners. Many report premature failures, so while the initial cost is low, you may end up replacing it more than once. These are a budget option, but carry some risk.
- Standard (New): Brands like PWR and Replacement offer completely new pumps, not remanufactured ones. These are designed to meet or exceed original specifications and generally have better reliability out of the box than remanufactured units. They represent a solid middle-ground for daily drivers and work trucks.
- High-Performance / Heavy-Duty: PSC Motor Sports is a premium brand that builds new, high-performance pumps. These are engineered for extreme use, such as trucks with oversized tires or those used for heavy towing and off-roading. They provide higher pressure and are built for durability, but come at a significantly higher price.
Pro Tip: Check What's Included
Before you buy, check if the pump comes with a new reservoir. The filter screen inside the reservoir can get clogged over time. A pump that includes a new reservoir, like many from PWR, can save you a headache. Also, confirm if the pulley is included. Most pumps for the K3500 do not include a pulley; you will need to remove your old one and install it on the new pump.
Power Steering Pump Replacement Cost
The cost to replace your K3500's power steering pump depends on the part you choose and who does the work. Labor at a repair shop can range from $270 to $400.
| Part Type | Estimated Part Cost |
|---|---|
| New Aftermarket | $79.89 - $400.46 |
| Remanufactured Aftermarket | $80 - $150 |
| New OEM | $250 - $450 |
Frequently Asked Questions
Do I need a special tool to replace the power steering pump?
Yes, you absolutely need a power steering pump pulley puller and installer tool. The mounting bolts for the pump are located behind the pulley. You cannot do this job without this specific tool. You can often rent one from an auto parts store.
Is this a difficult job to do myself?
For a DIY mechanic with some experience, it is a manageable job. It takes a few hours and requires the special pulley tool. Access to the bolts and lines can be tight. It's important to flush the system of old fluid and properly bleed the air out of the new system to avoid damaging the new pump.
Are there any recalls for the 1996-2000 GMC K3500 power steering pump?
No. As of early 2026, there are no active recalls or specific Technical Service Bulletins (TSBs) from GM or the NHTSA for the power steering pump on the 1996-2000 GMC K3500.
Should I replace the hoses at the same time?
It is highly recommended. Hoses that are over 5 years old can become brittle and are a common source of leaks. Since you are already replacing the pump, replacing the high-pressure and return lines is a smart move to prevent future problems.
Technical Specifications
This vehicle uses a belt-driven hydraulic pump, often with an integrated fluid reservoir. It powers a hydro-boost system for both steering and braking assist. The pulley is a press-on type and is typically not included with the new pump.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
