Engine Coolant Thermostat Guide for the 1996-2000 Toyota RAV4
Keep your first-generation RAV4's engine temperature stable by understanding and choosing the right replacement thermostat.
- A failing thermostat usually gets stuck open, causing a low temperature gauge reading, poor heat, and a P0125 code.
- Always use the correct 180°F (82°C) thermostat and replace the gasket to prevent leaks.
- Replacement is a manageable DIY job, but requires removing the oil filter for access to the housing on the lower radiator hose inlet.
- Stick with OEM, Aisin, or other reputable brands like Beck Arnley or Gates for best results.
Symptoms of a Failing Thermostat
A thermostat can fail in two ways: stuck open or stuck closed. Each failure has its own set of symptoms.
Stuck Closed: Overheating Risk
If the thermostat is stuck closed, it will not allow coolant to flow to the radiator. This is a serious issue that will cause the engine to overheat quickly. You will see the temperature gauge climb into the red, and you may hear gurgling noises or see steam from the engine bay. If you suspect this, stop driving immediately to prevent major engine damage.
Stuck Open: Engine Too Cool
This is the more common failure mode. When the thermostat is stuck open, coolant constantly circulates through the radiator, preventing the engine from reaching its proper operating temperature. Symptoms include:
- Temperature gauge stays on the low end, especially when driving at highway speeds.
- Heater blows lukewarm or cold air.
- Check Engine Light may come on, often with code P0125 🎬 Watch: A simple fix for the P0125 engine code (Insufficient Coolant Temperature for Closed Loop Fuel Control). 🎬 See how to clear a P0125 code with two DIY methods
- Decreased fuel economy because the engine computer keeps the fuel mixture rich.
Choosing the Right Aftermarket Thermostat
For a critical part like a thermostat, quality matters. While an OEM Toyota thermostat is always a safe bet, several aftermarket brands offer reliable alternatives. It is crucial to get the correct 180°F / 82°C temperature rating for your RAV4.
Brand Quality Tiers:

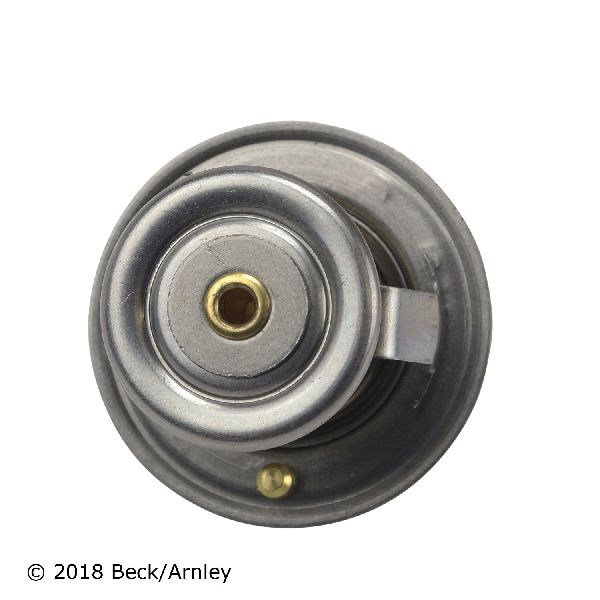

- Top Tier (OEM or Equivalent): An OEM Toyota thermostat (part number 90916-03084, which may be superseded by 90916-A3003) is the benchmark for quality. Brands like Aisin are often the original equipment manufacturer for Toyota, making them an excellent choice. Beck Arnley is also a reliable option, often repackaging OEM parts.

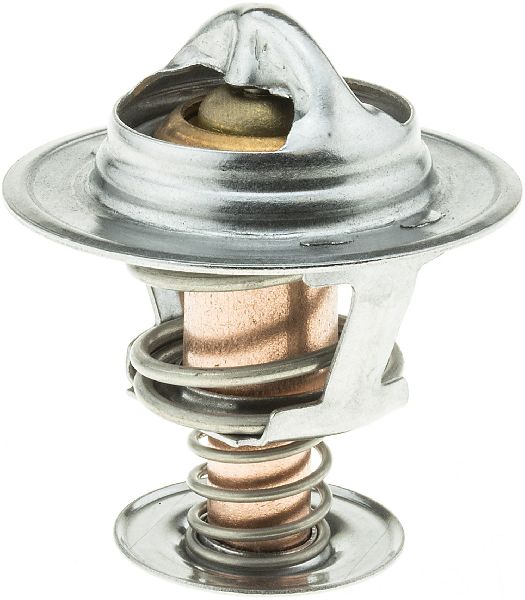

- Reliable Aftermarket: Gates is a well-regarded brand in the aftermarket for cooling system components, including thermostats. Their products are generally considered a good balance of quality and price.
- Budget Options: Brands like Motorad are widely available and can be a budget-friendly choice. However, some mechanics report mixed experiences with longevity compared to OEM or top-tier brands. Motorad is a large manufacturer that also produces parts for other brands, including some store brands.
Pro Tip: Always replace the thermostat gasket or O-ring at the same time as the thermostat to prevent leaks. Also, ensure the new thermostat has a "jiggle pin" or air bleeder and that it is installed in the 12 o'clock (top) position to help bleed air from the cooling system.
Replacement Cost
Replacing the thermostat on a 1996-2000 RAV4 is an affordable repair, whether you do it yourself or take it to a shop.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Thermostat | $10 - $28 |
| New OEM Thermostat | $22 - $35 |
| Shop Labor | $90 - $180 |
| Total (Shop Repair) | $110 - $215 |
Frequently Asked Questions
Where is the thermostat located on a 1996-2000 RAV4?
The thermostat is located on the engine block where the lower radiator hose connects. You will need to follow the large hose from the bottom of the radiator to the engine. It is housed inside a small metal cover held on by two 10mm nuts. To access it, you will likely need to remove the oil filter first.
Is replacing the thermostat a DIY job?
Yes, for most home mechanics with basic tools, this is a feasible DIY job. 🎬 Watch this step-by-step guide to replacing a Toyota thermostat It involves draining some coolant, removing the oil filter for access, unbolting the housing, swapping the thermostat and gasket, and then refilling and bleeding the cooling system. The most difficult part is often reaching the lower nut on the thermostat housing due to tight space.
What temperature thermostat do I need for my RAV4?
You should use a thermostat with the OEM specified temperature rating, which is 180°F (82°C). Using a thermostat with a different temperature rating can negatively affect engine performance and fuel economy.
Are there any recalls for the 1996-2000 RAV4 thermostat?
No, there are no recalls or common Technical Service Bulletins (TSBs) specifically related to the engine coolant thermostat for the 1996-2000 Toyota RAV4. There was a safety recall for the driver's side airbag on 1998-2000 models, but it is unrelated to the cooling system.
Helpful Videos
![How to Fix TOYOTA P0125 Engine Code in 3 Minutes [2 DIY Methods / Only $7.39]](https://img.youtube.com/vi/bgeGXKnUGJg/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 90916-03084 90916-A3003
Opening Temperature: 180°F (82°C)
