A Guide to the Starter for the 1996-2000 Toyota RAV4
Here is what you need to know when your first-generation RAV4 clicks but refuses to start.
- The most common failure symptom is a single loud click with no crank, which points directly to the starter solenoid contacts.
- For this vehicle's age, a new aftermarket starter provides the best combination of cost, reliability, and warranty.
- Replacement is a feasible DIY job, requiring removal of the battery and air intake assembly for access.
- Always confirm your battery is healthy and terminals are clean before condemning the starter, as symptoms can be similar.
Is Your RAV4 Starter Failing?
The starter on the first-generation Toyota RAV4 is known to be durable, but after 20+ years, it's a common part to fail. The symptoms are usually easy to spot. Paying attention to these signs can help you avoid getting stuck.
The Classic Toyota "Click, No Start"
The most common failure on these RAV4s is very specific. You turn the key, all the lights on the dashboard come on, you hear a single, loud "CLICK" from under the hood, but the engine doesn't crank. This almost always points to worn copper contacts inside the starter solenoid. 🎬 See how to replace those worn-out internal starter contacts. The solenoid is getting power, but it can't pass that power to the starter motor itself.
Other Common Symptoms
- Intermittent Starting: The car starts perfectly one day and then refuses to crank the next. This can be an early sign of failing contacts or worn brushes in the starter motor.
- Slow Cranking: When you turn the key, the engine turns over very slowly, as if the battery is weak. While a weak battery is a possible cause, a failing starter motor can also draw too much power and cause this symptom.
- Grinding or Whirring Noise: If you hear a grinding sound when trying to start the engine, it could mean the starter gear is not meshing correctly with the engine's flywheel. A high-pitched whining noise after the engine has started could mean the starter is not disengaging.
- No Sound at All: You turn the key and nothing happens. This can indicate a completely dead starter, but you should check your battery connections and starter relay first. 🎬 Watch: How to diagnose and repair your RAV4 starter motor.
Known Issue: Solenoid Contacts
For the 1996-2000 RAV4, the internal contacts of the starter solenoid are a known weak point that wears out over time. While some owners rebuild the solenoid with new contacts, replacing the entire starter assembly with a new aftermarket unit is often a faster and more reliable long-term repair, especially considering the vehicle's age.
Choosing a New Aftermarket Starter
For a 1996-2000 RAV4, buying a brand-new aftermarket starter is usually the best choice. It offers a balance of reliability and cost. The original starter was made by Denso, but a new OEM Denso starter from a dealer can be very expensive. Remanufactured parts can be a gamble, with quality varying greatly between brands and even between individual units. A new aftermarket part from a reputable brand like BBB Industries or Remy will have all-new components and a good warranty, often for a price similar to or less than a remanufactured unit.
Pro Tip: Check Your Battery First!
Many starter failure symptoms, like slow cranking or a clicking sound, can also be caused by a weak or dead battery, or by corroded battery terminals. Before you buy a new starter, make sure your battery is fully charged and the terminals are clean and tight. This simple check can save you time and money.
Starter Replacement Cost for 1996-2000 Toyota RAV4
The cost to replace the starter can be broken down into parts and labor. The job is straightforward for a mechanic and is also a manageable DIY project for a confident owner.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $97 - $189 |
| Shop Labor | $150 - $300 |
| Total Professional Replacement | $247 - $489 |
Frequently Asked Questions (FAQ)
Where is the starter located on a 1996-2000 RAV4?
The starter is located on the top of the transmission, underneath the air filter housing. To get to it, you will need to remove the battery, the battery tray, and the air cleaner assembly.
Is replacing the RAV4 starter a difficult job?
For a DIYer with a basic set of tools, this is a manageable job. Access is a bit tight, but it doesn't require lifting the vehicle. The process involves removing the airbox and battery to get clear access to the two bolts holding the starter. Expect it to take 1-2 hours.
🎬 Watch this step-by-step walkthrough for removing the starter motor.Are there any recalls on the starter for this RAV4?
No. There are no safety recalls or major Technical Service Bulletins (TSBs) from Toyota or the NHTSA regarding the starter motor for the 1996-2000 Toyota RAV4.
Should I buy a new or remanufactured starter?
For this vehicle, a new, high-quality aftermarket starter is generally the recommended option. The price is competitive with remanufactured units, but you get all-new components and avoid the risk of a poorly rebuilt part.
Helpful Videos
Technical Specifications
OEM Part Numbers: 28100-74140 28100-74270

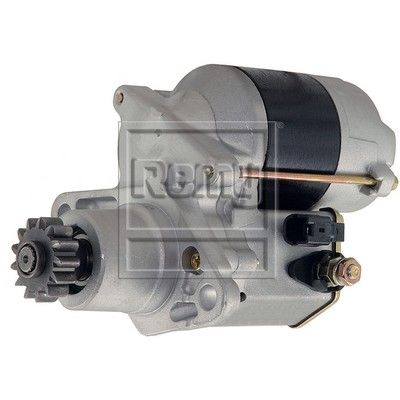

The original starter is a 1.4kW gear reduction type made by Nippondenso (Denso). It typically has 13 teeth on the pinion gear. Aftermarket replacements should match these specifications for proper fit and function.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
