A Guide to the Vehicle Speed Sensor for 1996-2000 Toyota RAV4
Fix your RAV4's jumpy speedometer and erratic shifting by understanding this critical sensor.
- A bad VSS on a 1996-2000 RAV4 most commonly causes an erratic speedometer and poor automatic transmission shifting.
- The sensor is located on the transmission housing and is a simple, one-bolt replacement suitable for DIY repair.
- The most common fault code triggered by a failing VSS is P0500.
- Choosing a premium aftermarket brand like NGK, Standard Ignition, or Hella provides OEM-like quality without the high dealer price tag.
Understanding Vehicle Speed Sensor Failure in Your RAV4
If your first-generation RAV4 is experiencing strange shifting behavior or speedometer problems, a failing Vehicle Speed Sensor (VSS) is a likely culprit. This sensor is the main source of speed data for the vehicle's computer. When it fails, it can cause a number of noticeable and frustrating issues. Fortunately, it's a straightforward part to diagnose and replace.
🎬 Watch how to test if your speed sensor has failedSymptoms of a Bad VSS
A bad speed sensor on a 1996-2000 RAV4 will usually make itself known through one or more of the following symptoms:
- Erratic or Dead Speedometer: The speedometer needle may jump around, read an incorrect speed, or not move at all.
- Harsh or Incorrect Shifting (Automatic Transmission): The transmission may shift hard, at the wrong times, or seem to get stuck in one gear because it doesn't know how fast the vehicle is moving.
- Cruise Control Not Working: The cruise control system relies on a steady speed signal from the VSS to function. If the signal is gone, the cruise control will not engage.
- Check Engine Light: A faulty VSS will often trigger the Check Engine Light and store a diagnostic trouble code, most commonly P0500 (Vehicle Speed Sensor 'A' Malfunction).
ABS Light vs. Check Engine Light
It's important to distinguish between the Vehicle Speed Sensor (VSS) and the ABS wheel speed sensors. The VSS is on the transmission and primarily controls the speedometer and shifting. The ABS sensors are at each wheel and are used for the anti-lock braking system. A VSS failure typically illuminates the Check Engine Light, while an ABS sensor failure 🎬 Learn more about common symptoms of a bad speed sensor will turn on the ABS warning light.
Choosing the Right Aftermarket Speed Sensor
When replacing the VSS, you don't have to buy an expensive OEM part from the dealer. Many aftermarket brands offer quality replacements. However, quality can vary, so it's wise to choose a reputable brand. Cheap, unproven sensors can fail prematurely or provide inaccurate readings.
Here’s a breakdown of available brands into tiers:
- Premium Aftermarket (Recommended): Brands like NGK/NTK and Standard Ignition (SMP) have a strong reputation for producing reliable sensors that meet or exceed original specifications. Hella is another brand known for making OEM-quality electronic parts. These are your best bet for a long-lasting repair.
- Mid-Grade Aftermarket: Brands such as Walker Products and Holstein offer a good balance of quality and value. They are generally a reliable choice for most owners.
- Economy Aftermarket: Brands like URO Parts, Facet, and Global Parts are budget-friendly options. While they can get your vehicle back on the road, some user reviews suggest their quality and longevity can be inconsistent. They may be suitable for a quick fix, but a premium brand is recommended for peace of mind.
Cost of Replacing a 1996-2000 RAV4 Vehicle Speed Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM | $298 - $428 |
| New Aftermarket | $28 - $388 |
| Shop Labor | $75 - $150 |
DIY Installation Tip
The VSS is located on top of the transmission/transaxle housing and is held in by a single 10mm bolt. Access can be a little tight, but it's a simple part to replace. After unplugging the electrical connector and removing the bolt, you may need to gently twist the sensor with pliers to break the seal. When installing the new sensor, apply a small amount of clean transmission fluid to the new O-ring to help it slide in and seal properly.
Frequently Asked Questions
Can I just clean my old speed sensor?
While some sensor issues can be caused by heavy contamination, the VSS on the RAV4 typically fails internally due to an electrical fault. Cleaning the outside of the sensor is unlikely to fix the problem if it has already failed. Replacement is the correct repair.
What is the P0500 trouble code?
P0500 is a generic OBD-II code that means the Powertrain Control Module (PCM) has detected an erratic, incorrect, or missing signal from the Vehicle Speed Sensor. This is the most common code associated with a failed VSS on this RAV4.
Is the Vehicle Speed Sensor the same as an ABS sensor?
No. The Vehicle Speed Sensor (VSS) is mounted on the transmission and measures overall vehicle speed for the speedometer and transmission control. The ABS sensors (also called wheel speed sensors) are located at each wheel and measure individual wheel rotation for the Anti-lock Brake System.
Why is there such a large price difference in aftermarket sensors?
The price difference reflects the quality of the internal electronics, materials used for the housing, and the level of testing and quality control performed by the manufacturer. Premium brands invest more in these areas to ensure their parts perform like the original and last longer.
Helpful Videos
Technical Specifications
OEM Part Numbers: 83181-12040

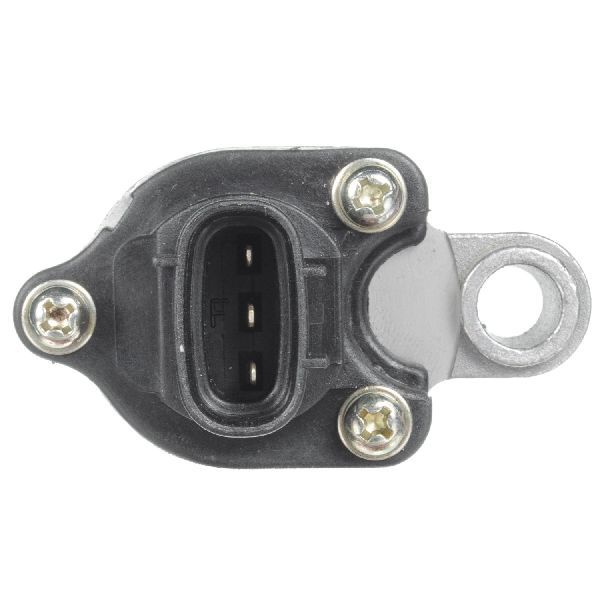

A 3-pin magnetic pulse generator sensor that mounts to the automatic transaxle housing.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
