A Comprehensive Guide to the 1996-2001 Audi A4 Camshaft Position Sensor
Resolve stalling, rough idling, and no-start issues by understanding and choosing the right camshaft position sensor for your B5 Audi A4.
- A failing camshaft position sensor is a common issue on the B5 A4 that can cause stalling, no-starts, and a rough idle.
- For a reliable, long-term repair, choose an OEM-quality brand like Bosch, which was an original supplier for Audi.
- The replacement is a simple DIY job for most owners, especially on the 1.8T engine, requiring only basic tools and about 30 minutes.
- Before replacing the sensor, check for oil leaks from the valve cover, as leaking oil is a primary cause of sensor failure.
Understanding the Camshaft Position Sensor in Your A4
A failing camshaft position sensor in your 1996-2001 Audi A4 can cause a range of frustrating problems, from a simple Check Engine Light to the car refusing to start at all. This sensor, often called a Hall Sender by Audi, is vital for engine timing. It tells the car's computer the exact position of the camshaft, which allows for correct fuel injection and ignition timing. When it fails, the computer is essentially guessing, leading to poor performance.
Symptoms of a Failing Camshaft Position Sensor
If your A4 is experiencing any of the following issues, a faulty camshaft position sensor could be the culprit. Scanning the ECU for trouble codes is the best first step; codes like P0340, P0341, or P0343 often point directly to this sensor.
🎬 Watch: Troubleshooting Audi Hall Sender codes P0340 through P0345- Check Engine Light: This is often the first and most common sign of a problem.
- Engine Won't Start: The engine may crank but fail to start because the ECU can't get the timing signal it needs.
- Engine Stalling: The engine may stall unexpectedly while driving or at an idle, which can be a serious safety concern.
- Rough Idle and Misfires: Your car may shake, run unevenly, or misfire, especially when stopped. 🎬 See how to test and fix common camshaft sensor symptoms
- Poor Acceleration: The car may feel sluggish or lack power because the engine timing is off.
Oil Kills Sensors
A very common cause of premature sensor failure on the B5 A4 is an oil leak from the valve cover gasket or cam chain tensioner gasket. Oil seeps down onto the sensor and its wiring, degrading the materials and causing a bad connection or short circuit. Before replacing the sensor, inspect the area for oil leaks and address those first to avoid repeat failures.
Choosing the Right Aftermarket Sensor
When it comes to engine sensors for a German car, quality matters. While saving money is tempting, a cheap, unreliable sensor can fail quickly, leaving you stranded and replacing the part again. Here’s a breakdown of aftermarket brand quality for your A4.
Tier 1: OEM-Quality Brands
These brands are often the original equipment manufacturers for Audi or are known for producing parts that meet or exceed OEM specifications. For the most reliable repair, choose from this tier.
- Bosch: Bosch is a very common original equipment supplier for Audi and is widely considered the go-to replacement for this part. Fit and function will be identical to the part your car came with from the factory.
- Hella: Another top-tier German brand with a strong reputation for quality electronics.
- Vemo: A reputable brand that produces a wide range of OEM-quality parts for European vehicles.
Tier 2: Reputable Aftermarket Brands
These brands offer a good balance of quality and value. They are a solid choice for a daily driver on a budget.
- Delphi: A well-known global parts manufacturer. While some users have reported issues with Delphi sensors on other applications, they are generally considered a reliable mid-grade option.
- Standard Ignition (SMP): A long-standing company that produces reliable replacement parts.
- Holstein: Known for producing quality sensors that are rigorously tested.

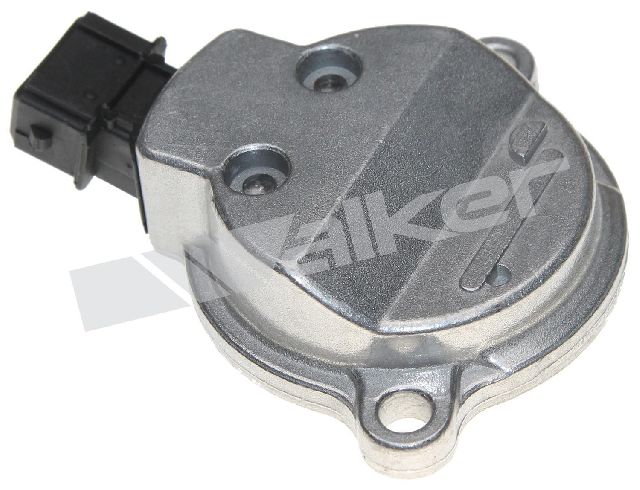

- Walker Products: A reputable manufacturer of engine management and fuel system components.
Tier 3: Economy Brands
These brands are the most affordable, but quality can be inconsistent. They may be a suitable option for a temporary fix or if budget is the absolute primary concern, but be aware that their lifespan may be shorter.
- URO Parts: Often the most budget-friendly option, but user reviews are mixed. Some parts work well, while others may have a higher failure rate.
- Dorman: Known for providing a wide range of aftermarket solutions, but quality can vary by part type.
- Facet, Spectra, Beck Arnley: These brands often fall into the value-oriented category. Beck Arnley is known for re-boxing parts from various manufacturers, so quality can be inconsistent.
Pro Tip: Check Your Engine Code
The 1996-2001 Audi A4 was available with different engines, most commonly the 1.8L Turbo and the 2.8L V6 (both 12v and 30v versions). The location and specific part number for the camshaft position sensor can vary between these engines. Always verify the part fits your specific engine before ordering. The 1.8T sensor is located at the front of the engine under the upper timing belt cover, while the 2.8L V6 sensor is typically at the rear of the driver's side cylinder head.
Cost of Replacing the Camshaft Position Sensor
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $21 - $136 |
| Shop Labor | $90 - $180 |
| Total Estimated Cost (DIY) | $21 - $136 |
| Total Estimated Cost (Shop) | $111 - $316 |
Frequently Asked Questions
Where is the camshaft position sensor located on my 1996-2001 A4?
The location depends on your engine. For the 1.8T engine, the sensor is located at the front of the engine, on the cylinder head, underneath the upper plastic timing belt cover. For the 2.8L V6 engine, the sensor (G40) is typically located on the rear of the driver's side (left bank) cylinder head.
Can I replace this part myself?
Yes, this is a very DIY-friendly job for many owners. On the 1.8T engine, it involves removing the upper timing belt cover and two 10mm bolts. The entire job can often be done in under 30 minutes with basic hand tools. The 2.8L V6 location can be tighter but is still accessible.
What happens if I don't replace a bad sensor?
Ignoring a failing camshaft position sensor can lead to more significant problems. You will experience progressively worse symptoms like stalling, poor fuel economy, and rough running. Eventually, the car may fail to start entirely, leaving you stranded. It can also potentially damage your catalytic converter over time due to unburned fuel.
🎬 Watch: 7 warning signs of a failing camshaft position sensorIs there a recall on the camshaft position sensor for this A4?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database shows no specific recalls for the camshaft position sensor on the 1996-2001 Audi A4. There was a recall for Takata airbags affecting some of these model years.
Helpful Videos
Technical Specifications
OEM Part Numbers: 058905161B 078905161A 078905161C
This is a 3-pin Hall effect sensor. The specific part number varies between the 1.8T and 2.8L V6 engines. Always verify fitment with your vehicle's engine code (e.g., AEB, ATW, AHA).
