Choosing a Spark Plug Wire Set for Your 1996-2001 Chevrolet Express 3500
Don't let failing spark plug wires sideline your work van; understand your options for a reliable fix.
- Accessing the spark plug wires requires removing the interior engine cover ('doghouse'), making the job more difficult than on a typical truck.
- For reliability and fit, ACDelco and Delphi are the recommended OE-quality choices for a stock vehicle.
- Always replace spark plugs and wires at the same time to save on labor and ensure a complete ignition system refresh.
- Due to high engine bay heat, consider wires with high-temperature silicone boots or adding separate heat shields for longevity.
Is It Time for New Spark Plug Wires?
On the 1996-2001 Chevrolet Express 3500, especially those with the hardworking 5.7L Vortec V8, spark plug wires live in a tough environment. Constant heat and vibration can cause the wire's insulation to crack and its internal conductor to break down. When this happens, you'll notice it in how your van drives. A failing set of wires can cause misfires, rough idling, hesitation when you accelerate, and a noticeable drop in fuel economy. In some cases, you might even hear a ticking or snapping sound from the engine bay as electricity arcs from a cracked wire to a metal engine part. If you ignore these signs, you risk damage to other expensive components, like the catalytic converter.
A Word on Replacement Difficulty
Replacing the spark plug wires on this van is more challenging than on other vehicles. Because the engine is tucked under the dashboard, you must first remove a large interior engine cover, often called the "doghouse," to gain access. This process involves removing trim panels and can be time-consuming. Some spark plugs, particularly the rear ones, are very difficult to reach. This job is feasible for a skilled DIYer, but the tight access makes it a frustrating job for many.
Choosing the Right Aftermarket Spark Plug Wire Set
When shopping for a new set, you'll find many brands. They can be grouped into tiers based on quality, materials, and price.
Brand Quality Tiers
- Premium OE-Style Brands (ACDelco, Delphi): ACDelco is the original equipment (OE) supplier for General Motors. Choosing ACDelco or Delphi wires is the closest you can get to installing the same parts your van had from the factory. These are excellent choices for owners who want proven reliability and a perfect fit without paying dealership prices.
- Quality Aftermarket Brands (NGK, Denso, Standard Motor Products): Brands like NGK and Denso are well-respected for their ignition components and are often OE suppliers for other vehicle manufacturers. They offer high-quality wire sets that meet or exceed OEM specifications and are a trusted alternative. Standard Motor Products (SMP) is another long-standing brand that produces reliable ignition parts.
- Performance Brands (MSD, Taylor Cable): These brands are known for high-performance applications. They often feature thicker 8mm or 8.5mm wires with lower resistance and enhanced heat protection. While they can be a good upgrade, especially if you've modified your engine, they are often overkill for a stock work van. However, their durable construction can be a benefit in the high-heat environment of the Express engine bay.
- Economy Brands (Prenco, Walker, Store Brands): These are the most budget-friendly options. While they will get the job done, they may not have the same durability or lifespan as the premium brands. For a work vehicle like the Express 3500, investing in a higher-quality set is often a better long-term value.
Pro Tip: When replacing the wires, it's a good idea to apply dielectric grease to the inside of the boots. This helps seal out moisture, prevents the boots from getting stuck on the spark plugs, and makes future replacements easier. Many quality wire sets include a small packet of this grease.
Cost of New Aftermarket Spark Plug Wire Sets
| Quality Tier | Estimated Price Range | Notes |
|---|---|---|
| Premium OE-Style (ACDelco, Delphi) | $60 - $120 | Offers factory fit and proven durability. |
| Quality Aftermarket (NGK, Denso, Standard) | $50 - $100 | Excellent quality and performance, often meeting or exceeding OE specs. |
| Performance (MSD, Taylor Cable) | $80 - $275 | Durable, low-resistance wires. May offer benefits in heat resistance. |
| Economy (Store Brands, etc.) | $30 - $60 | A budget-friendly choice for immediate repairs, but may have a shorter lifespan. |
Frequently Asked Questions (FAQ)
Do I need to replace my spark plugs at the same time?
Yes, it is highly recommended. Spark plugs and wires wear out at a similar rate. Since accessing them is labor-intensive on the Express van, replacing both at the same time saves you from having to do the job twice. It ensures your entire ignition system is refreshed for optimal performance.
Are there any recalls for spark plug wires on this van?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database shows no specific recalls for spark plug wires on the 1996-2001 Chevrolet Express 3500.
What's the difference between 7mm and 8.5mm wires?
The measurement refers to the diameter of the wire's outer jacket. Thicker wires, like 8.5mm, often have better insulation and lower electrical resistance than standard 7mm wires. For a stock engine, standard wires are sufficient, but performance wires can offer added durability against heat and abrasion.
Can I just replace the one bad wire?
While you can, it's not recommended. Spark plug wires degrade over time from heat and electrical cycles. If one has failed, the others are likely not far behind. Replacing them as a complete set ensures consistent performance and prevents you from having to repeat this difficult repair soon.
Technical Specifications

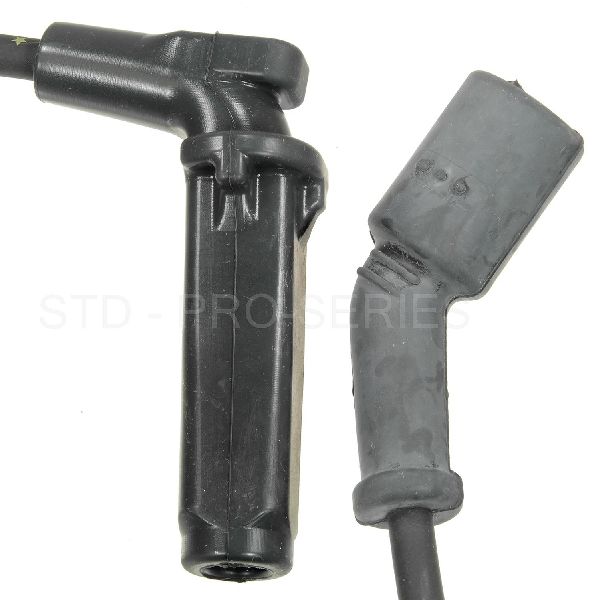

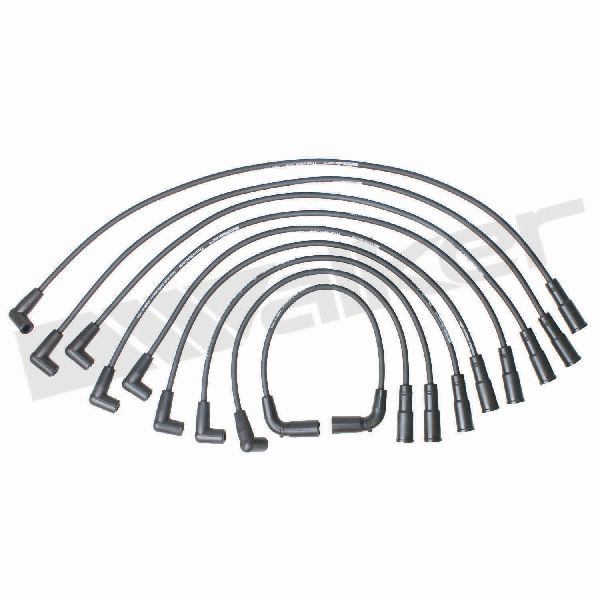

The 1996-2001 Chevrolet Express 3500 with a V8 engine uses a set of 8 spark plug wires. The wires connect the ignition coil packs to the spark plugs. Key features to look for are silicone insulation for heat resistance, a spiral core for RFI suppression, and correctly angled boots (typically 90-degree for the spark plug end) for proper fitment.
