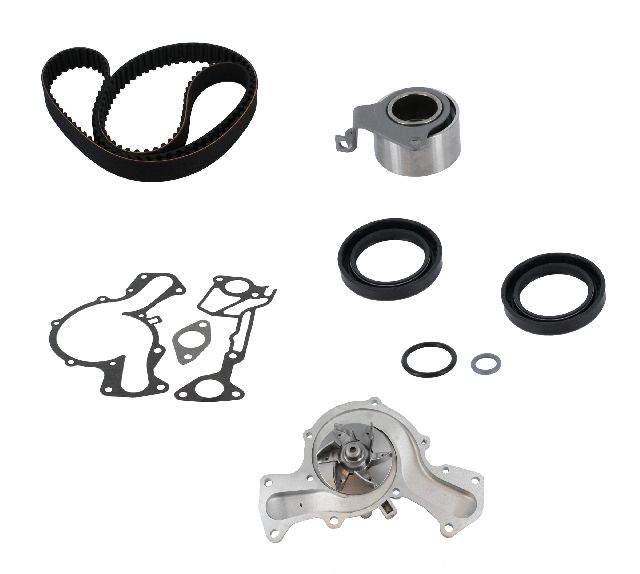

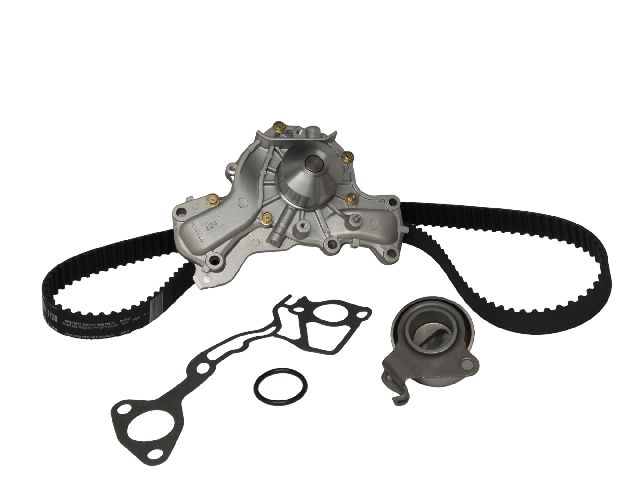

A Deep Dive into the 1996-2001 Dodge Caravan 3.0L V6 Timing Belt and Water Pump Kit
This guide is essential for any owner of a Caravan with the 3.0L V6, as a timing belt failure on this engine can be catastrophic.
- This part is ONLY for the 1996-2001 Dodge Caravan with the 3.0L V6 Mitsubishi engine; it will not fit the 3.3L or 3.8L.
- The 3.0L V6 is an interference engine, meaning a broken timing belt will cause catastrophic engine damage.
- Always replace the timing belt, water pump, tensioner, and idlers together as a complete kit to prevent premature failure and save on future labor costs.
- For this critical repair, using a premium brand kit from Gates, Continental, or Dayco is strongly recommended over budget options.
Is This The Right Part For Your Van?
This is the most important question. For the 1996-2001 Dodge Caravan, only models with the 3.0L SOHC V6 engine use a timing belt. This engine was manufactured by Mitsubishi. If your van has the more common 3.3L or 3.8L V6 engine, it uses a timing chain, which does not have a regular replacement schedule, and this kit will not fit your vehicle. Always confirm your engine size before purchasing parts.
Symptoms of a Failing Timing Belt or Water Pump
A timing belt can break without any prior warning. However, sometimes there are clues that the system is wearing out and needs attention.
- Ticking or Squealing Noises: A rhythmic ticking sound from the front of the engine can point to a worn belt. A high-pitched squeal or a grinding noise often means the bearings in the water pump, tensioner, or idler pulley are failing. 🎬 Watch: Hear what a failing timing belt sounds like
- Coolant Leaks: Puddles of green or orange coolant under the front, passenger side of your van are a classic sign of a failing water pump gasket or bearing.
- Engine Overheating: If the water pump fails, it can no longer circulate coolant. The engine temperature will rise quickly, especially when stopped or in slow traffic.
- Engine Won't Start: If the belt has broken, the engine will crank but will not start. Do not attempt to restart the engine, as this can cause further damage.
Interference Engine Warning
The 3.0L V6 is an interference engine. A broken timing belt will allow the pistons to strike the valves, leading to bent valves, damaged pistons, and potentially a ruined cylinder head. This is an extremely expensive repair, often costing more than the value of the vehicle. Timely replacement is not optional.
Choosing the Right Aftermarket Kit: Brand Quality
For a critical job like this, part quality is paramount. The cost of labor is high, so it's not worth saving a few dollars on a budget kit that might fail early. Always buy a complete kit that includes the belt, water pump, tensioner, and idler pulleys.
| Tier | Brands | Assessment |
|---|---|---|
| Premium | Gates, Continental, Dayco | These brands are well-regarded OEM suppliers for timing belts. Their belts are considered top quality. However, be aware that the hard parts in their kits (water pumps, tensioners) are sometimes sourced from other manufacturers and have received mixed reviews from professional mechanics and DIYers. Despite this, they are generally the most recommended choice. |
| Standard | GMB | GMB is an OE supplier for some manufacturers and can be a good value. However, some users have reported premature failures of their tensioners and bearings in forum discussions. It's a viable option if on a tighter budget, but carries slightly more risk than the premium brands. |
| Economy | Airtex, US Motor Works | These brands are typically the most affordable. However, they have a reputation for inconsistent quality, with some users reporting issues like poor fitment, incorrect gaskets, and early water pump failures. For a critical job on an interference engine, these brands are generally not recommended. |
Pro Tip: Replace Everything at Once
The water pump, tensioner, and idler pulleys have a similar service life to the timing belt. Since over half the cost of this job is labor, it is highly cost-effective to replace all these components from a single kit at the same time. 🎬 See how to properly install the new water pump This prevents you from having to pay for the same difficult job twice when another component fails down the road.
Cost to Replace the Timing Belt Kit with Water Pump
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit | $106.31 - $364.35 |
| Shop Labor | $420 - $620 |
| Total Estimated Cost | $526 - $985 |
Frequently Asked Questions (FAQ)
How often should I replace the timing belt on my 1996-2001 Caravan?
The manufacturer's recommendation is to inspect the belt around 60,000 miles and replace it between 90,000 and 100,000 miles. However, due to the age of these vehicles, the rubber belt degrades over time. It should be replaced every 7-10 years, regardless of mileage. If you have no service history, replace it immediately.
Can I just replace the belt and not the water pump or tensioner?
This is strongly discouraged. The water pump and tensioner are wear items that are difficult and expensive to access. Replacing them along with the belt is the most reliable and cost-effective approach to prevent a future failure that could ruin your engine.
Is this a difficult job to do myself?
Yes, this is an advanced-level repair. It requires removing an engine mount, using special tools to hold the camshafts, and precisely setting the engine timing. An error of even one tooth can cause the engine to run poorly or result in immediate engine damage. This job is best left to an experienced mechanic.
🎬 Watch: Full walkthrough of this advanced timing belt replacementAre there any recalls for the timing belt on my Caravan?
No. There have been no NHTSA safety recalls issued for the timing belt, water pump, or related components on the 1996-2001 Dodge Caravan.
Helpful Videos
Technical Specifications
This kit applies only to the 3.0L SOHC V6 (Mitsubishi) engine. It does not fit the 3.3L or 3.8L V6 (Chrysler) engines, which use a timing chain.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
